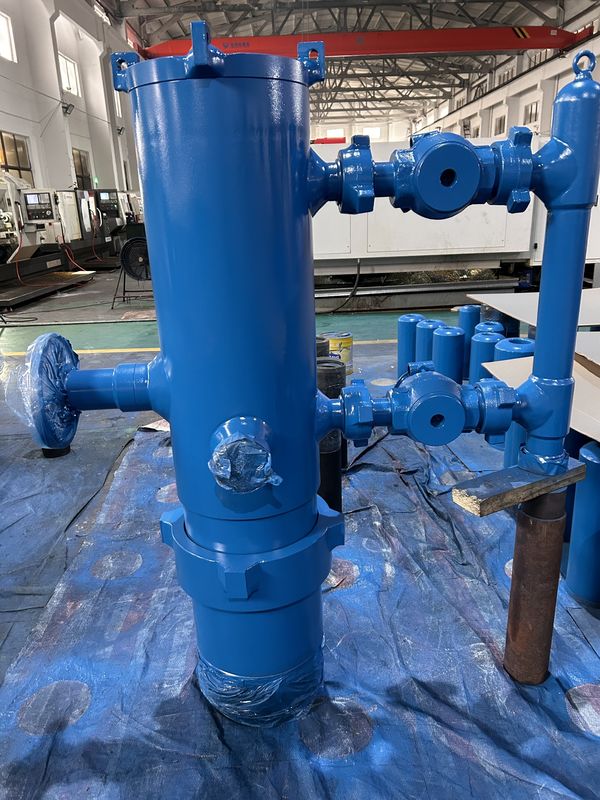

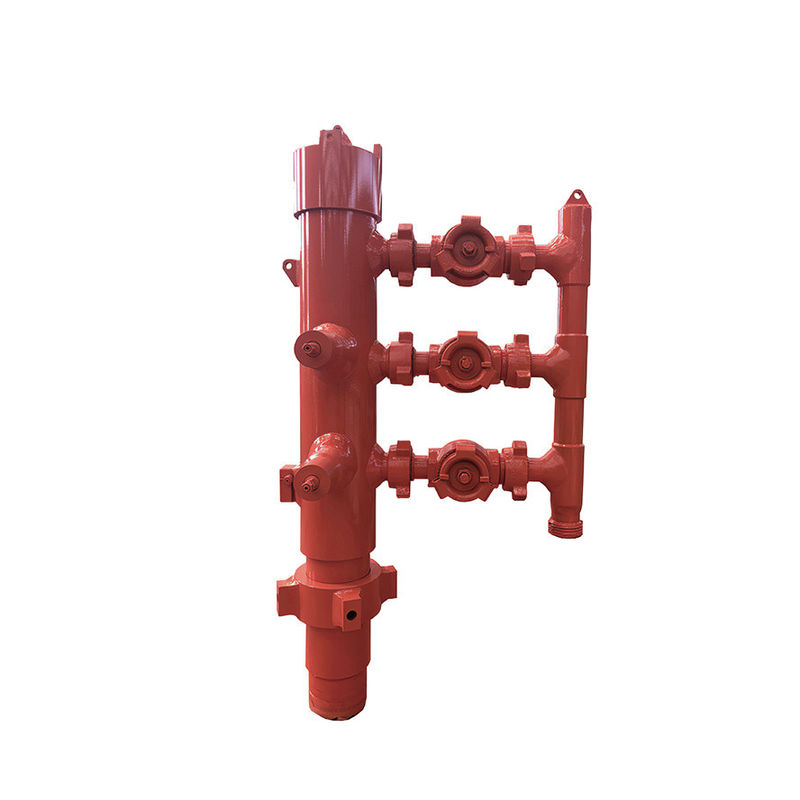

SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations

Basic Properties
Place of Origin: Jiangsu China
Brand Name: SWS
Certification: API 5CT
Model Number: 141-142
Trading Properties
Minimum Order Quantity: 1
Price: 1000-8000$/piece
Payment Terms: T/T, Western Union
Supply Ability: 3000 pieces/month
Tags

273mm Cementing Head

API Cementing Head

Oilfield Tool Cementing Heads
Specifications
Material: Steel peak working pressure (Mpa): 35
Maximum test pressure (Mpa): 54 Connect buckle type: LTC/BTC
Tube exchange interface: 2"1502 Union Ontology inner diameter (mm): Φ342
Specification: 13-3/8" Type: Double Plug
Length of upper stop cavity (mm): 450 Length of lower stop cavity (mm): 450
overall length (mm): 2120
High Light:

API 5CT certified cementing head

,

J55 BTC thread oilfield tool

,

double plug downhole cementing head
Product Description

SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 0

Products Description

A. Double Plug Cement Head
Specification
Φ140
(5 1/2”)
Φ168.3
(6 5/8“”)
Φ178
(7”)
Φ244.5
(9 5/8”)
Φ323.9
(12 3/4”)
Φ339.7
(13 3/8”)
peak working pressure (Mpa)
35
35
35
35
21
21
Maximum test pressure (Mpa)
54
54
54
54
35
35
Connect buckle type
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
Tube exchange interface
2"1502
Union
2"1502
Union
2"1502 Union
2"1502 Union
2"1502
Union
2"1502 Union
Ontology inner diameter (mm)
Φ142
Φ170
Φ181
Φ248
Φ327
Φ342
Length of upper stop cavity (mm)
425
425
425
450
450
450
Length of lower stop cavity (mm)
425
425
425
450
450
450
overall length (mm)
1900
1926
1926
2126
2120
2120
B. Single Plug Cement Head
specifications
Φ140(5 1/2”)
Φ178(7”)
Φ244.5(9 5/8”)
Φ339.7(13 3/8”)
peak working pressure (Mpa)
35
35
35
21
Maximum test pressure (Mpa)
50
50
50
35
Connect buckle type
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
Tube exchange interface
2"1502 Union
2"1502 Union
2"1502 Union
2"1502 Union
Ontology inner diameter (mm)
Φ142
Φ181
Φ248
Φ342
Length of upper stop cavity (mm)
425
425
450
450
overall length (mm)
1516
1526
1585
1593

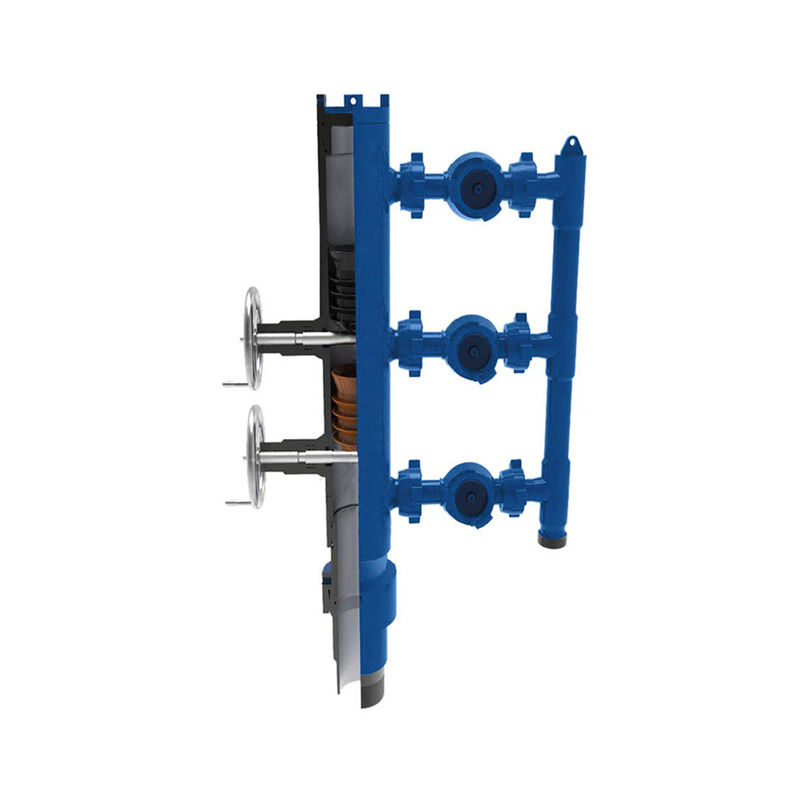

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.

Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.

SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 1



SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 2

SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 3



API certification document







SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 4

Factory production line



SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 5







SWS API 5CT Certified 13-3/8" 10.92mm J55 BTC Thread Double Plug Cementing Head Reliable Oilfield Tool for Downhole Operations 6

FAQ

Q1,When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get theprice, please tell us in your email so that we will regard you inquiry priority.

Q2,Could I have prices of your products?
A:Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

Q3,Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger quantity orders.

Q4,Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5,What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
