API 5CT Oilfield Cement Head Single Plug Cementing Head

API 5CT Oilfield Cement Head Single Plug Cementing Head

API 5CT Oilfield Cement Head

API 5CT Cementing Head

Single Plug Cementing Head

Place of Origin:

CHINA

Brand Name:

SWS

Model Number:

142 series double plug

Contact Us

Request A Quote
Product Details
Name:
Oilfield Tool
Series:
142
Type:
Oil Drilling Machine Parts
Function:
Cementing Connection
Applicable Industries:
Energy & Mining
Material:
Steel
Product Description

Api 5ct Oilfield Cementing Head Standard Single Plug Cementing Head For Cementing Equipment









Double plug cementing head



Heads capable of storing multiple plugs are preferred over those just carrying single plugs for operational convenience, as the use of more than one plug requires the opening of the head to insert a second (or even a third) plug after circulating the drilling fluid and launching the bottom plug. This allows not only the build-up of gels in the annulus, having an adverse effect on fluid displacement efficiency, but also cement-free fall. The risk of sticking the casing (pipe sticking) is also increased if reciprocation is stopped to allow the insertion of the additional plug (or two).



Cementing head is a manifold system that is installed on the top of the casing which allows the cement slurry to be pumped from the cement unit down any of the type of casing string. The cement head is also used for releasing the top and bottom cement plugs.



A “cement head” is screwed into the top casing collar or landing joint, depending on the type of casing cementing job. The discharge side of the downhole pump and the cement head are connected by a series of articulated or straight sections of high-pressure steel pipe, also known as “treating iron”

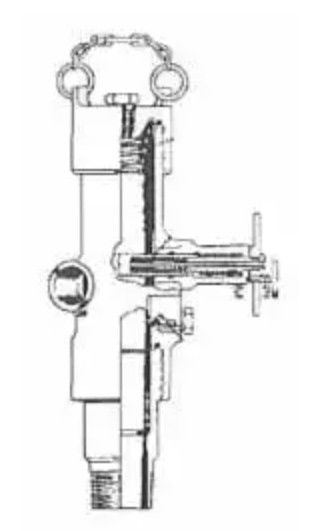

API 5CT Oilfield Cement Head Single Plug Cementing Head 0



API 5CT Oilfield Cement Head Single Plug Cementing Head 1



Technical Parameter



Specifications, mm

Φ139.7

Φ177.8

Φ193.7

Φ244.5

Φ273

Φ339.7

Overall-length,mm

1950

2020

2020

2360

2360

2440

Manifold

2'' Union

I.D. of plug container, mm

Φ125

Φ160

Φ175

Φ225

Φ250

Φ320

Length of plug container, mm

400

450

450

550

550

600

Working Pressure, Mpa

35.5

35.5

35.5

35.5

35

35



FAQ

1. Why you choose us ?

We control the quality of the products very strictly, there are special people for the quality.
If you got lower price from other supplier ,we will pay back twice to customers about the higher price.

2. How long is your delivery time?

According to the quantity.Generally within 2-7 days if in stock.And 15-20 days if not in stock.

3. What is your payment terms?
A: By T/T 30% in advance ,and 70% before delivery.
B:100% L/C at sight.
C:By T/T 30% in advance,and 70% L/C at sight.
4. Do you provide samples ? Is it free?
Yes, we offer the sample for free but do not pay for the cost of freight.
5. What if the customer is not satisfied?
If there is a problem with the product,we take full responsibility.
If there is a problem in the transportation process,we will help you to solve it.
