7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head

Place of Origin:

Jiangsu China

Brand Name:

SWS

Certification:

API 5CT

Contact Us

Request A Quote
Product Details
Material:
Steel
Peak Working Pressure (Mpa):
35
Maximum Test Pressure (Mpa):
54
Connect Buckle Type:
LTC/BTC
Tube Exchange Interface:
2"1502 Union
Ontology Inner Diameter (mm):
Φ181
Specification:
5-1/2''~13/3/8''
Type:
Double Plug
Length Of Upper Stop Cavity (mm):
425
Length Of Lower Stop Cavity (mm):
425
Overall Length (mm):
1926
Product Description

COMPANY PROFILE

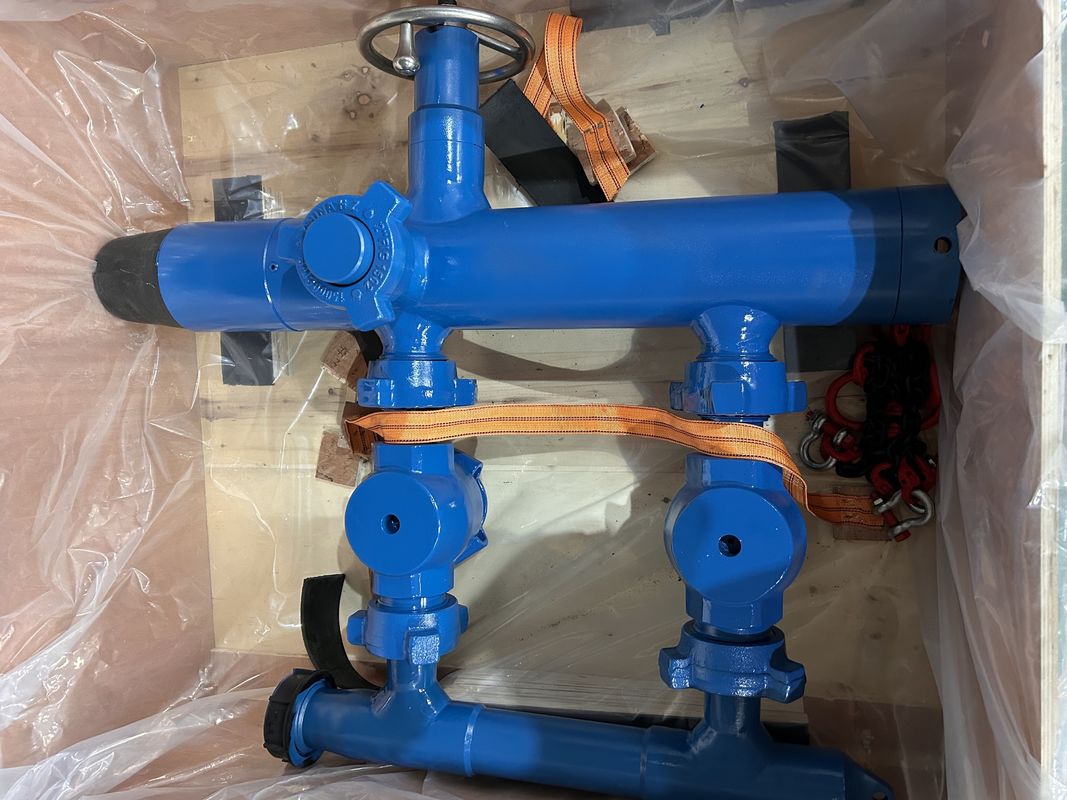

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 0

Jiangsu Service Petroleum Technology Co., Ltd. is committed to researching and supplying high-level petroleum downhole tools and drilling equipments, and has obtained the certificates of API Q1, API 5CT, ISO9001 quality system certification, 14001 environmental system certification, and 18001 occupational health system certification.

With over 15 years of manufacturing experience and successful collaborations with renowned oil extraction companies such as China National Petroleum Corporation, Sinopec, Shell, Mobil, and Husky Energy, we have established a reputation for delivering oil casing accessories that surpass industry standards, meeting the demanding requirements of challenging oilfield operations.

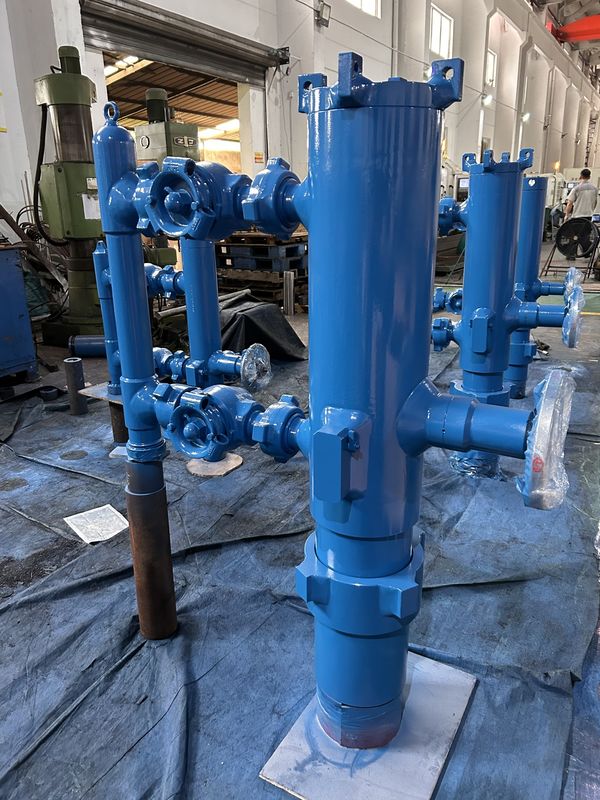

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 1

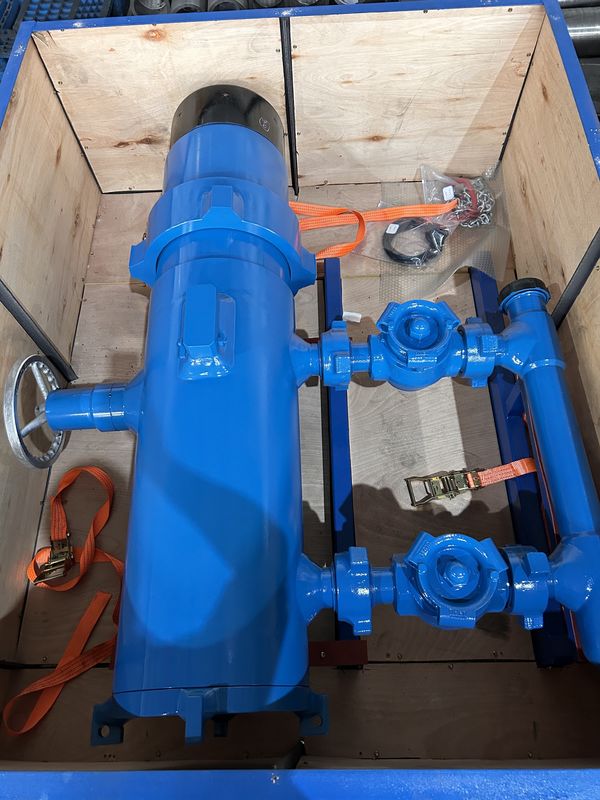

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 2

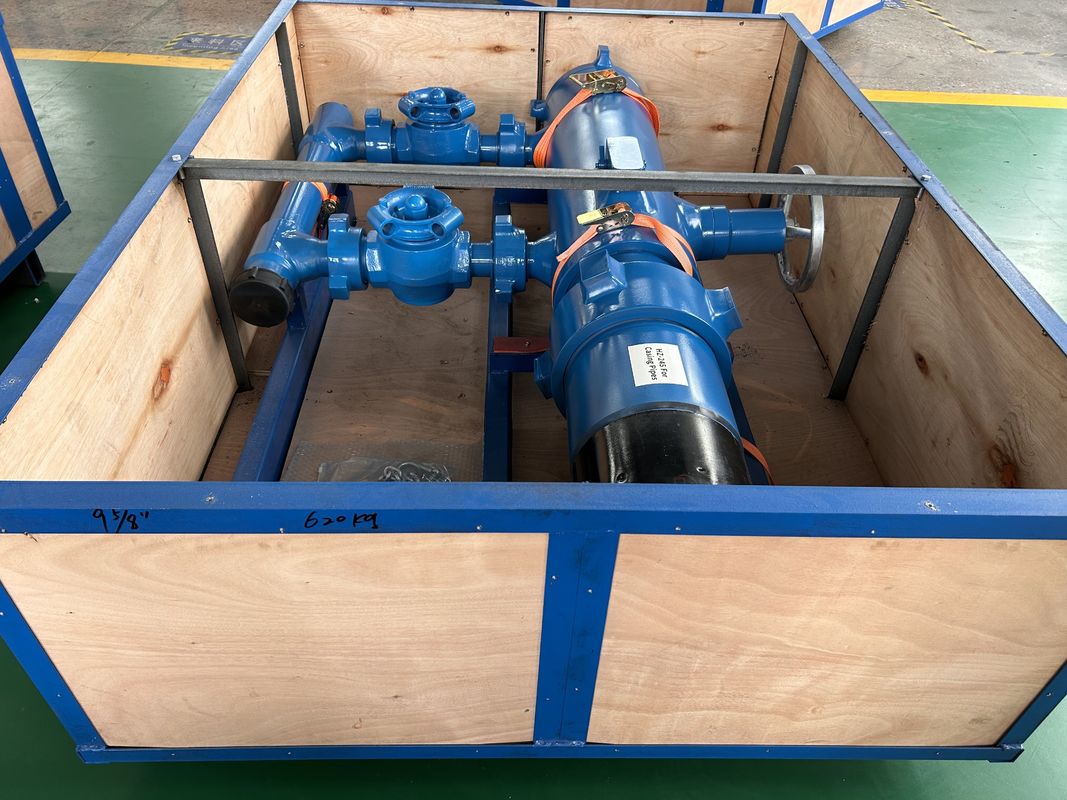

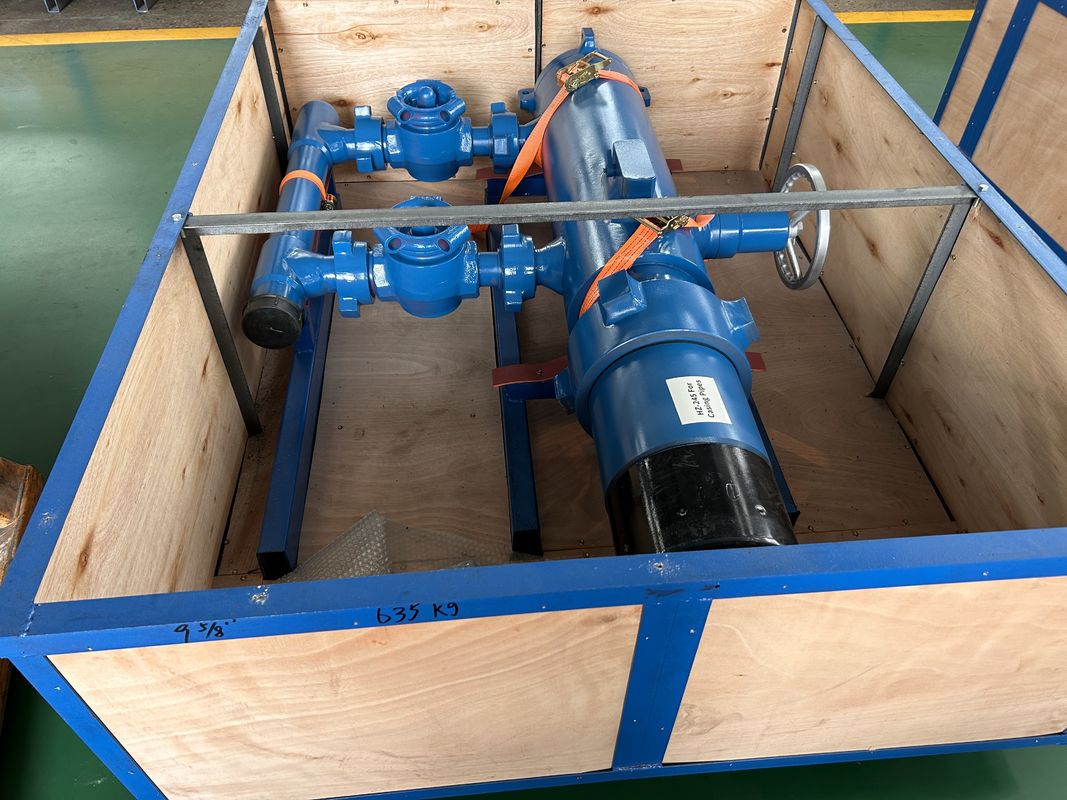

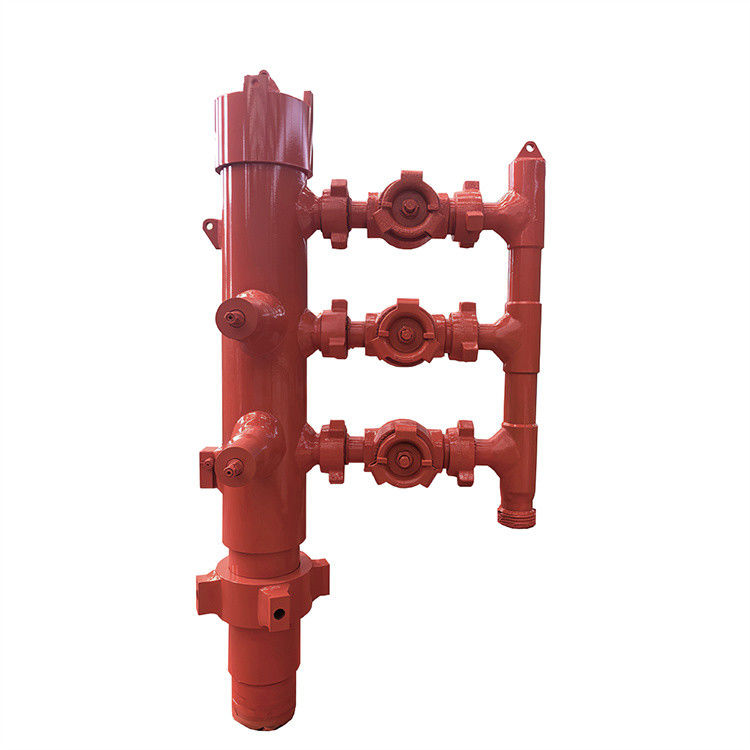

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 37'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 47'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 57'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 67'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 77'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 8





Products Description

A. Double Plug Cement Head
Specification
Φ140
(5 1/2”)
Φ168.3
(6 5/8“”)
Φ178
(7”)
Φ244.5
(9 5/8”)
Φ323.9
(12 3/4”)
Φ339.7
(13 3/8”)
peak working pressure (Mpa)
35
35
35
35
21
21
Maximum test pressure (Mpa)
54
54
54
54
35
35
Connect buckle type
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
Tube exchange interface
2"1502
Union
2"1502
Union
2"1502 Union
2"1502 Union
2"1502
Union
2"1502 Union
Ontology inner diameter (mm)
Φ142
Φ170
Φ181
Φ248
Φ327
Φ342
Length of upper stop cavity (mm)
425
425
425
450
450
450
Length of lower stop cavity (mm)
425
425
425
450
450
450
overall length (mm)
1900
1926
1926
2126
2120
2120
B. Single Plug Cement Head
specifications
Φ140(5 1/2”)
Φ178(7”)
Φ244.5(9 5/8”)
Φ339.7(13 3/8”)
peak working pressure (Mpa)
35
35
35
21
Maximum test pressure (Mpa)
50
50
50
35
Connect buckle type
LTC/BTC
LTC/BTC
LTC/BTC
LTC/BTC
Tube exchange interface
2"1502 Union
2"1502 Union
2"1502 Union
2"1502 Union
Ontology inner diameter (mm)
Φ142
Φ181
Φ248
Φ342
Length of upper stop cavity (mm)
425
425
450
450
overall length (mm)
1516
1526
1585
1593

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.

Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 97'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 10

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 11

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 12

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 13

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 14

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 15

7'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure 54Mpa Test Pressure Double Plug Cementing Head 16
