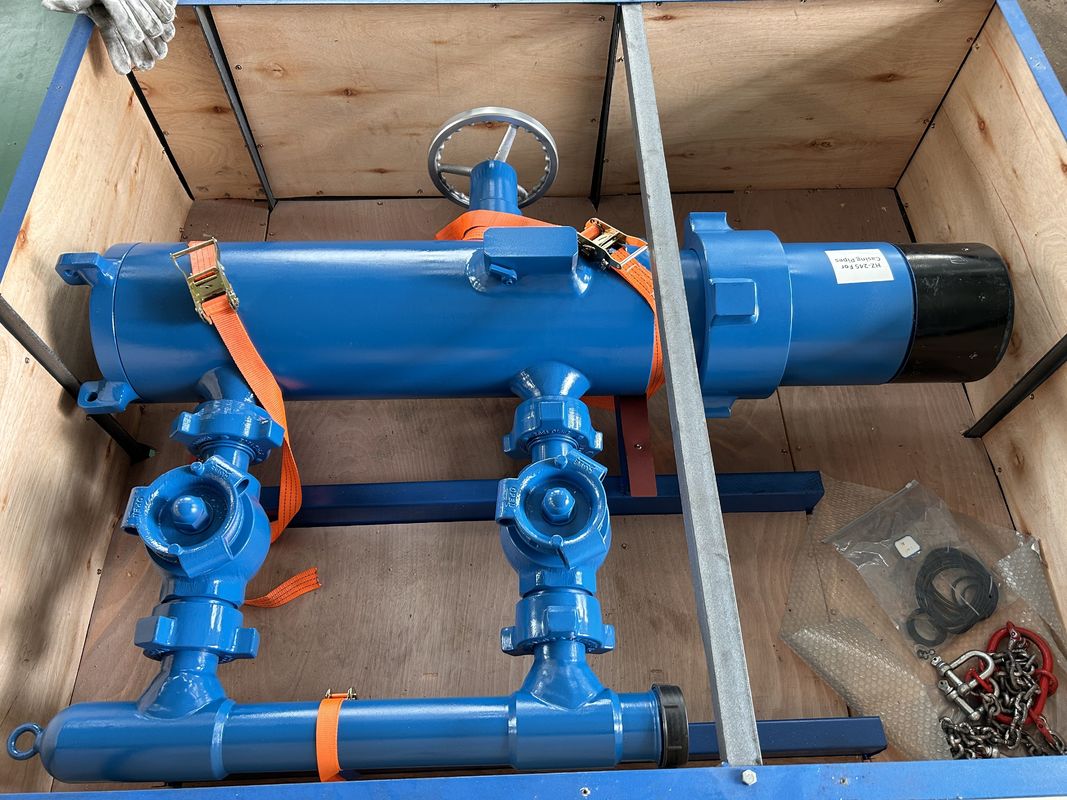

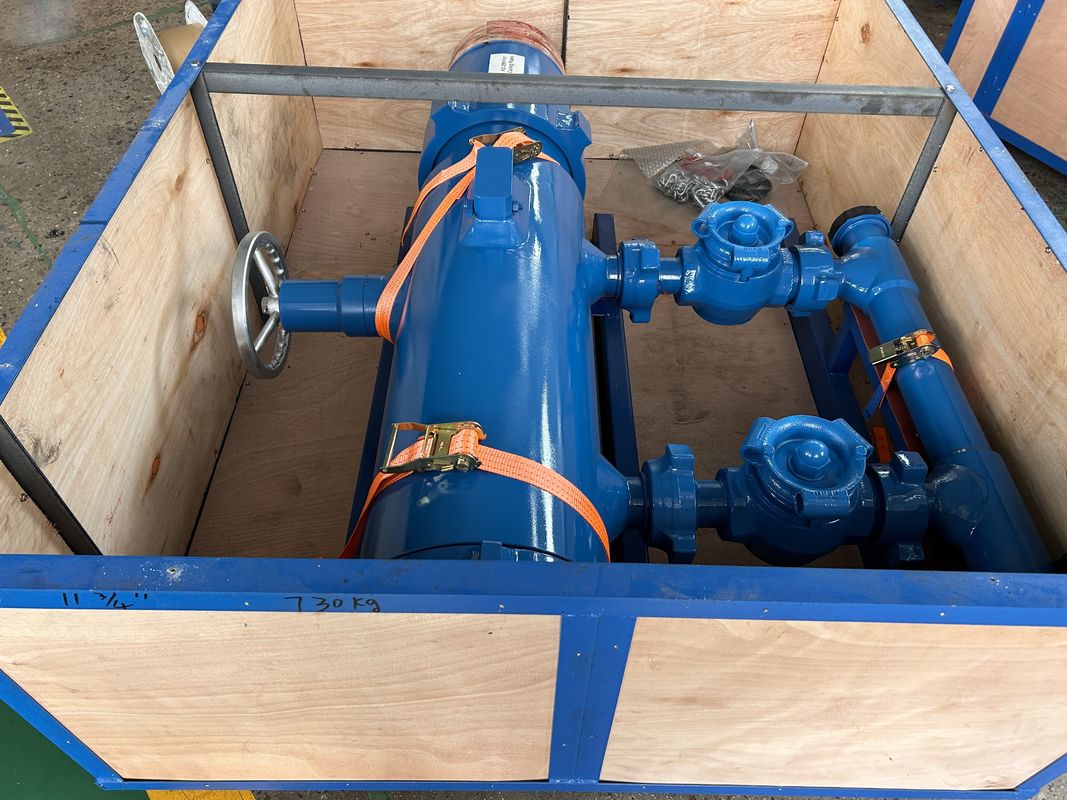

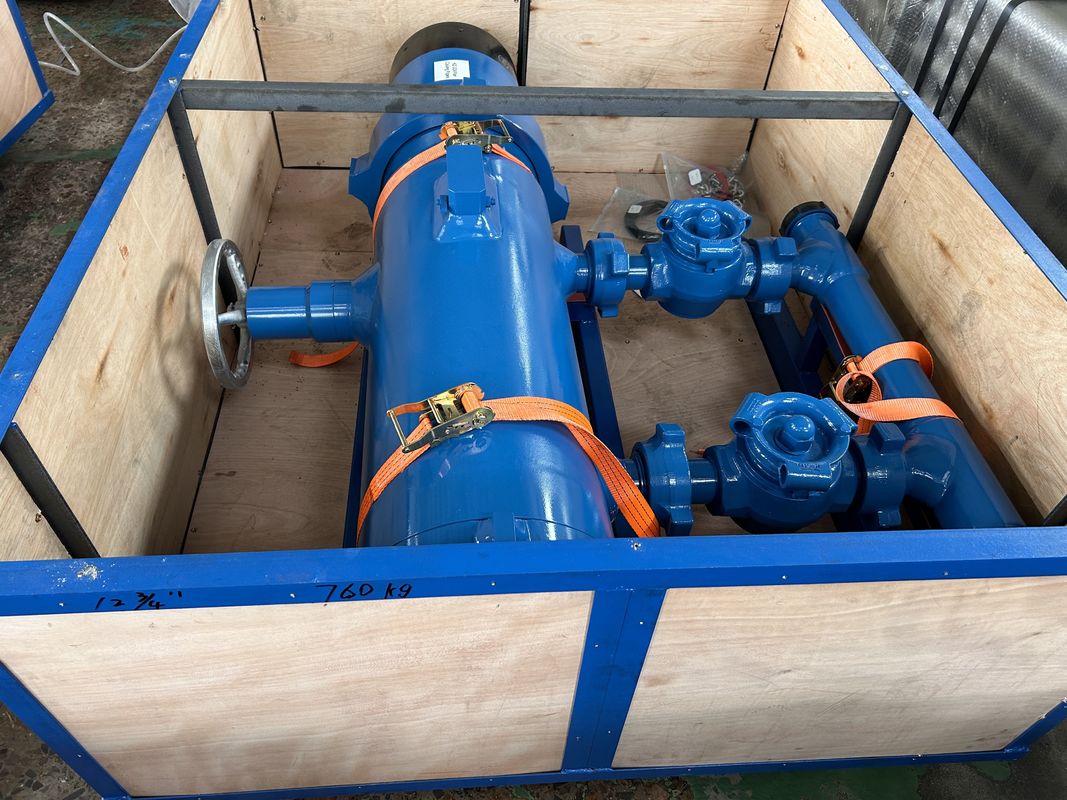

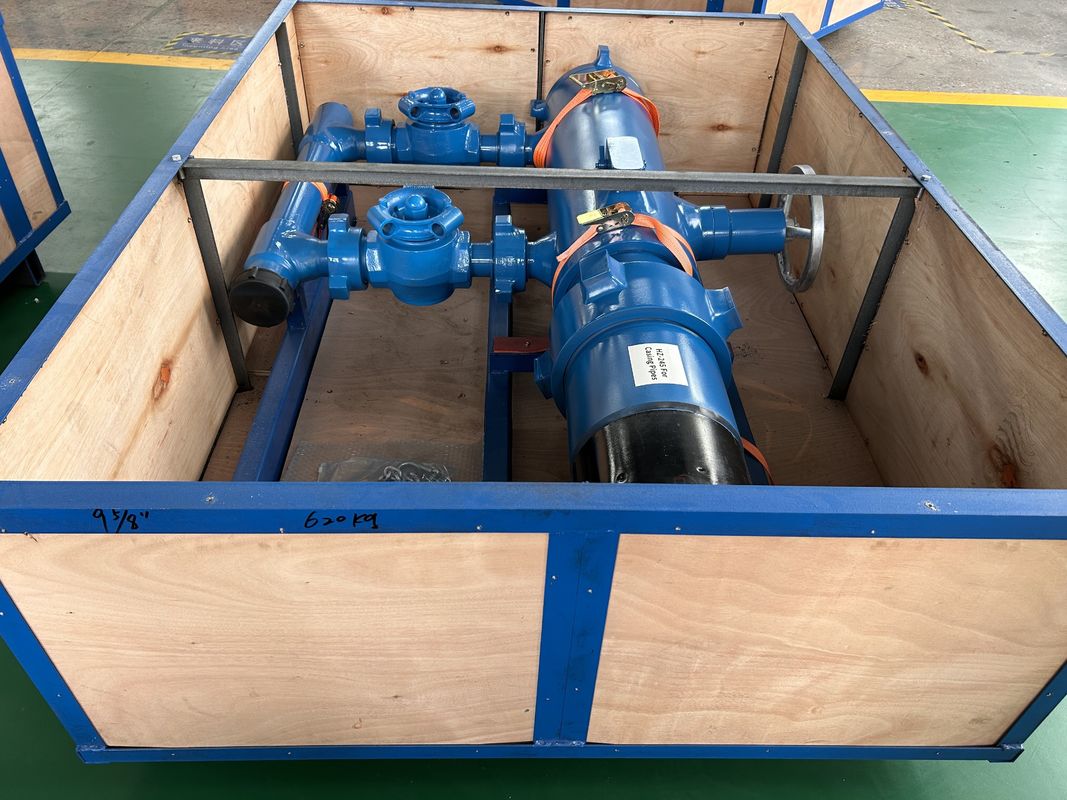

13-3/8'' API Casing BTC Buckle connected 35Mpa Working Pressure Double Plug Cementing Head With Wooden Packing 810KG
| Material: | Steel | peak working pressure (Mpa): | 35 |
| Maximum test pressure (Mpa): | 54 | Connect buckle type: | LTC/BTC |
| Tube exchange interface: | 2"1502 Union | Ontology inner diameter (mm): | Φ342 |
| Specification: | 5-1/2''~13/3/8'' | Type: | Double Plug |
| Length of upper stop cavity (mm): | 450 | Length of lower stop cavity (mm): | 450 |
| overall length (mm): | 2120 | ||
| High Light: | API Casing BTC Buckle cementing head,35Mpa working pressure cementing head,double plug cementing head with wooden packing |
||
COMPANY PROFILE
Jiangsu Service Petroleum Technology Co., Ltd. is committed to researching and supplying high-level petroleum downhole tools and drilling equipments, and has obtained the certificates of API Q1, API 5CT, ISO9001 quality system certification, 14001 environmental system certification, and 18001 occupational health system certification.
With over 15 years of manufacturing experience and successful collaborations with renowned oil extraction companies such as China National Petroleum Corporation, Sinopec, Shell, Mobil, and Husky Energy, we have established a reputation for delivering oil casing accessories that surpass industry standards, meeting the demanding requirements of challenging oilfield operations.
Products Description

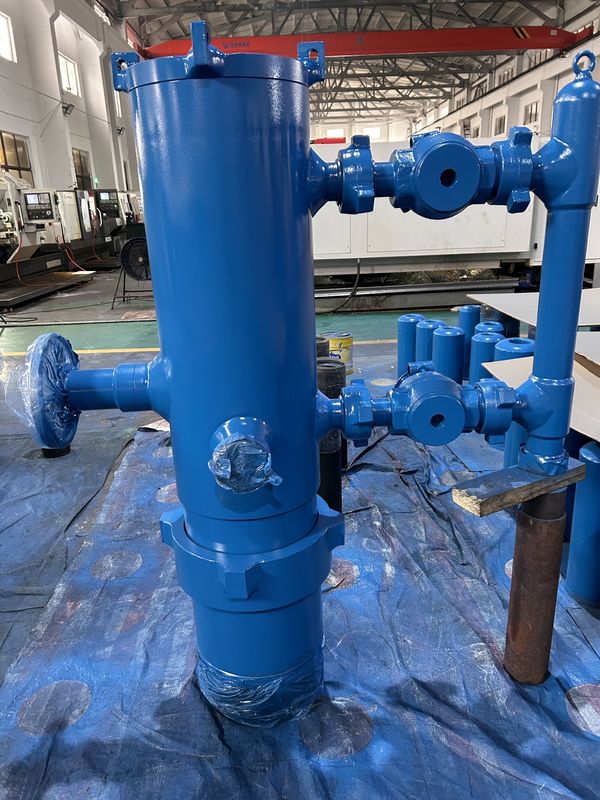

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.
Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.
FAQ
Q1,When can I get the price?
