AISI 4145H Casing Oilfield Cementing Tools Oilfield Cementing Units Head

AISI 4145H Casing Oilfield Cementing Tools Oilfield Cementing Units Head

Casing Oilfield Cementing Tools

Oilfield Cementing Units Head

AISI 4145H Cementing Head

Place of Origin:


Brand Name:


Model Number:

142 series double plug

Contact Us

Request A Quote
Product Details
Oilfield Tool
Oil Drilling Machine Parts
Cementing Connection
Applicable Industries:
Energy & Mining
Product Description

Cementing Head With Quick Change Adapter For Preventing Cement Pollution Cement Head High Pressure Manifold


Oil Cementing Tool Double Plug Cement Head Cement Head For Casing Manifold Cementing Head


1. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing. It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads.

2. Double balance pipe is developed.

3. Positive lever indicates plug releasing.

4. Main parts are made from AISI 4145H alloy steel.

5. Top cover and union nut with large trapezoidial-threaded, it makes the tool convenient to disassemble and carry.

Not only common thread,also special thread cement head can be produced including JFE BEAR/BOX

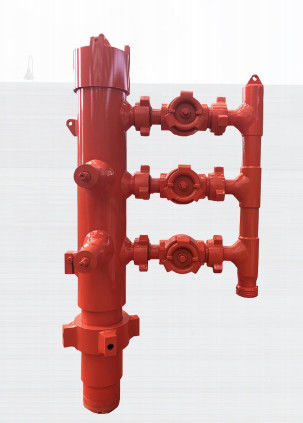

Double plug cementing head


Heads capable of storing multiple plugs are preferred over those just carrying single plugs for operational convenience, as the use of more than one plug requires the opening of the head to insert a second (or even a third) plug after circulating the drilling fluid and launching the bottom plug. This allows not only the build-up of gels in the annulus, having an adverse effect on fluid displacement efficiency, but also cement-free fall. The risk of sticking the casing (pipe sticking) is also increased if reciprocation is stopped to allow the insertion of the additional plug (or two).


Cementing head is a manifold system that is installed on the top of the casing which allows the cement slurry to be pumped from the cement unit down any of the type of casing string. The cement head is also used for releasing the top and bottom cement plugs.


A “cement head” is screwed into the top casing collar or landing joint, depending on the type of casing cementing job. The discharge side of the downhole pump and the cement head are connected by a series of articulated or straight sections of high-pressure steel pipe, also known as “treating iron”

AISI 4145H Casing Oilfield Cementing Tools Oilfield Cementing Units Head 0


AISI 4145H Casing Oilfield Cementing Tools Oilfield Cementing Units Head 1


Technical Parameter


Specifications, mm Φ139.7 Φ177.8 Φ193.7 Φ244.5 Φ273 Φ339.7
Overall-length,mm 1950 2020 2020 2360 2360 2440
Manifold 2'' Union
I.D. of plug container, mm Φ125 Φ160 Φ175 Φ225 Φ250 Φ320
Length of plug container, mm 400 450 450 550 550 600
Working Pressure, Mpa 35.5 35.5 35.5 35.5 35 35
