API5CT OCTG Premium Connection Premium Threads TP SERIES TPQR
| Type: | Premium Thread | Standards: | As Per Drawings |
| Service: | Finished Products Or Premium Threading | Seal: | Metal To Metal |
| Design: | Low Stress Design | ||
| High Light: | API5CT OCTG Premium Connection,API5CT OCTG Premium Threads,TP TPQR Premium Threads |
||
Premium connection, API5CT, TP SERIES, TPQR, SERVICE AND SOLUTION, OCTG
TPQR
In order to provide service in tough application surroundings,
SWS supplies optimal performance and premium connections, which are widely used by our customers in South-East, South America and Africa.
Our premium connections can greatly improve the usage span life and save costs for the end user.
TP-QR｜13-3/8"~20"

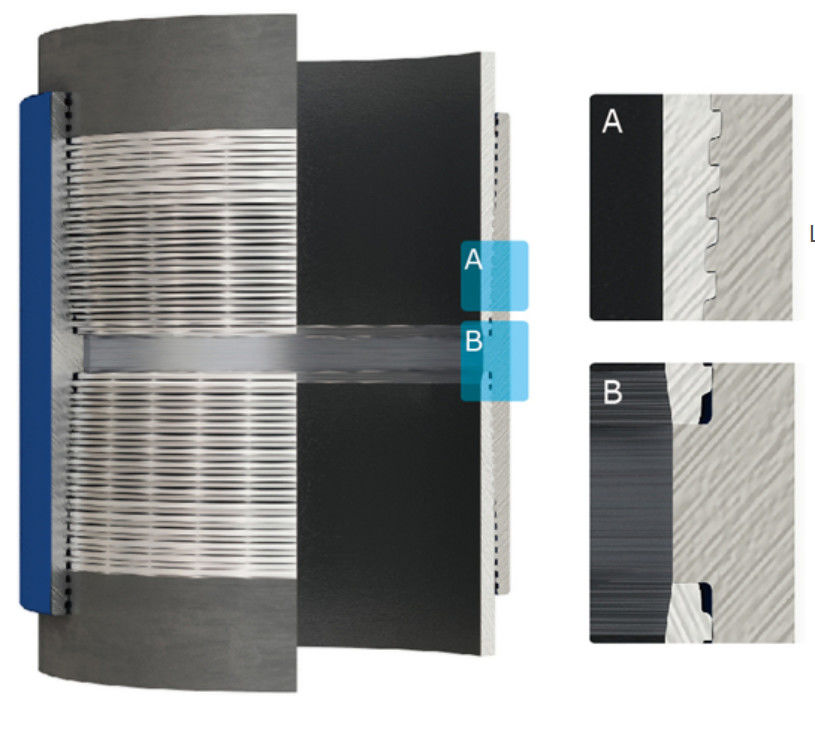

Structure Features
--3T.P.I coarse thread enable fast make-up without cross-thread
--Torque shoulder provides accurate power-tight make-up
--Internal flush
Performances
Threaded Connection
Coarse thread form with a taper of 1:12 and a lead of 3.T.P.I. enables high connection strength, fast and easy running without cross-threading.
Torque Shoulder
The torque shoulder provides accurate power tight make-up, which also enables connection to withstand higher compression load.
Internal Profile
The streamlined internal profile minimizes turbulence and energy loss due to high-velocity gas flows.
Coupling Design
Because the coupling covers the vanishing threads therefore the connection tensile efficiency is maximized.
Low Stress Design
The low stress design makes the connections reliable in corrosive condition.
