In order to provide service in tough application surroundings,
SWS supplies optimal performance and premium connections, which are widely used by our customers in South-East, South America and Africa.

Our premium connections can greatly improve the usage span life and save costs for the end user.

TP-CQ｜2-3/8"~13-5/8"

Structure Features

--High performance gas-tight premium connection for casting and tubing, ISO 13679 CALIV approved.

--Excellent gas seal-ability under combined load

--Easy stabbing, No cross threading

--Superior Anti-galling performance

--Easy repairing

--Suitable for low alloy & carbon steel pipe

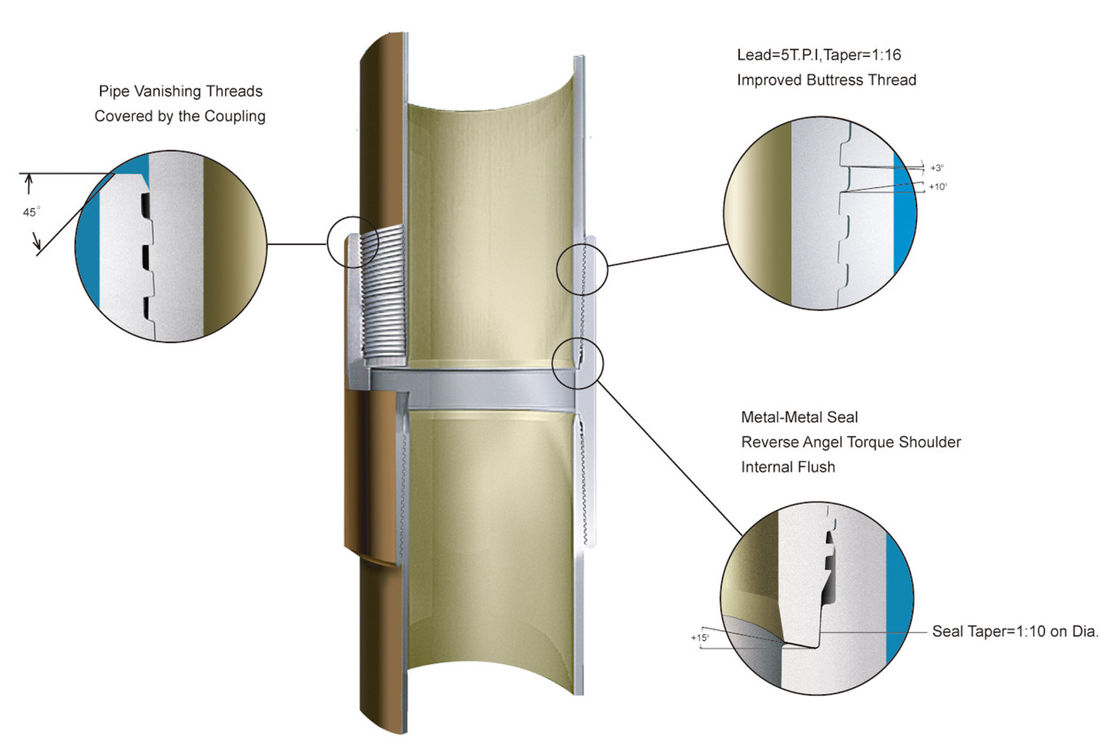

Modified Buttress Thread

--Taper=1:16

--TBG: 2-3/8in~2-7/8in: 8T.P.I. 3-1/2in~4-1/2in: 6T.P.I.

--CSG: Sin~13-5/8:5T.P.I.

--Meta-Metal Seal

--Seal Taper: TBG: 1:1.732 CSG: 1.10,1.6,1.3

--Reverse angle torque shoulder

Performances

Threaded Connection

--mproved Buttress thread with a taper of 1:16.

The clearance at the top of the thread crests minimize thread galling and avoid the tapping of compound inside the threads.

Metal-to-Metal Seal

--Metal-to-metal seal surface can provide enough contact length and pressure.

The seal system offers excellent gas-tight sealing, even under the most combined loads.

Reverse Angle Torque Shoulder

--The reverse angle torque shoulder provides a positive torque stop, which allows accurate power tight make-up and minimizes hoop stresses in the connection strength.

Streamlined Internal Profile

--A pin ID chamfer, tight tolerances on the coupling center combined with a long shoulder will minimize turbulence and energy loss.

Coupling Design

--Joint efficiency is more than 100% and coupling critical section is greater than pipe body section.

Connection Low Stress Design

--Connection low stress design ensures more safe under corrosive environment.
