China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling

Brand Name:	SWS
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Dimension:

50*30*30

Weight:

10 KG

Core Components:

Valve

Valve Type:

Single Valve & Double Valve

Processing Type:

Forging

Specification:

2-3/8~20"

Thread Type:

BTC\LTC\ Special Thread\EU\NU

Steel Grade:

N80\L80\P110

Bore O.D.:

6", 7 5/8", 10 5/8", 14 3/8"

Bore I.D.:

4 3/4", 6 1/4", 8 5/8", 12 3/8"

Min Bore:

2", 2 3/8"

Thread Type:

5 1/2" LCSG, 7" LCSG, 9 5/8" LCSG, 13 3/8" LCSG

Pressure Rating:

4351 Lb/in², 3626 Lb/in²

Valve Size:

70mm, 90mm

Temperature Rating:

150°C, 204°C

Highlight:

China Float Shoe

4-1/2 114.3mm Float Collar

N80 Cementing Tool

Product Description

API 5CT 4-1/2" 114.3mm China Float Shoe and Float Collar Cementing Tool

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Hi Flow valves to reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic, 70MPa and 204°C seal
Spring made from phosphor bronze C510 material with high restoring force and drillable properties
Plunger seal top molded with HNBR, 70MPa and 204°C seal

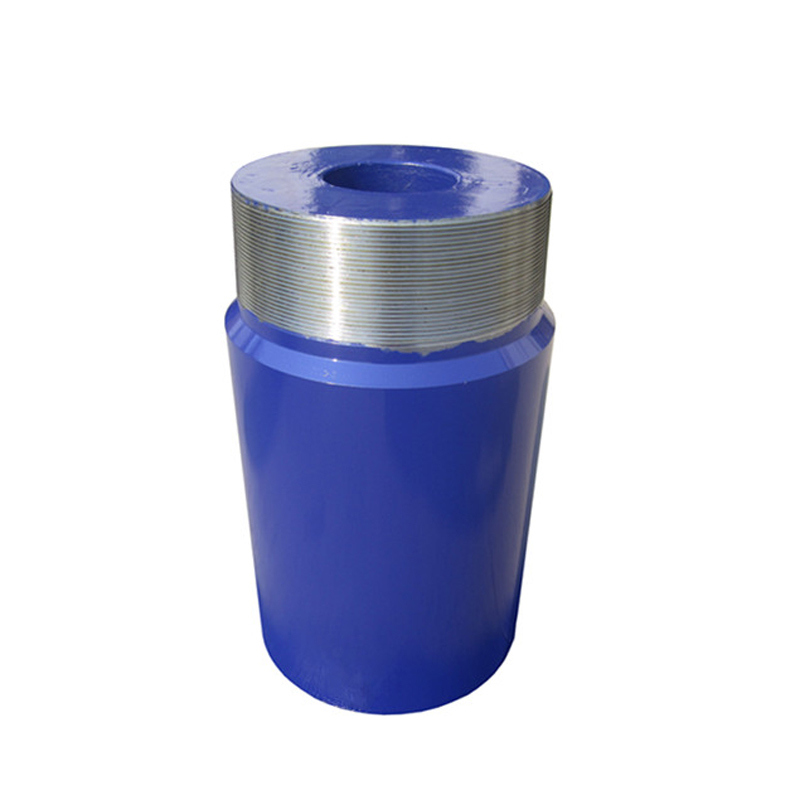

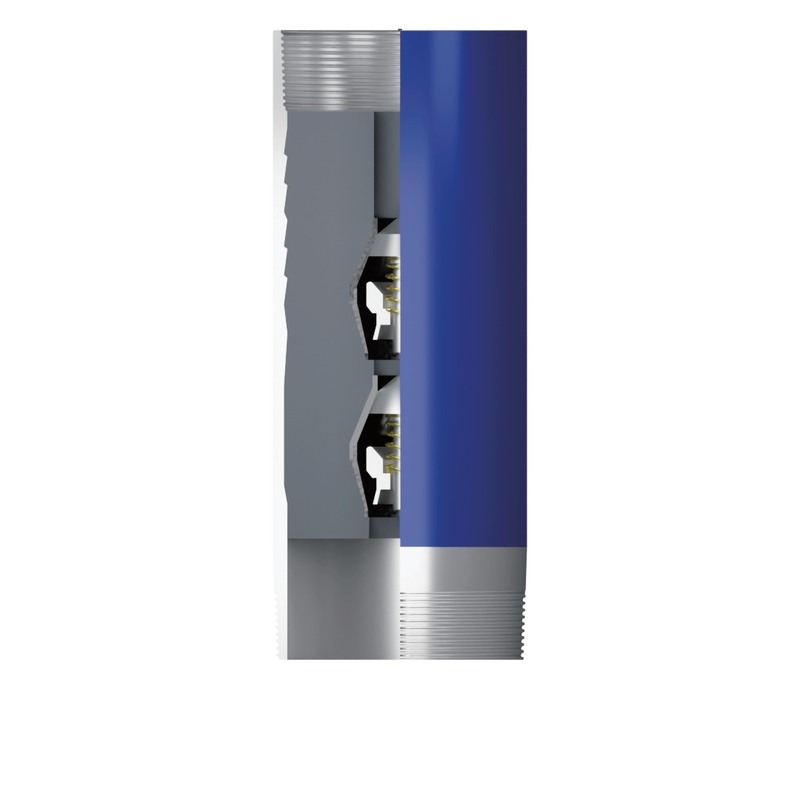

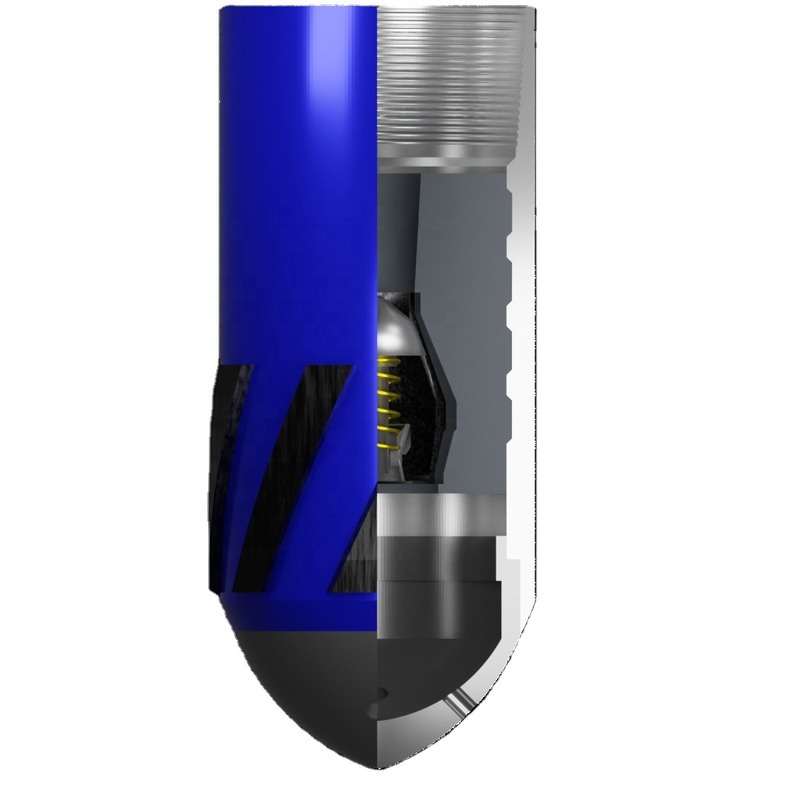

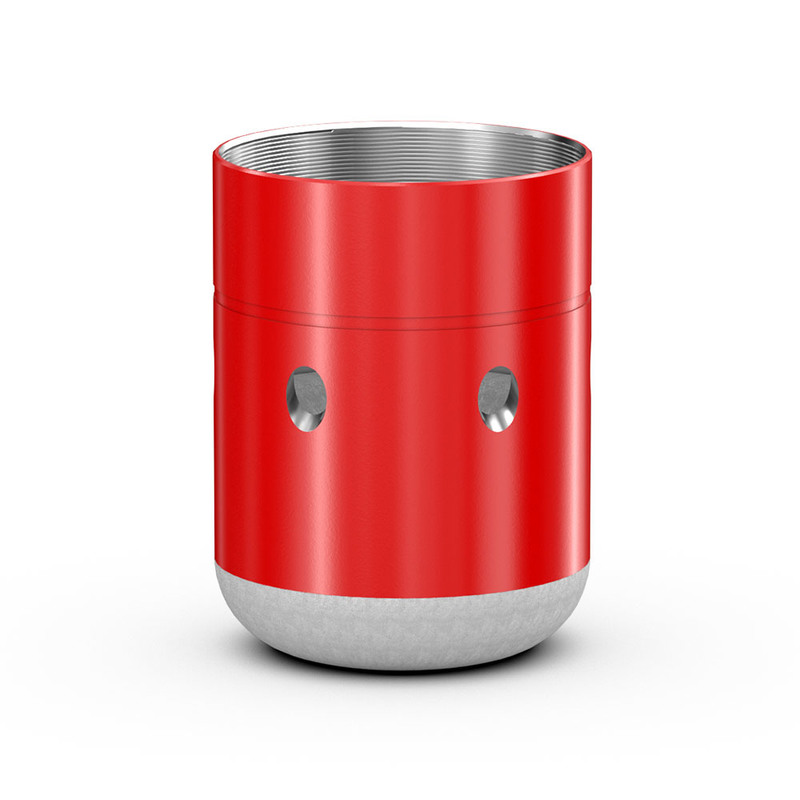

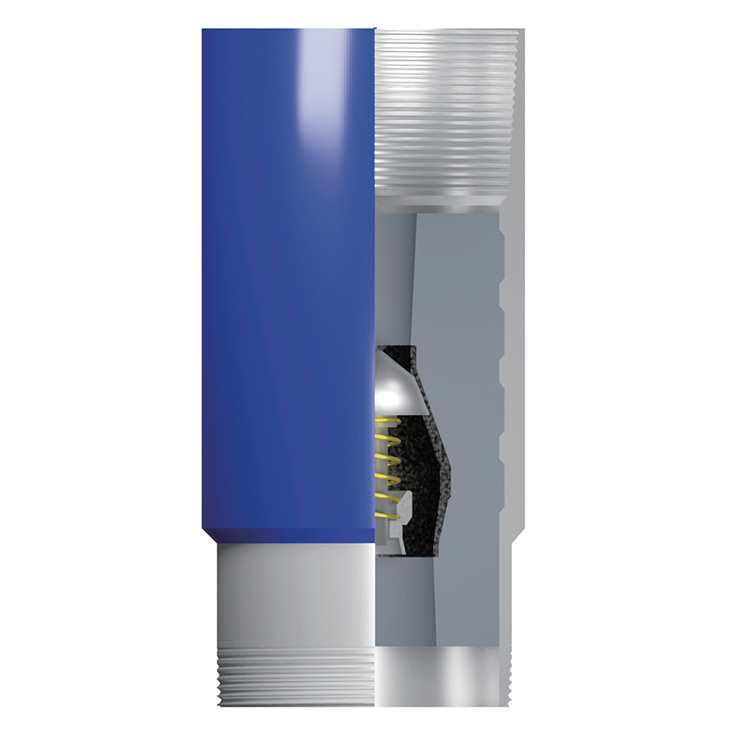

Product Images

Company Information

Certifications

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: Honestly, it depends on the order quantity and the season you place the order.
