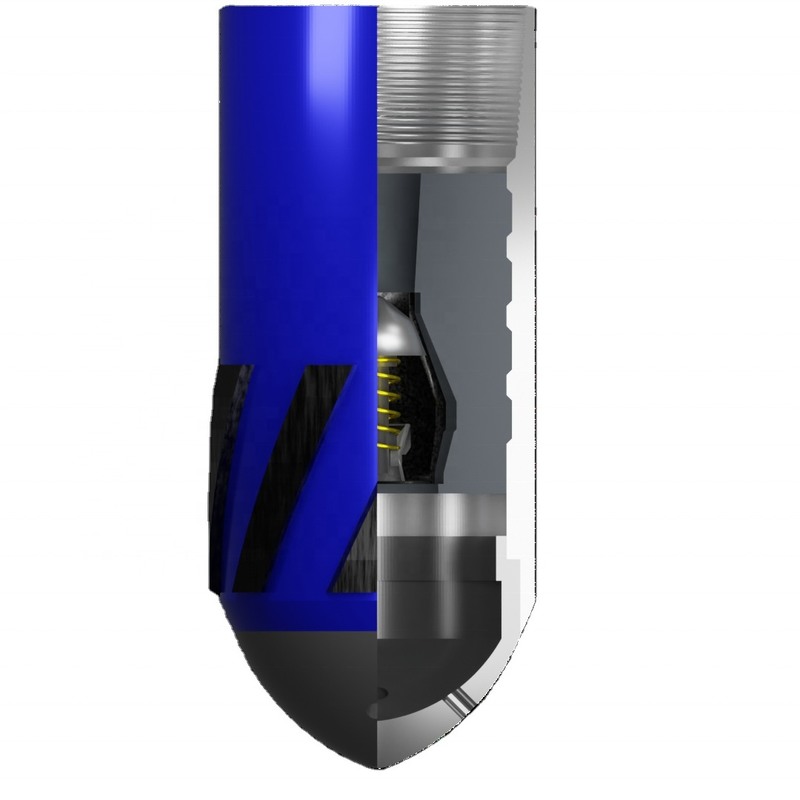

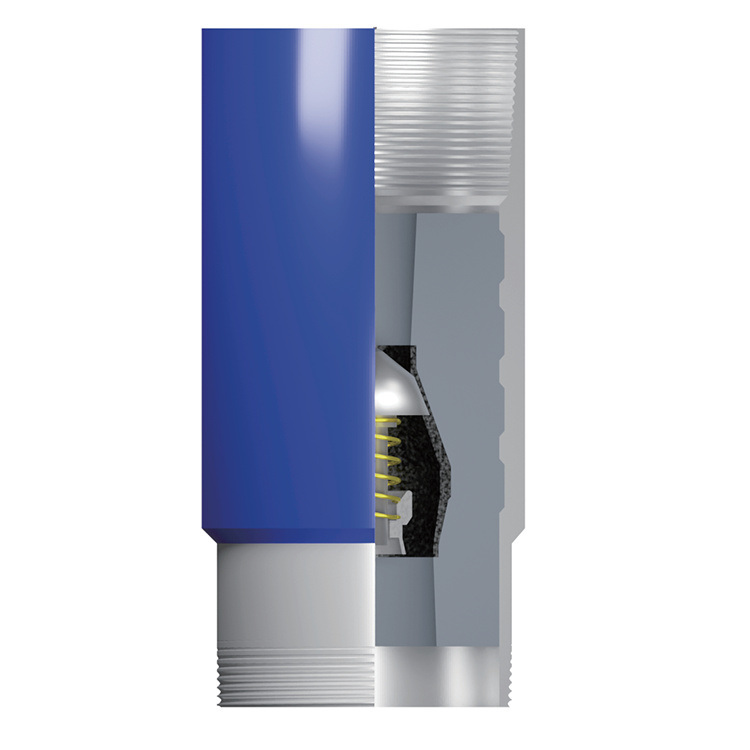

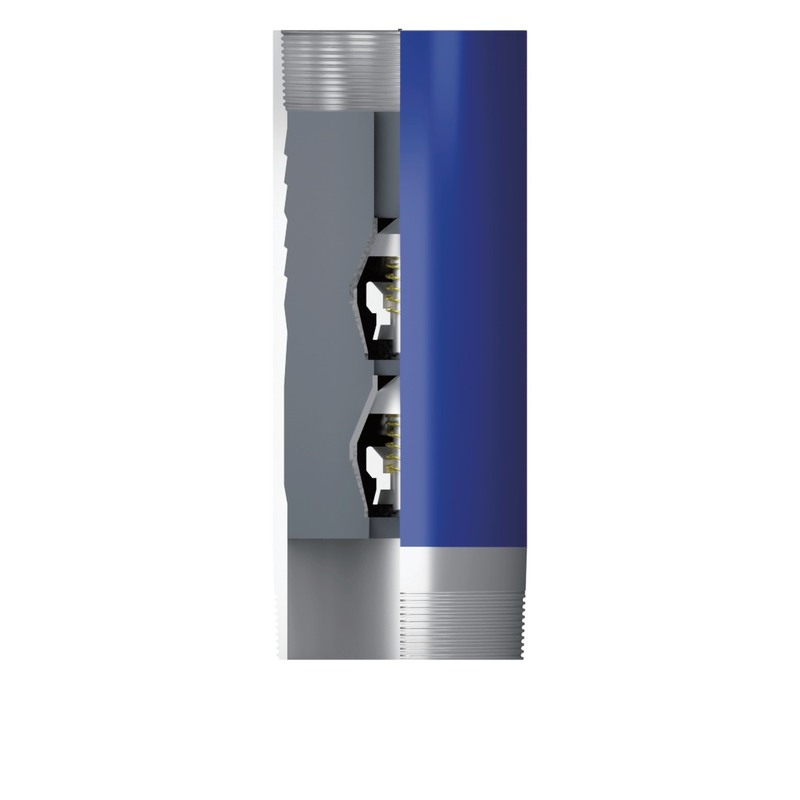

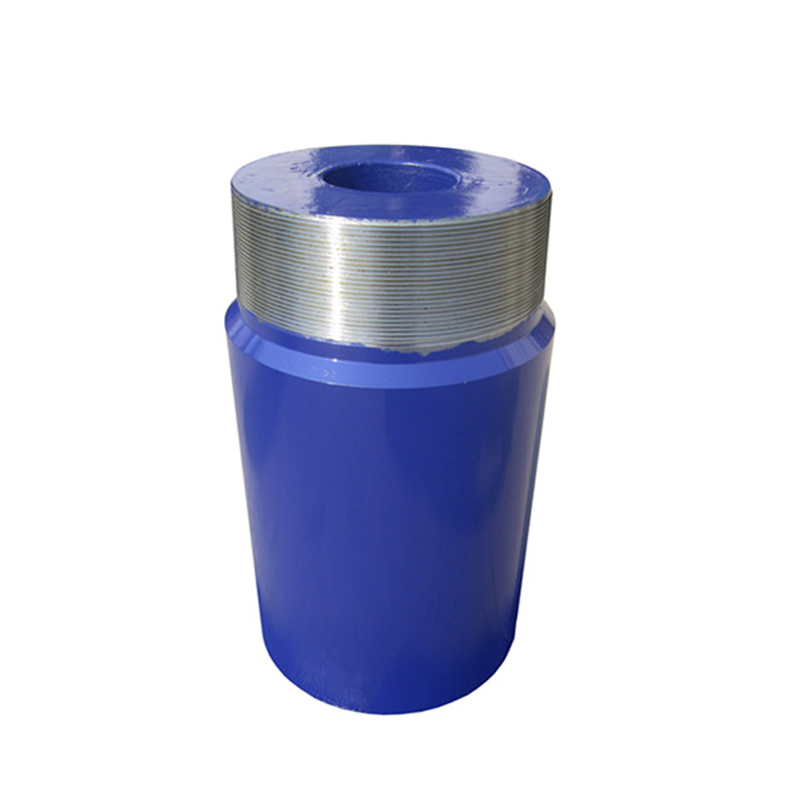

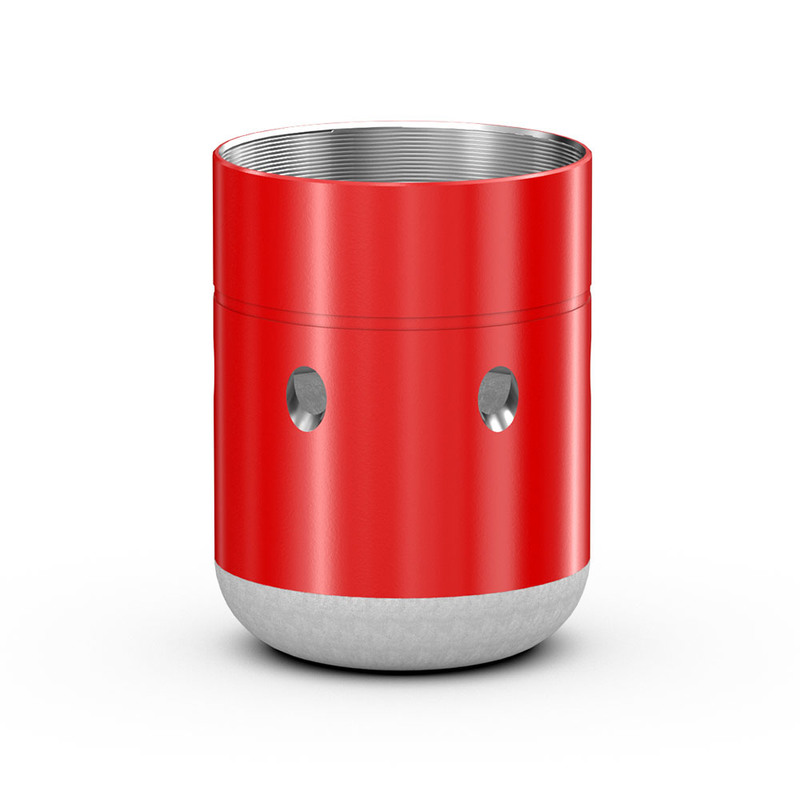

API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well
| Dimension: | 50*30*30 | Weight: | 10 KG |
| Core Components: | Valve | Valve Type: | Single Valve & Double Valve |
| Processing Type: | Forging | Specification: | 2-3/8~20" |
| Thread Type: | BTC\LTC\ Special Thread\EU\NU | Steel Grade: | N80\L80\P110 |
| Bore O.D.: | 6" | Bore I.D.: | 4 3/4" |
| Min Bore: | 2" | Thread Type: | 5 1/2" LCSG |
| Pressure Rating: | 70MPa | Temperature Rating: | 204°C |
| Valve Size: | 70mm And 90mm | ||
| High Light: | 114.3mm Float Collar,70MPa Float Shoe,204°C Seal Cementing Tool |
||
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore Parameter(in) | Thread Type | lb(in²) |
|---|---|---|---|---|---|---|
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 | |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
- Essential casing equipment for primary cementing operations in oil wells
- Guides casing to total depth and prevents contaminated mud entry
- Provides landing point for casing wiper plugs
- Reinforces lower end of casing string for improved cement slurry displacement accuracy
- Hi Flow valves reduce fluid erosion and minimize pressure drop
- Available in two valve sizes: 70mm and 90mm
- PDC drillable composite plastic valve components
- Standard seal rated to 150°C with optional 204°C seal
- Valve body molded with fiber phenolic for 70MPa and 204°C seal
- High-quality Canadian phosphor bronze springs with excellent restoring force
