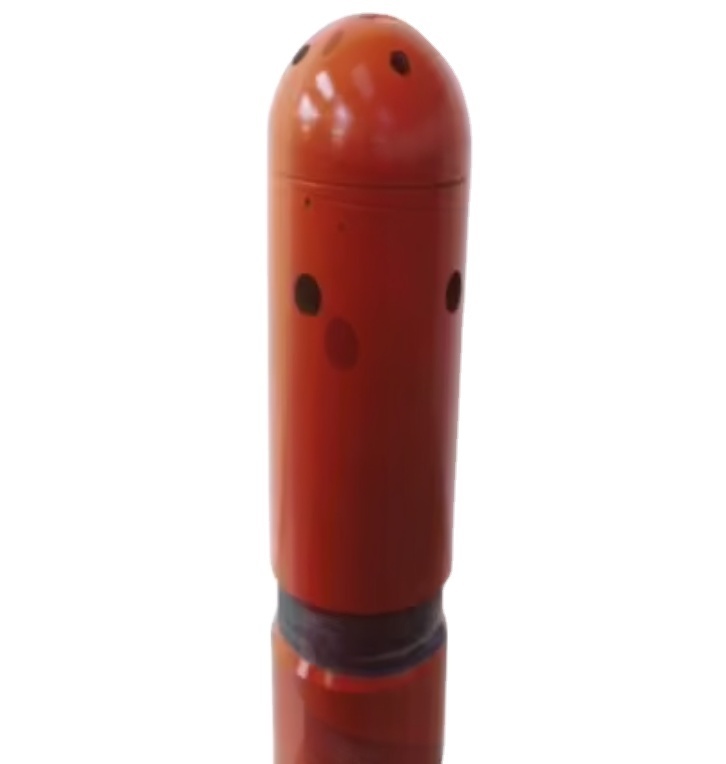

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API standard float shoes

oilfield drilling float shoes

5-20 inch cementing float equipment

Place of Origin:

Jiangsu, China

Brand Name:

SWS

Certification:

API

Request A Quote

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Product Details

Dimension:

5"-20"

Weight:

10 KG

Material:

Carbon Steel / 304 Stainless Steel

Thread Type:

STC LTC BTC EUE NUE XC

Bore O.D.:

6", 7 5/8", 10 5/8", 14 3/8"

Bore I.D.:

4 3/4", 6 1/4", 8 5/8", 12 3/8"

Min Bore:

2", 2 3/8"

Pressure Rating:

4351, 3626 Lb/in²

Valve Size:

70mm, 90mm

Temperature Rating:

150°C, 204°C

Seal Material:

HNBR

Spring Material:

Phosphor Bronze C510

Valve Body Material:

Fibre Phenolic

Pressure Resistance:

70MPa

Core Components:

Steel

OEM Available Cement Head for Petroleum Equipment Manufacturers

Get Best Price

Multi-Plug Cement Head System for Efficient Oil Well Cementing Jobs

Get Best Price

Durable Cementing Head with Replaceable Parts for Long Service Life

Get Best Price

Customizable Cement Head Assembly with Quick Connectors for Easy Installation

Get Best Price

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact Now

Product Description

Hot Product API Cementing Tools - Float Collar, Float Shoe & Guiding Shoe

Company Profile

Product Description

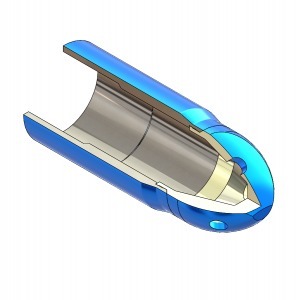

Float equipment serves as essential components in casing equipment for primary cementing operations. These precision tools guide the casing to total depth while preventing contaminated mud from entering the casing string.

Key functions and benefits:

Provides landing point for casing wiper plugs
Reinforces the lower end of casing strings
Ensures accurate cement slurry displacement
Features Hi Flow valves to minimize fluid erosion and pressure drop

Technical Specifications

Available in two valve sizes: 70mm and 90mm

Material specifications:

Valve components: PDC drillable composite plastic
Standard seal rating: 150°C (204°C optional)
Valve body: Fibre phenolic, rated for 70MPa and 204°C
Spring: Canadian phosphor bronze C510 material with high restoring force
Plunger seal: HNBR material rated for 70MPa and 204°C

Product Images

Technical Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb/in²
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Manufacturing Facility

Device Images

Industry Exhibitions

Quality Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.

Q2: Could I have prices of your products?

A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours with detailed pricing information.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts. Larger quantity orders qualify for progressively better pricing.

Q4: Do you inspect the finished products?

A: Yes, our QC department conducts thorough inspections at every production stage and performs final quality checks before shipping.

Q5: What about the lead time for mass production?

A: Lead times vary based on order quantity and seasonal demand. We'll provide an accurate production timeline when we receive your specific requirements.
