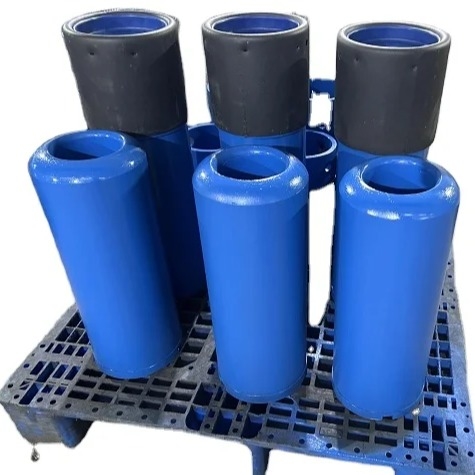

Factory Supply 11-3/4 Special Thread P110 Auto Fill Cement Float Shoe and Float Collar for Oilfield Drilling

Basic Properties

Brand Name: SWS

Trading Properties

Minimum Order Quantity: 1 pcs

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Reamer Float Shoe And Float Collar

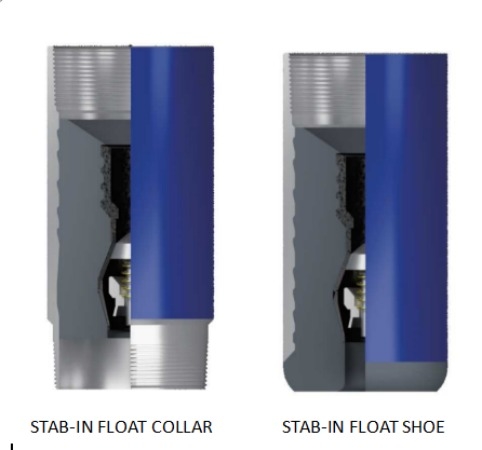

Stab In Float Collar Cementing

Receiver Plate Float Collar

Specifications

Product name:	Float Shoe And Float Collar	Standard:	API
Specification:	11-3/4	Thread Type:	Special Thread
Steel Grade:	P110	Valve Material:	PDC
Bearing Pressure:	35MPa	Used for:	Cementing Wells

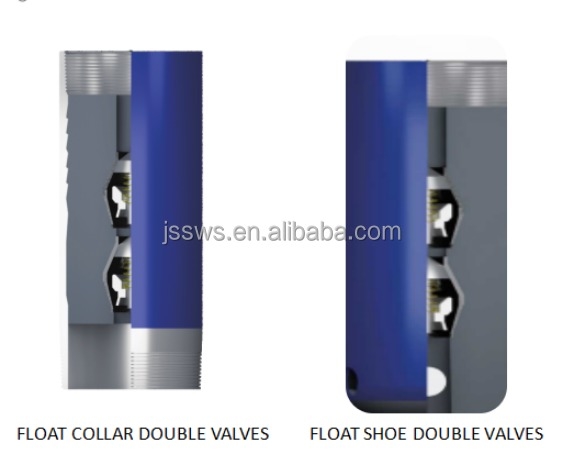

Valve type:	Single Valve & Double Valve	OD:	298.45 Mm
High Light:	P110 auto fill cement float shoe , oilfield drilling float collar , special thread cementing equipment

Product Description

COMPANY PROFILE

We(SWS) are specialized in cementing tools and casing accessories, engaging in the development, manufacturing, sales and service. Advanced downhole tool manufacturing technology is used to provide products that exceed industry quality standards to meet the challenging cementing tools' needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities, together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

CERTIFICATES

We get the certificate of API Q1, 7-1 and 5CT.

PRODUCT DESCRIPTION

A float shoe is a specialized piece of equipment installed at the bottom of the casing string. It contains a check valve or a backflow preventer mechanism that allows fluid to flow downward during casing placement but prevents fluid from flowing back up the casing once it's in place. This design helps maintain hydrostatic pressure in the wellbore, prevents the influx of formation fluids, and ensures proper cementing of the casing.

A float collar is another critical component placed near the bottom of the casing string, just above the float shoe. Like the float shoe, it also contains a check valve or backflow preventer mechanism. The float collar serves similar functions as the float shoe, ensuring one-way flow of fluids during casing placement and preventing fluid migration after cementing. Additionally, the float collar typically incorporates guide fins or other features to help centralize the casing string within the wellbore, facilitating proper cement placement and enhancing wellbore stability.
