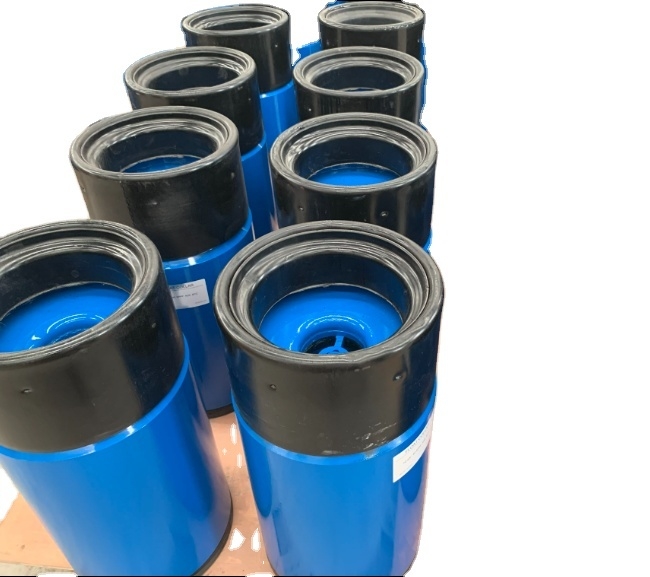

API 5CT Non-rotating Downhole Cement tools 20 Special Thread P110 Float Collar and Float Shoe with Casing Pipe

API 5CT float collar

P110 float shoe with casing

non-rotating downhole cement tools

Brand Name:

SWS

Request A Quote

Product Details

Product Name:

Float Shoe And Float Collar

Standard:

API

Specification:

Thread Type:

Special Thread

Steel Grade:

P110

Valve Material:

PDC

Bearing Pressure:

35MPa

OD:

508 Mm

Used For:

Cementing Wells

Valve Type:

Single Valve & Double Valve

API Standard Cement Tool 16 LTC P110 Casing Float Shoe and Float Collar in Oilfield Well Drilling

Get Best Price

Video

API 5CT Non-rotating Downhole Cement tools 20 Special Thread P110 Float Collar and Float Shoe with Casing Pipe

Get Best Price

Video

Oil Well Drilling Tools 4-1/2 Special Thread N80 Casing Float Shoe and Float Collar

Get Best Price

Video

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling

Get Best Price

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact Now

Product Description

COMPANY PROFILE

We(SWS) are specialized in cementing tools and casing accessories, engaging in the development, manufacturing, sales and service. Advanced downhole tool manufacturing technology is used to provide products that exceed industry quality standards to meet the challenging cementing tools' needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities, together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

CERTIFICATES

We get the certificate of API Q1, 7-1 and 5CT.

PRODUCT DESCRIPTION

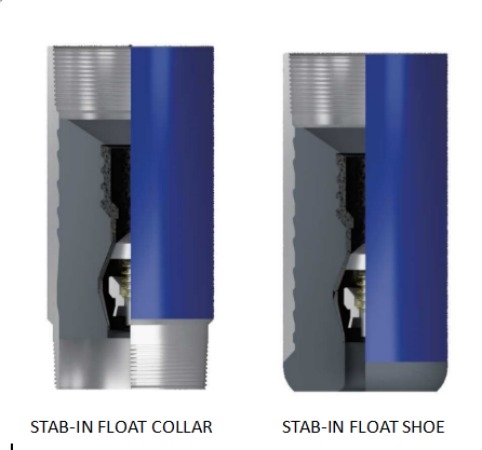

A float shoe is a specialized piece of equipment installed at the bottom of the casing string. It contains a check valve or a backflow preventer mechanism that allows fluid to flow downward during casing placement but prevents fluid from flowing back up the casing once it's in place. This design helps maintain hydrostatic pressure in the wellbore, prevents the influx of formation fluids, and ensures proper cementing of the casing.

A float collar is another critical component placed near the bottom of the casing string, just above the float shoe. Like the float shoe, it also contains a check valve or backflow preventer mechanism. The float collar serves similar functions as the float shoe, ensuring one-way flow of fluids during casing placement and preventing fluid migration after cementing. Additionally, the float collar typically incorporates guide fins or other features to help centralize the casing string within the wellbore, facilitating proper cement placement and enhancing wellbore stability.

FACTORY PHOTOS

EXHIBITION

PACKAGE & TRANSPORTATION

CONTACT INFORMATIONS

Tel	+86 18015889633
Whatsapp	+86 18015889633
Mail	leo@service-js.com
Web	www.jssws-oil.com
