Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling

L80 cement casing float collar

API 5CT float shoe

oil well drilling casing pipe

Brand Name:

SWS

Contact Us

Request A Quote
Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling
Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling
Product Details
Product Name:
Float Shoe And Float Collar
Standard:
API
Specification:
5-1/2
Thread Type:
Special Thread
Steel Grade:
L80
OD:
139.7 Mm
Valve Material:
PDC
Bearing Pressure:
35MPa
Valve Size:
70mm
Used For:
Cementing Wells
Valve Type:
Single Valve
RELATED PRODUCTS
Good price API Standard Cement Tool 16 LTC P110 Casing Float Shoe and Float Collar in Oilfield Well Drilling online Video

API Standard Cement Tool 16 LTC P110 Casing Float Shoe and Float Collar in Oilfield Well Drilling

Get Best Price
Good price API 5CT Non-rotating Downhole Cement tools 20 Special Thread P110 Float Collar and Float Shoe with Casing Pipe online Video

API 5CT Non-rotating Downhole Cement tools 20 Special Thread P110 Float Collar and Float Shoe with Casing Pipe

Get Best Price
Good price Oil Well Drilling Tools 4-1/2 Special Thread N80 Casing Float Shoe and Float Collar online Video

Oil Well Drilling Tools 4-1/2 Special Thread N80 Casing Float Shoe and Float Collar

Get Best Price
Good price Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling online Video

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling

Get Best Price
Contact Us
86-519-83553967
Leo@service-js.com
86-519-83553967
Contact Now
Product Description

COMPANY PROFILE

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 0

We(SWS) are specialized in cementing tools and casing accessories, engaging in the development, manufacturing, sales and service. Advanced downhole tool manufacturing technology is used to provide products that exceed industry quality standards to meet the challenging cementing tools' needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities, together with raw material and production storage.

MAIN PRODUCTS

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 1

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 2

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

CERTIFICATES

 Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 3

We get the certificate of API Q1, 7-1 and 5CT.

PRODUCT DESCRIPTION

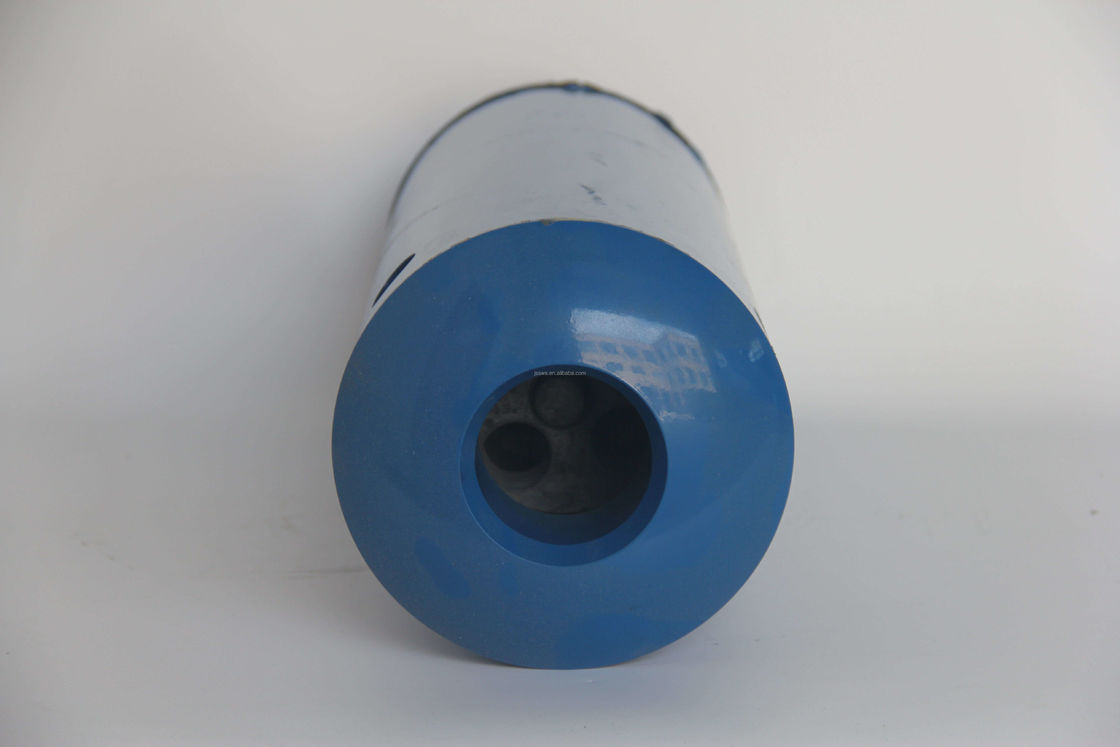

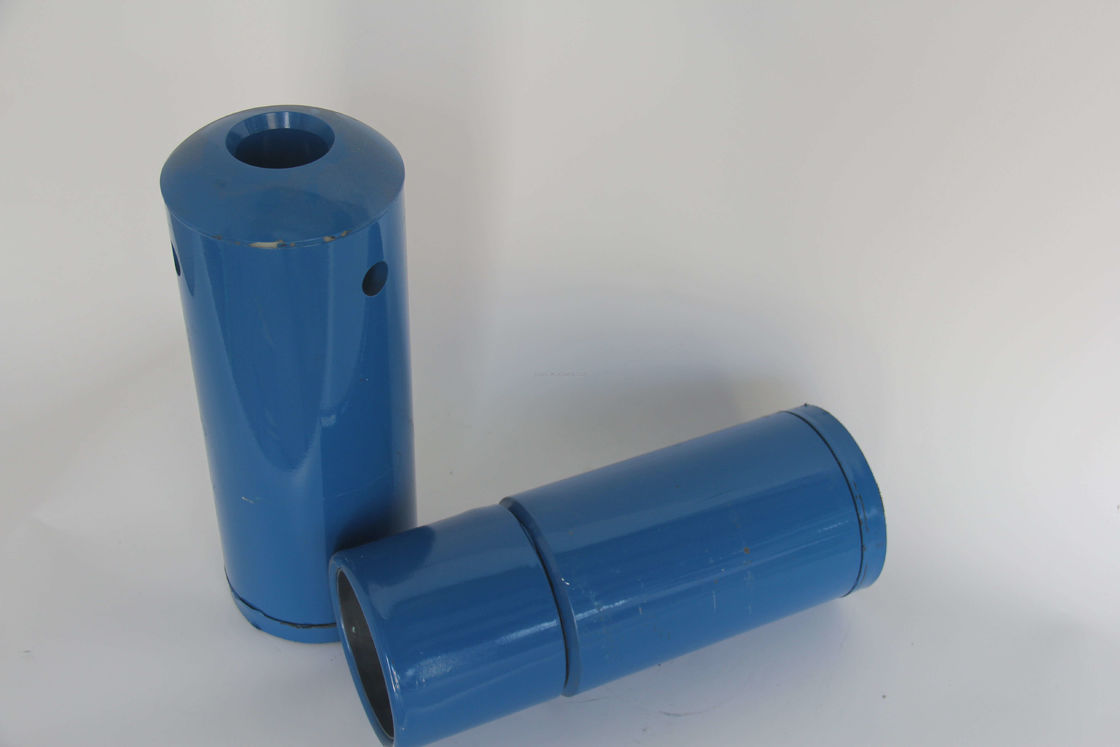

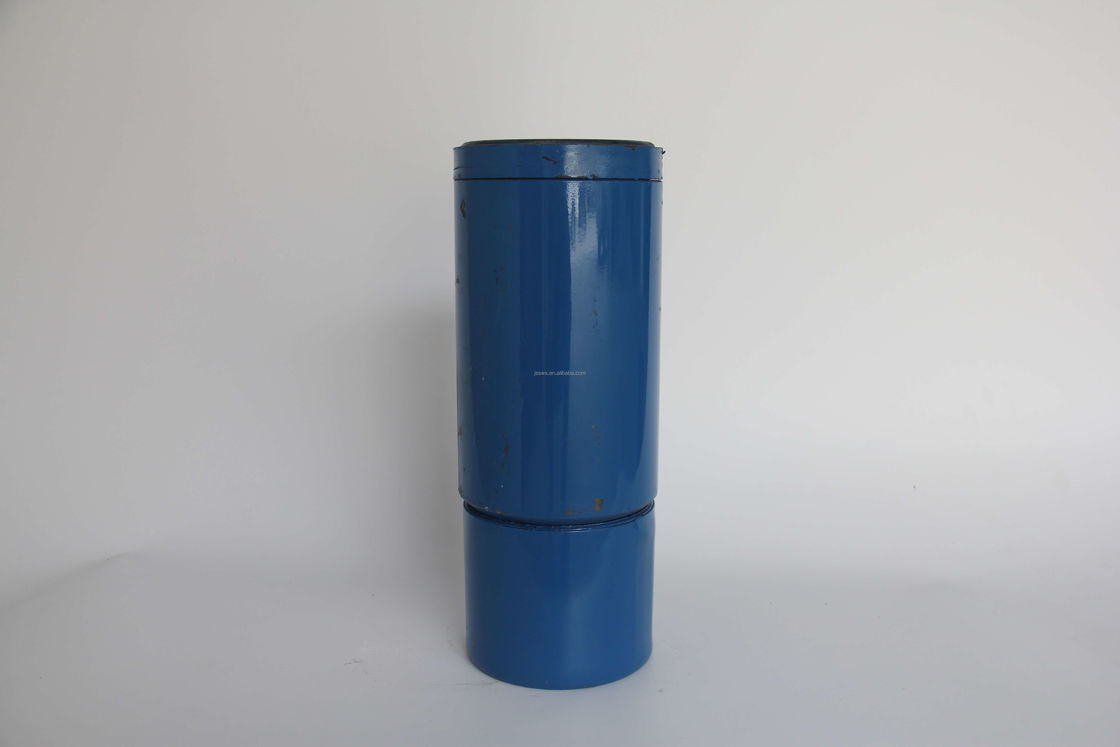

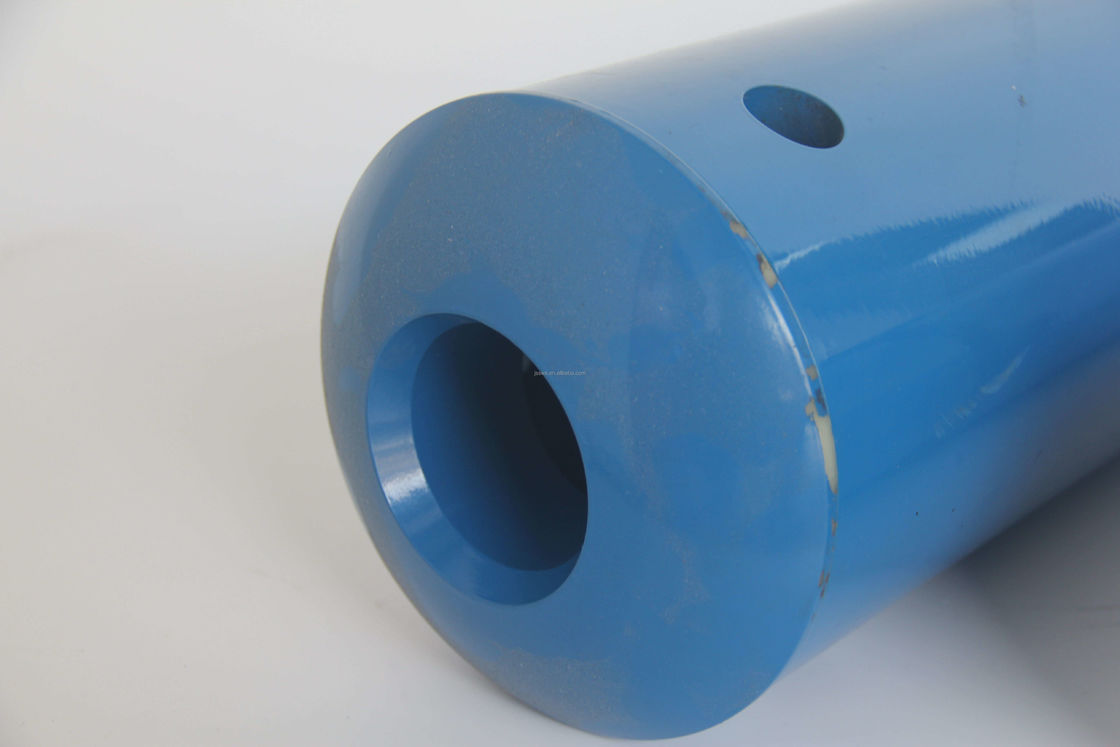

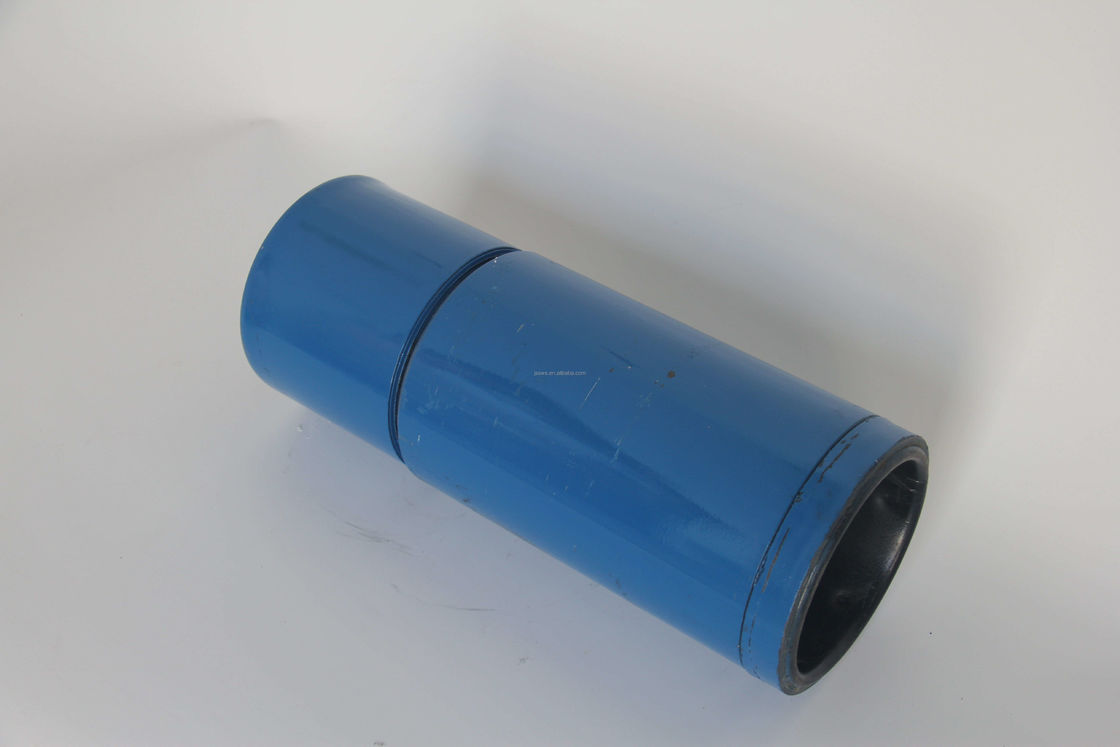

A float shoe is a specialized piece of equipment installed at the bottom of the casing string. It contains a check valve or a backflow preventer mechanism that allows fluid to flow downward during casing placement but prevents fluid from flowing back up the casing once it's in place. This design helps maintain hydrostatic pressure in the wellbore, prevents the influx of formation fluids, and ensures proper cementing of the casing.

A float collar is another critical component placed near the bottom of the casing string, just above the float shoe. Like the float shoe, it also contains a check valve or backflow preventer mechanism. The float collar serves similar functions as the float shoe, ensuring one-way flow of fluids during casing placement and preventing fluid migration after cementing. Additionally, the float collar typically incorporates guide fins or other features to help centralize the casing string within the wellbore, facilitating proper cement placement and enhancing wellbore stability.
Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 4
Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 5
Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 6Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 7Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 8


FACTORY PHOTOS

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 9

EXHIBITION

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 10

PACKAGE & TRANSPORTATION

Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 11Oilfield Special Thread 5-1/2 L80 Cement Casing Float Collar and Float Shoe with Casing Pipe with API 5CT in Oil Well Drilling 12
