Name: 13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield
Brand: Jiangsu Service Petroleum Technology Co., Ltd
SKU: 141-142
Price: 4,500.00 USD
Availability: InStock

Home > Products > Oilfield Tool >

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield

BTC Buckle Cementing Head

Buckle connected Cementing Head

Place of Origin:

Jiangsu China

Brand Name:

SWS

Certification:

API 5CT

Model Number:

141-142

Request A Quote

Product Details

Material:

Steel

Peak Working Pressure (Mpa):

Maximum Test Pressure (Mpa):

Connect Buckle Type:

LTC/BTC

Tube Exchange Interface:

2"1502 Union

Ontology Inner Diameter (mm):

Φ342

Specification:

5-1/2''~13/3/8''

Type:

Double Plug

Length Of Upper Stop Cavity (mm):

450

Length Of Lower Stop Cavity (mm):

450

Overall Length (mm):

2120

7'' API Casing LTC BTC Buckle Connected With Coated Single Plug Cementing Head With Wooden Packing 550KG

Get Best Price

Video

13-3/8'' API Casing BTC Buckle Connected With Coated Double Plug Cementing Head With Wooden Packing 810KG

Get Best Price

12-3/4'' API Casing LTC BTC Buckle Connected 54Mpa Test Pressure Double Plug Cementing Head With Wooden Packing 760KG

Get Best Price

12-3/4'' API Casing LTC BTC Buckle connected 35Mpa Working Pressure Double Plug Cementing Head With Wooden Packing 760KG

Get Best Price

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact Now

Product Description

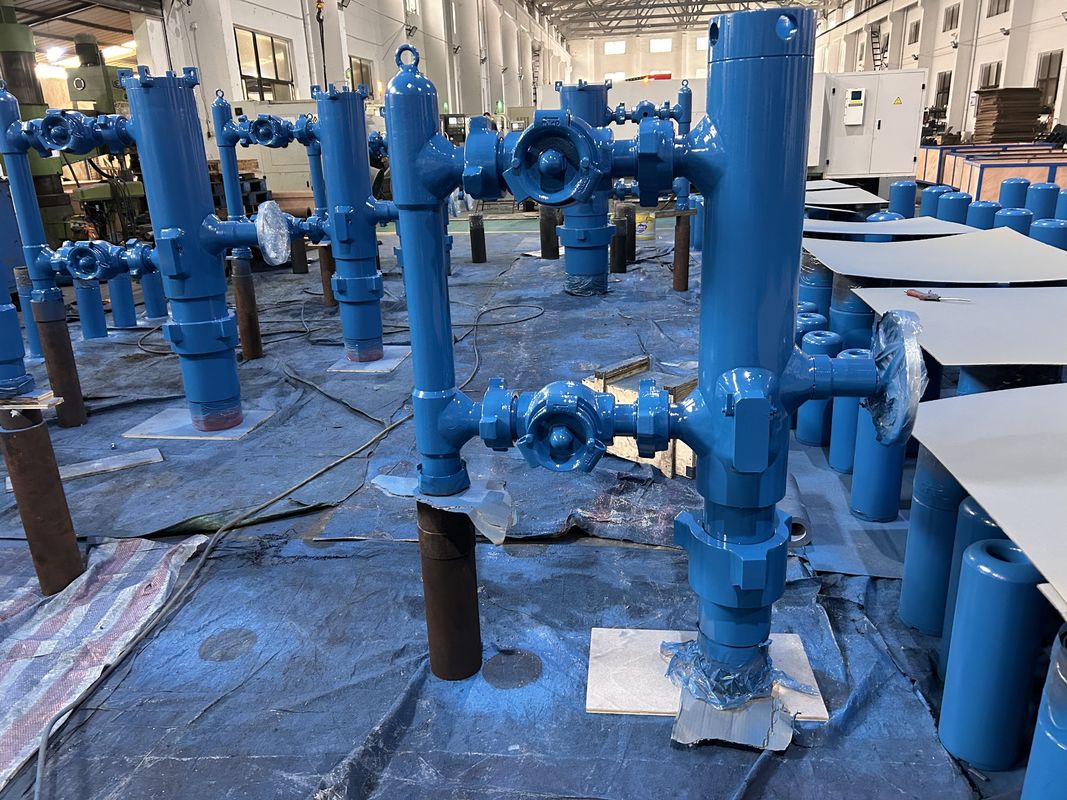

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield 0

Products Description

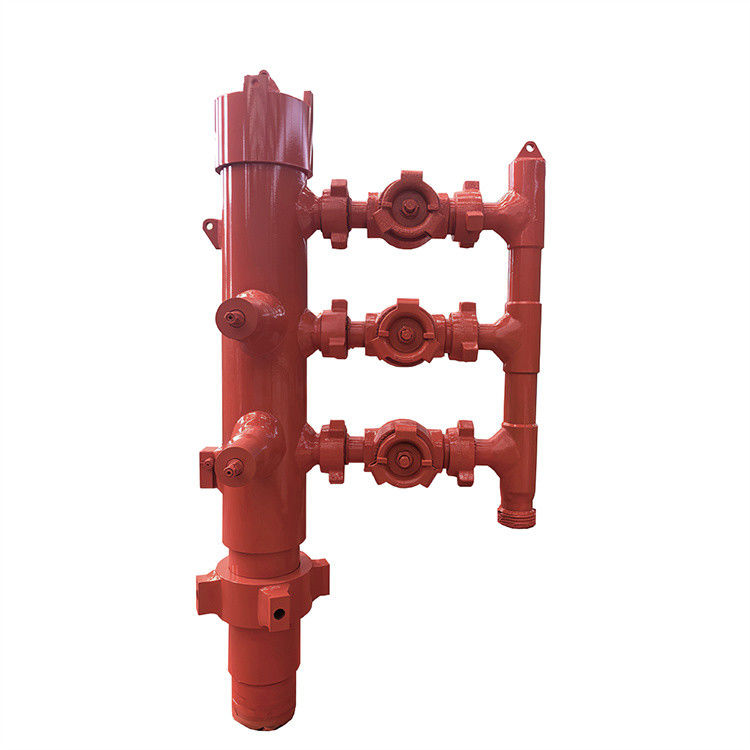

A. Double Plug Cement Head

Specification	Φ140 (5 1/2”)	Φ168.3 (6 5/8“”)	Φ178 (7”)	Φ244.5 (9 5/8”)	Φ323.9 (12 3/4”)	Φ339.7 (13 3/8”)
peak working pressure (Mpa)	35	35	35	35	21	21
Maximum test pressure (Mpa)	54	54	54	54	35	35
Connect buckle type	LTC/BTC	LTC/BTC	LTC/BTC	LTC/BTC	LTC/BTC	LTC/BTC
Tube exchange interface	2"1502 Union	2"1502 Union	2"1502 Union	2"1502 Union	2"1502 Union	2"1502 Union
Ontology inner diameter (mm)	Φ142	Φ170	Φ181	Φ248	Φ327	Φ342
Length of upper stop cavity (mm)	425	425	425	450	450	450
Length of lower stop cavity (mm)	425	425	425	450	450	450
overall length (mm)	1900	1926	1926	2126	2120	2120

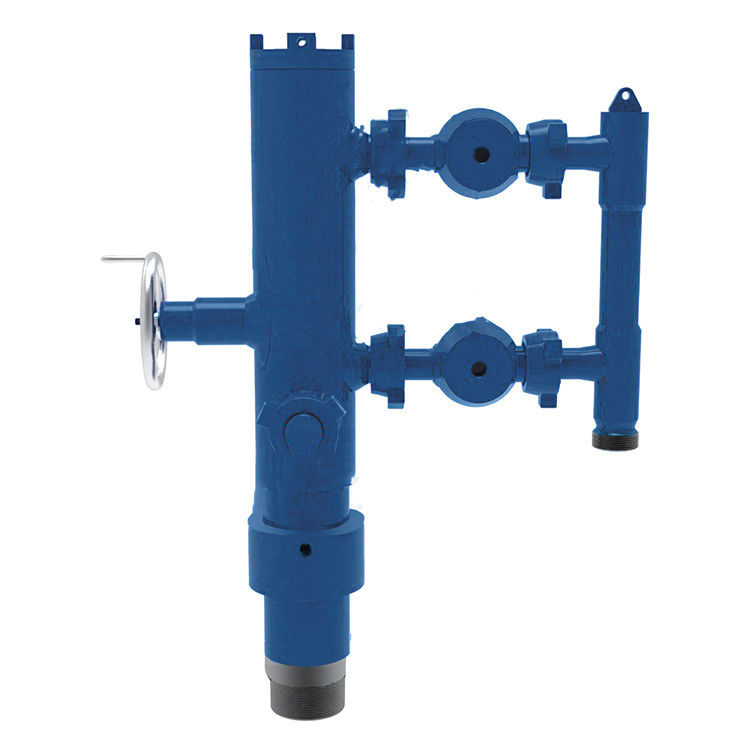

B. Single Plug Cement Head

specifications	Φ140(5 1/2”)	Φ178(7”)	Φ244.5(9 5/8”)	Φ339.7(13 3/8”)
peak working pressure (Mpa)	35	35	35	21
Maximum test pressure (Mpa)	50	50	50	35
Connect buckle type	LTC/BTC	LTC/BTC	LTC/BTC	LTC/BTC
Tube exchange interface	2"1502 Union	2"1502 Union	2"1502 Union	2"1502 Union
Ontology inner diameter (mm)	Φ142	Φ181	Φ248	Φ342
Length of upper stop cavity (mm)	425	425	450	450
overall length (mm)	1516	1526	1585	1593

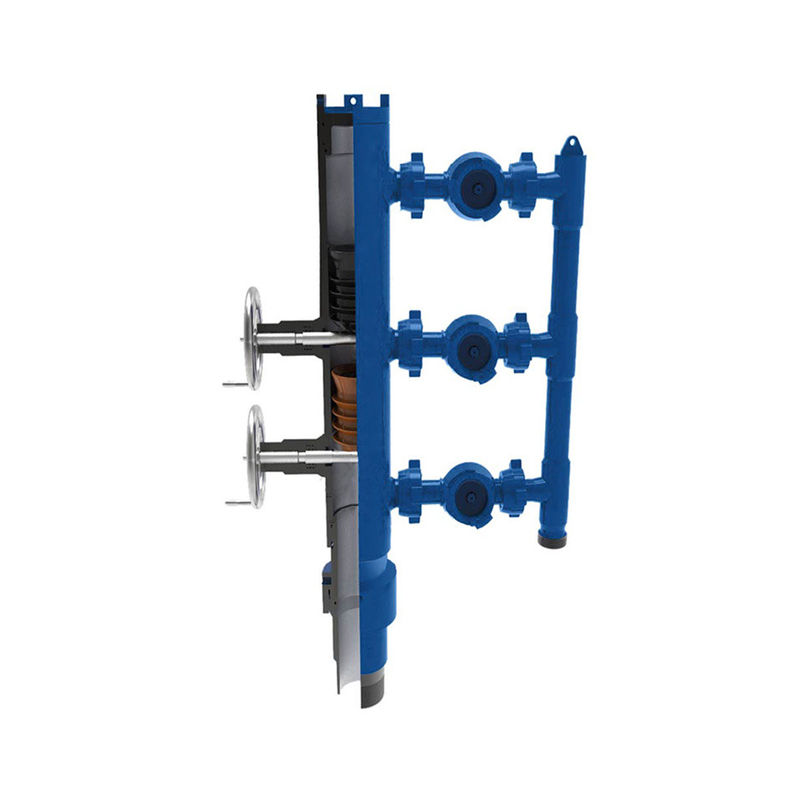

Cementing Head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement Head after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.

Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.

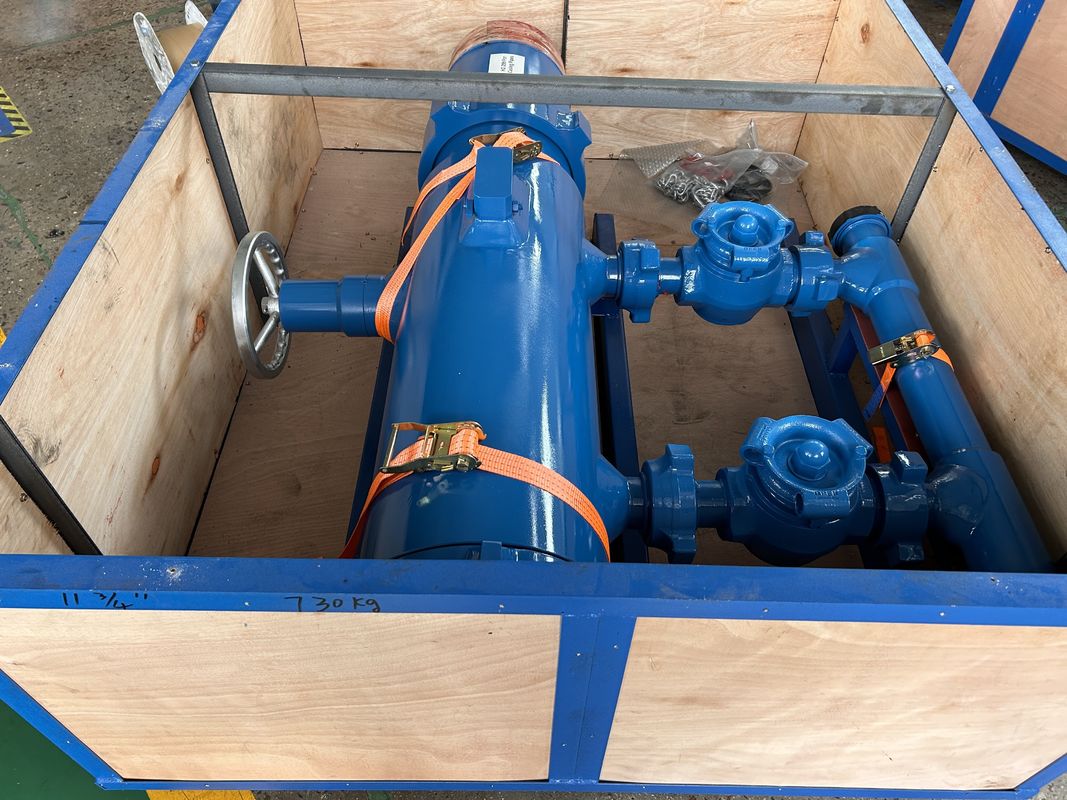

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield 1

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield 2

API certification document

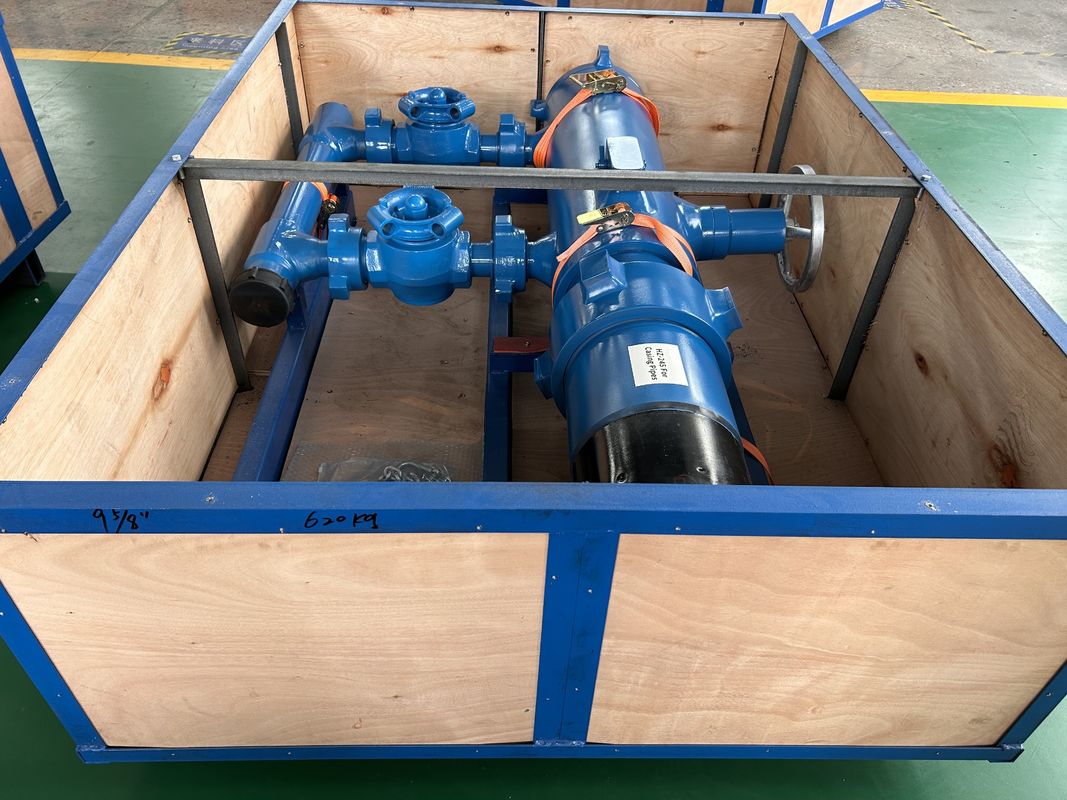

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield 5

Factory production line

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield 6

13-3/8'' API Casing BTC Buckle Connected Regulatory Compliance Double Plug Cementing Head for Oilfield 7

FAQ

Q1,When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get theprice, please tell us in your email so that we will regard you inquiry priority.

Q2,Could I have prices of your products?

A:Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

Q3,Can I get a lower price if I order large quantities?

A: Yes, cheaper prices with more bigger quantity orders.

Q4,Do you inspect the finished products?

A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5,What about the lead time for the mass production?

A: Honestly, it depends on the order quantity and the season you place the order.
