N80 API Standard 6-5/8 Special Thread Double Valves Float Shoe and Collar for Gas Well Drilling

N80 Float Shoe

Gas Well Drilling Float Shoe

API Standard 6-5/8 Float Shoe

Brand Name:

SWS

Request A Quote

N80 API Standard 6-5/8 Special Thread Double Valves Float Shoe and Collar for Gas Well Drilling

Product Details

Standard:

API

Thread Type:

Special Thread

Steel Grade:

N80

Specification:

6-5/8

Bearing Pressure:

35MPa

OD:

168.28mm

Used For:

Gas Well Drilling

Type:

Double Valves

Single-Valve Plug-In Floating Shoe Equipment for Oil Drilling Production Core Motor Floating Collar for Oil Field Cementing

Get Best Price

Single Valve Plug-in Float Shoe for Oil Field Cementing Equipment for Oil Drilling Production 1-Year Warranty Pump Core

Get Best Price

Large Diameter Automatic Grouting Floating Hoop Oilfield Cementing Anti-Rotation Floating Shoes Supply Oil Field Equipments

Get Best Price

Manufacturers Supply Customizable 305 Series Ball Catcher Floating Collar Floating Shoes for Oil Field Water Treatment Machinery

Get Best Price

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact Now

Product Description

COMPANY PROFILE

We(SWS) are specialized in cementing tools and casing accessories, engaging in the development, manufacturing, sales and service. Advanced downhole tool manufacturing technology is used to provide products that exceed industry quality standards to meet the challenging cementing tools' needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities, together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

CERTIFICATES

We get the certificate of API Q1, 7-1 and 5CT.

PRODUCT DESCRIPTION

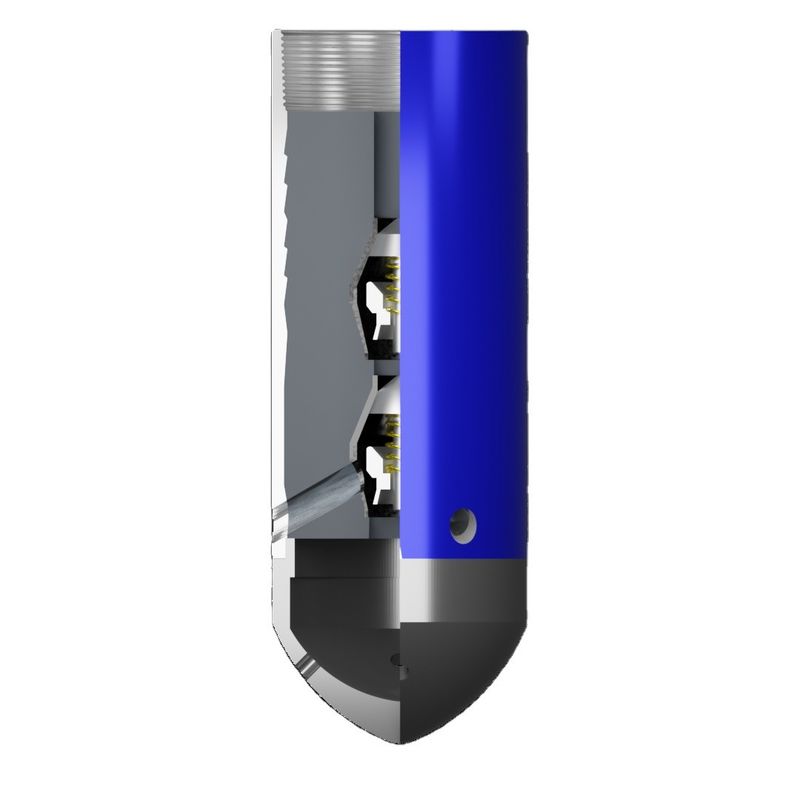

A float shoe is a specialized piece of equipment installed at the bottom of the casing string. It contains a check valve or a backflow preventer mechanism that allows fluid to flow downward during casing placement but prevents fluid from flowing back up the casing once it's in place. This design helps maintain hydrostatic pressure in the wellbore, prevents the influx of formation fluids, and ensures proper cementing of the casing.

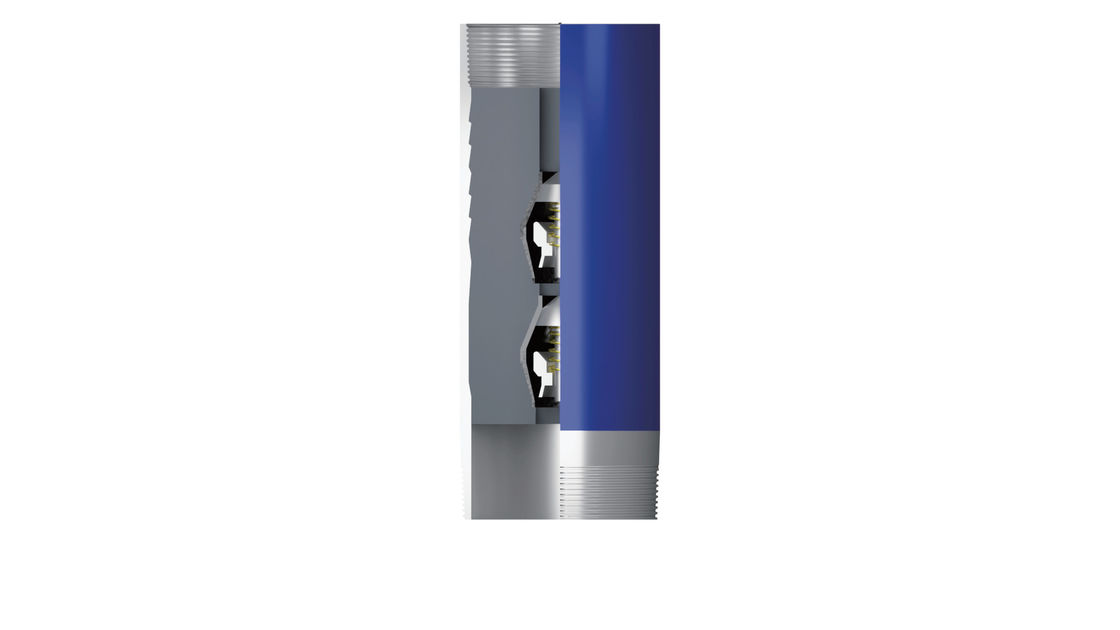

A float collar is another critical component placed near the bottom of the casing string, just above the float shoe. Like the float shoe, it also contains a check valve or backflow preventer mechanism. The float collar serves similar functions as the float shoe, ensuring one-way flow of fluids during casing placement and preventing fluid migration after cementing. Additionally, the float collar typically incorporates guide fins or other features to help centralize the casing string within the wellbore, facilitating proper cement placement and enhancing wellbore stability.

FACTORY PHOTOS

EXHIBITION

PACKAGE & TRANSPORTATION

CONTACT INFORMATIONS

Tel	+86 18015889633
Whatsapp	+86 18015889633
Mail	leo@service-js.com
Web	www.jssws-oil.com
