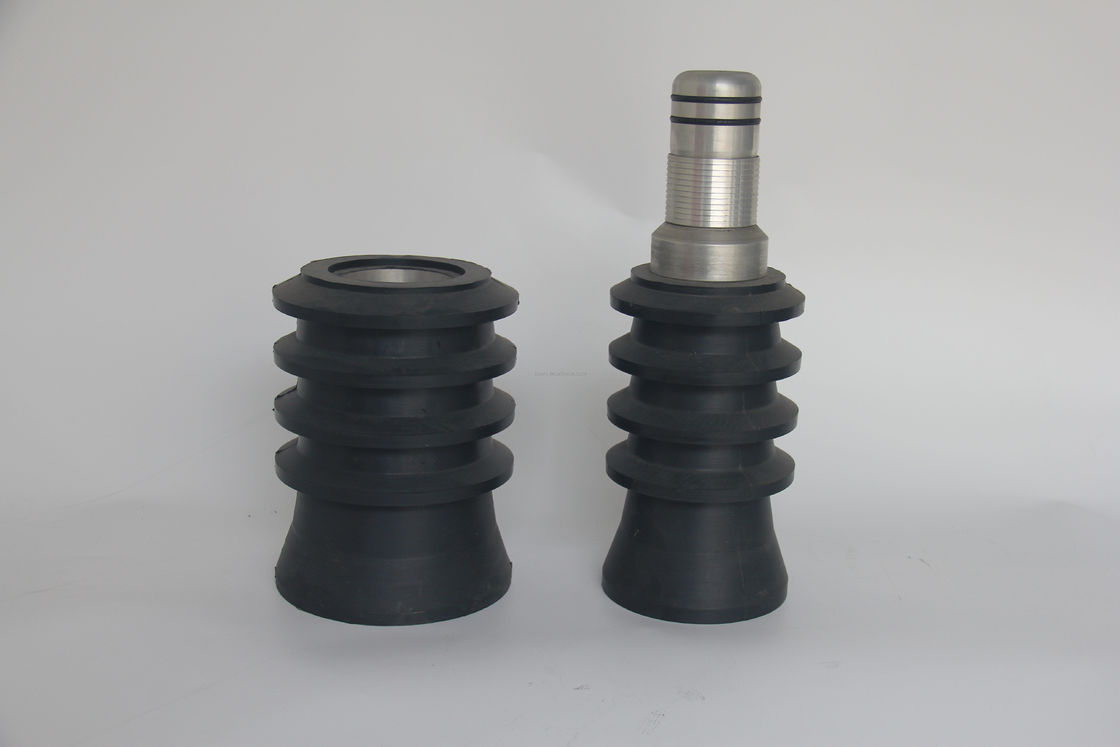

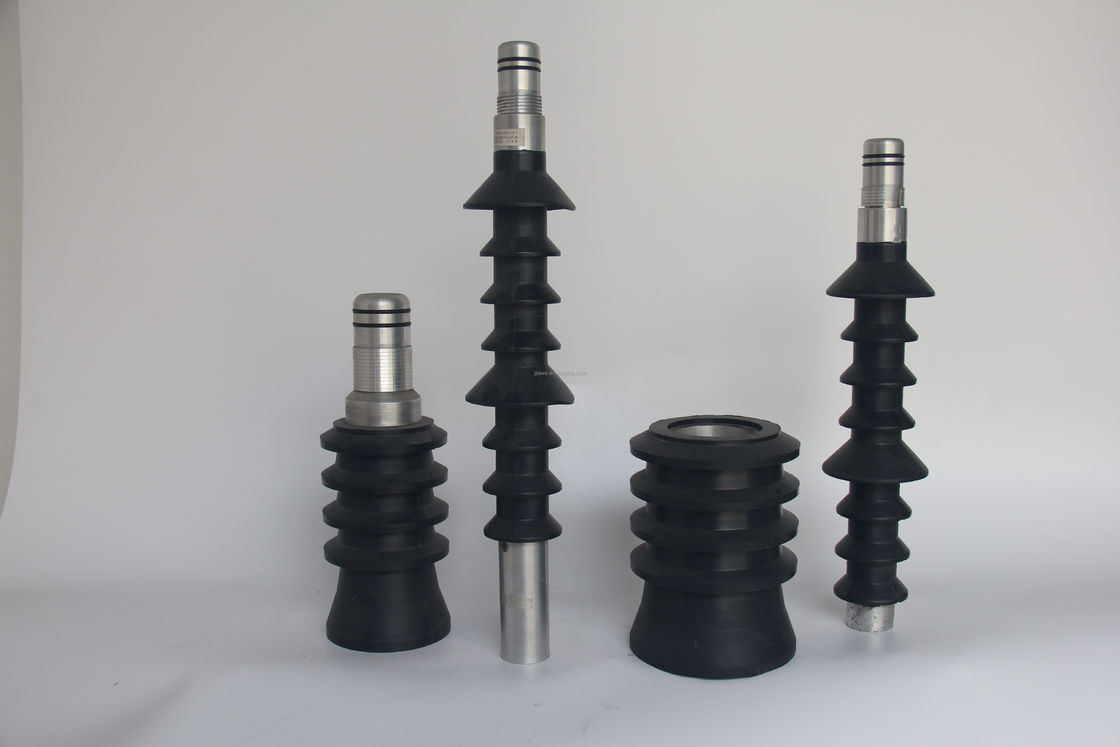

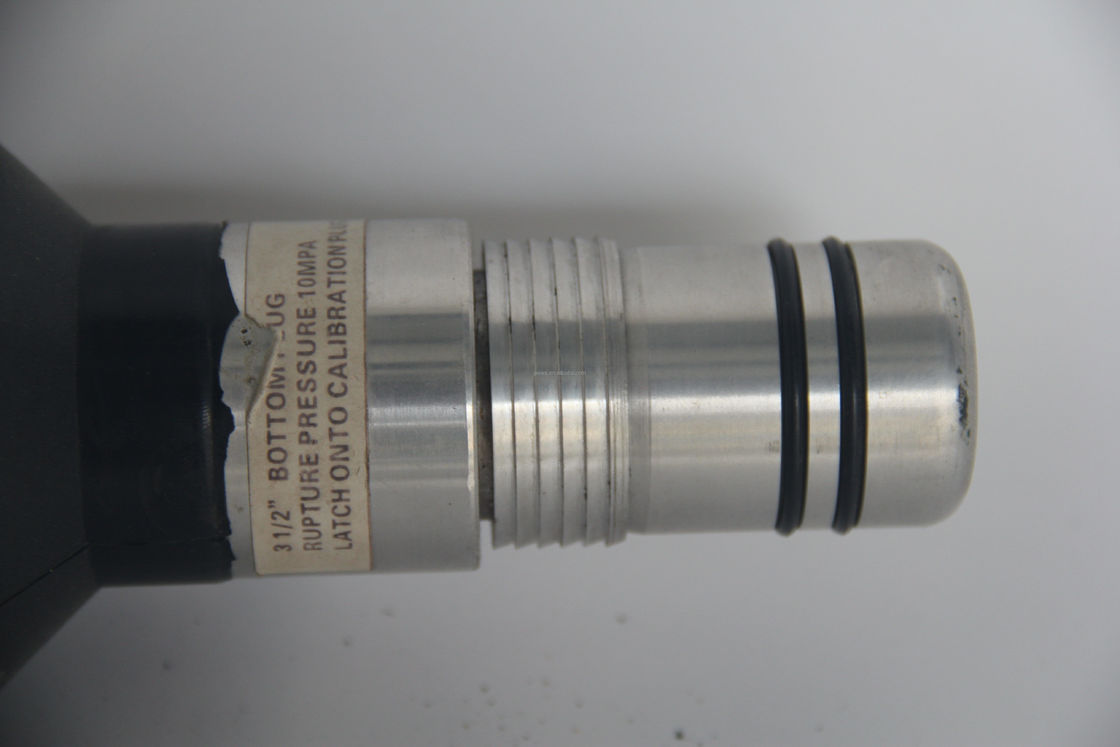

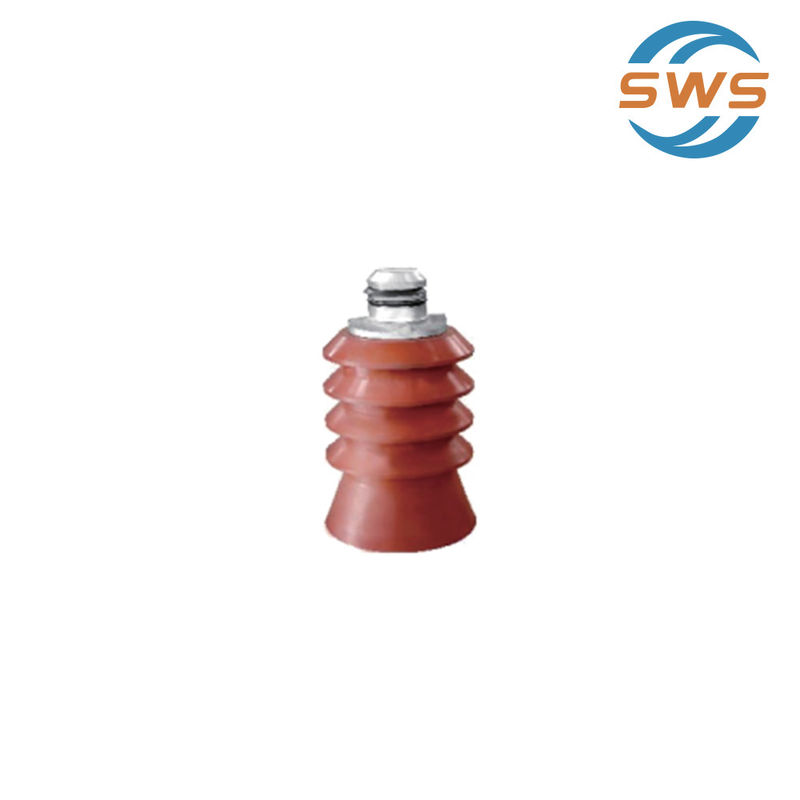

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing

PDC Drillable Cement Plug

4 1/2 Gas Well Cement Plug

Auto Latch Cement Plug

Place of Origin:

Jiangsu China

Brand Name:

SWS

Certification:

API 5CT

Contact Us

Request A Quote
Product Details
Standard:
API
Product Use:
Well Cementing
Specification:
4 1/2''
Style:
Plug
Length Range:
114.3-339.7mm
O.D(mm):
114.3
W.T(mm):
5.21
Material:
Plastic
Applicable Slurries:
Water-based Or Oil-based Drilling Mud
Product Description

COMPANY PROFILE

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 0

Jiangsu Service Petroleum Technology Co., Ltd. is committed to researching and supplying high-level petroleum downhole tools and drilling equipments, and has obtained the certificates of API Q1, API 5CT, ISO9001 quality system certification, 14001 environmental system certification, and 18001 occupational health system certification.

With over 15 years of manufacturing experience and successful collaborations with renowned oil extraction companies such as China National Petroleum Corporation, Sinopec, Shell, Mobil, and Husky Energy, we have established a reputation for delivering oil casing accessories that surpass industry standards, meeting the demanding requirements of challenging oilfield operations.

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 1

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 2

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 34 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 44 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 54 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 64 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 74 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 8

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 9













Products Description

Cementing Plugs are used during primary cementing operations to wipe out dispersed fluid including drilling fluid and cement from the inner diameter of casing, therefore minimizes the contamination of cement slurry.


Service Can Provide PDC drillable plugs, In conjunction with the non rotating plugs, a non rotating receiver plate must be ordered for the landing the plug in the shoe or collar
The rubber elastomer on the plugs are for use with water or oil based drilling mud.
Sepcial plugs for tapered casing strings and large diameter plugs for casing siezs larger than 339mm are available.



Casing size(in) Casing weight range Wiper Fin O.D
mm in mm in
4 1/2" 14.14-17.26 9.50-11.60 110 4.331
5" 17.11-35.86 11.50-24.10 122 4.803
5 1/2" 20.83-39.88 14.00-26.80 135 5.315
7" 25.30-56.55 17.00-38.00 170 6.693
7 5/8" 35.72-63.69 24.00-42.00 185 7.283
9 5/8" 53.57-79.62 36.00-53.50 235 9.252
10 3/4" 60.27-97.77 40.50-65.70 260 10.236
13 3/8" 71.43-107.15 48.00-72.00 333 13.11
20" 139.89-197.93 94.00-133.00 498 19.606



4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 104 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 11

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 12

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 13

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 14

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 15

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 16

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil Gas Well Safe Cementing 17

FAQ


Q1,When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get theprice, please tell us in your email so that we will regard you inquiry priority.

Q2,Could I have prices of your products?
A:Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

Q3,Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger quantity orders.

Q4,Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5,What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
