LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for Oil Well or Gas Well

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for Oil Well or Gas Well

N80 Cementing Float Shoe

Oil Well Cementing Float Shoe

Gas Well Cementing Float Shoe

Place of Origin:

Jiangsu China

Brand Name:

SWS

Certification:

API 5CT

Contact Us

Request A Quote
Product Details
Standard:
API
Bore O.D.(in):
6"
Bore I.D.(in):
4 3/4"
Thread Type:
5 1/2" LTC
Steel Grade:
N80
Product Use:
Oil&Gas Well
Specification:
5-1/2''
Style:
Straight Reaming Blades
Min BoreParameter(in):
2"
Product Description

COMPANY PROFILE

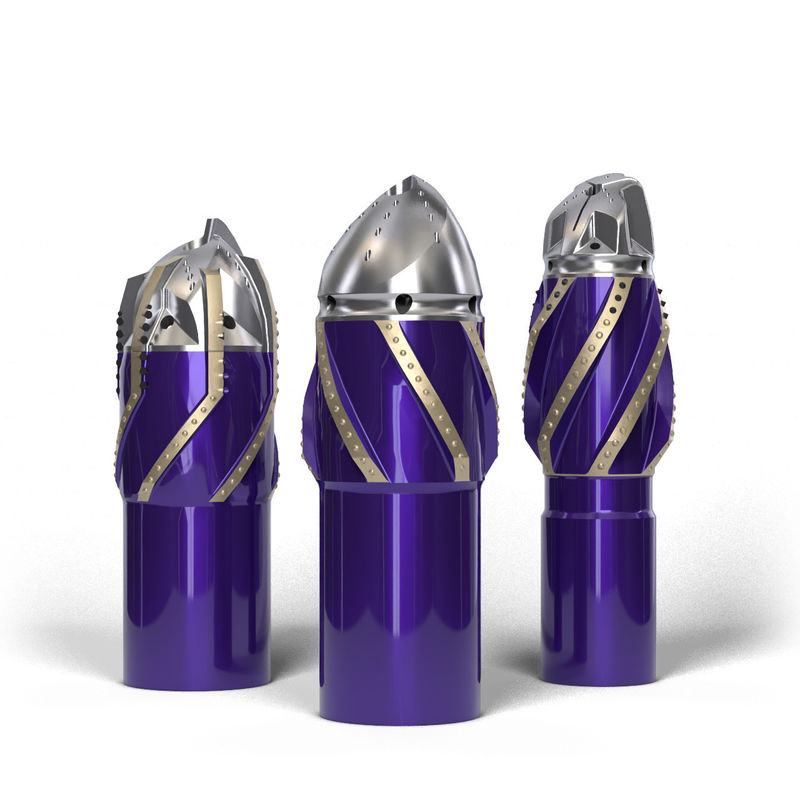

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 0

Jiangsu Service Petroleum Technology Co., Ltd. is committed to researching and supplying high-level petroleum downhole tools and drilling equipments, and has obtained the certificates of API Q1, API 5CT, ISO9001 quality system certification, 14001 environmental system certification, and 18001 occupational health system certification.

With over 15 years of manufacturing experience and successful collaborations with renowned oil extraction companies such as China National Petroleum Corporation, Sinopec, Shell, Mobil, and Husky Energy, we have established a reputation for delivering oil casing accessories that surpass industry standards, meeting the demanding requirements of challenging oilfield operations.

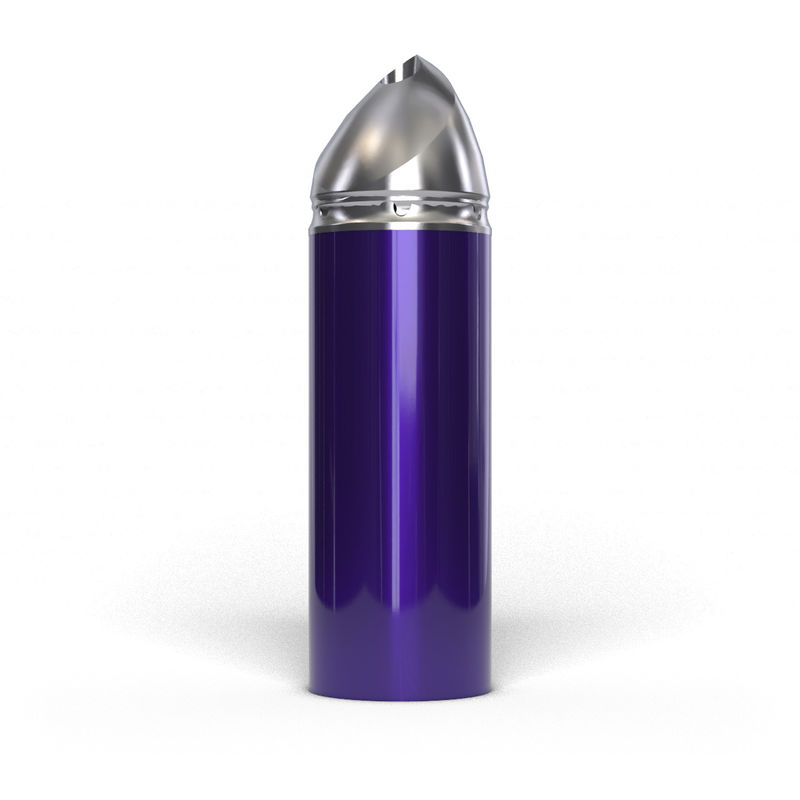

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 1

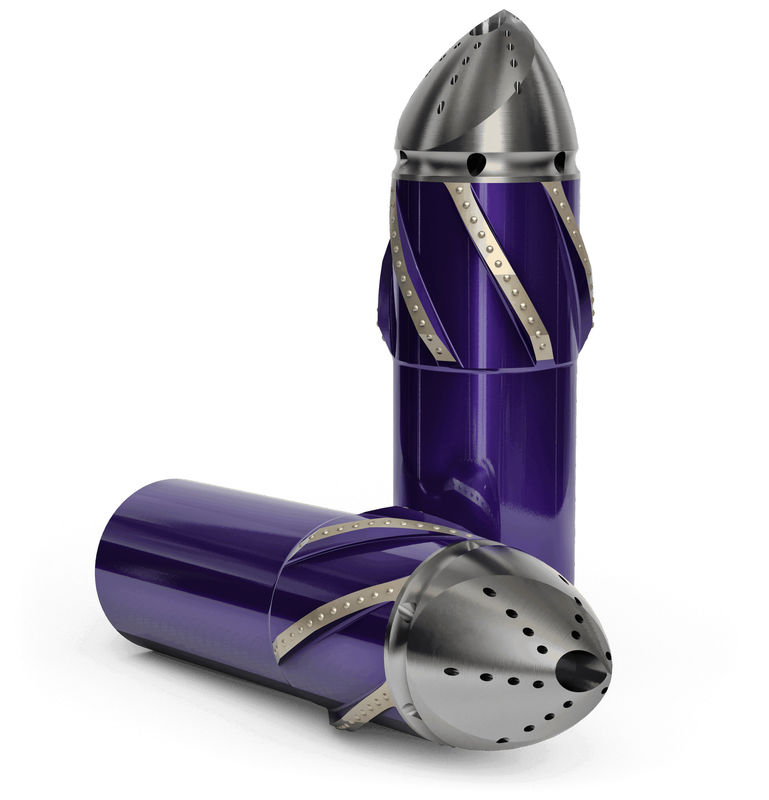

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 2

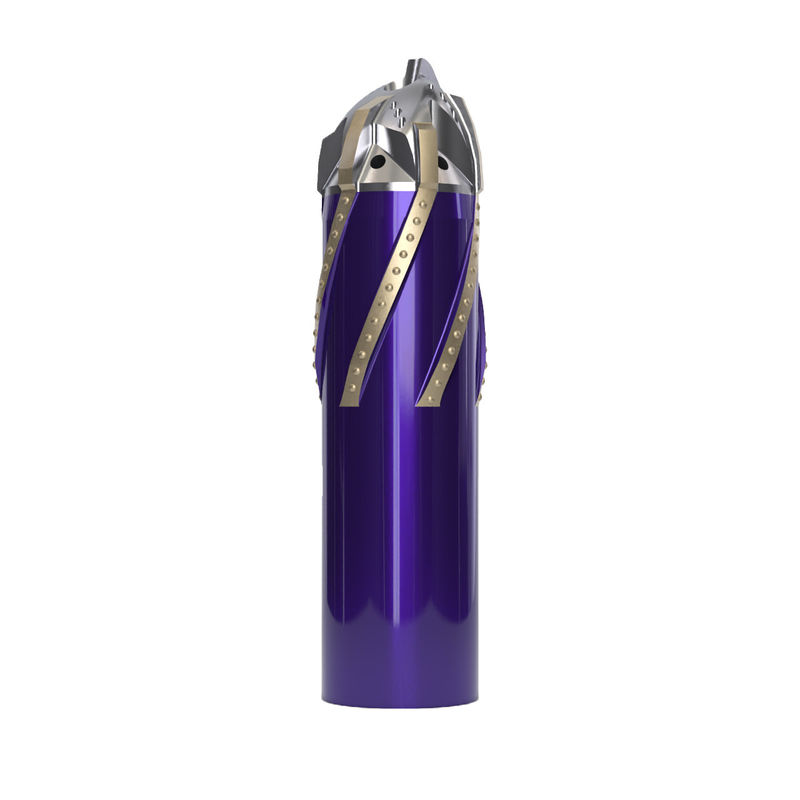

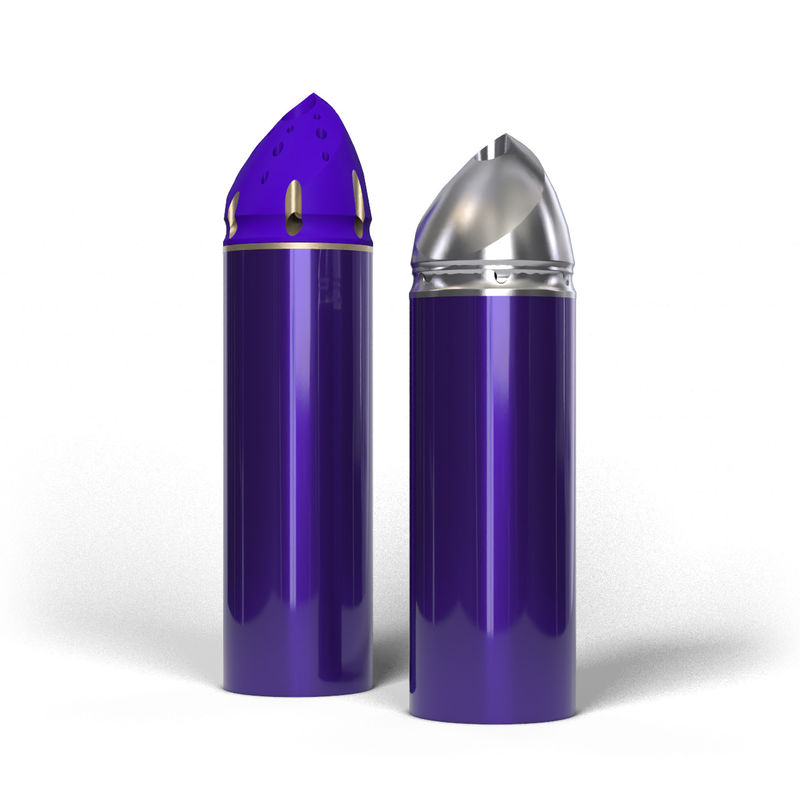

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 3LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 4LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 5LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 6LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 7





Products Description

Name Size(in) Bore O.D.(in) Bore I.D.(in) Min BoreParameter(in) Thread Type lb(in2)
Float Collar 5-1/2" 6" 4-3/4" 2" 5-1/2" LTC 4351
7" 7-5/8" 6-1/4" 2-3/8" 7" LTC 3626
9-5/8" 10-5/8" 8-5/8" 2-3/8" 9-5/8" LTC 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LTC 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LTC 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LTC 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LTC 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LTC 3626

Float equipment serves as the backbone of casing equipment used during primary cementing operations.

Float equipment guids the casing to total depth and prevents contaminated mud from entering the casing.

Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.
Hi Flow valves to reduce fluid erosion and minimize pressure drop. Hi Flow valves are manufactured in two sizes 70mm and 90mm.

PDC drillable composite plastic materials used for the valve components. Standard seal rated to 150°C with optional 204°C seal.
Valve body moduled with fibre phenolic,70MPa and 204°C seal.

Spring purchased from Canada victoryspring Company,phospher bronze C510 material,high restoring force and drillable. Plunger sealtop moduled with HNBR,70MPa and 204 seal.

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 8LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 9

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 10

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 11

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 12

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 13

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 14

LTC 5-1/2 N80 Cementing Straight Reaming Blades Float Shoe for  Oil Well or Gas Well 15
