Well Cementing Plug Polyurethane Liner Wiper Plug Oil Rig Equipment

Basic Properties

Place of Origin: CHINA

Brand Name: SWS

Trading Properties

Minimum Order Quantity: MOQ as per type requirements

Price: Details pls contact our staff

Payment Terms: T/T or LC irrevocable In sight

Supply Ability: As requirement

Anti Rotation Bottom Plug Cementing

Polyurethane Liner Wiper Plug

Specifications

Name:	Cementing Plug	Type:	Top Or Bottom Plug
Advantage:	Anti Rotation	Advantage2:	Floatation Control Value
Function:	PDC Drillable	Structure:	Non-rotational
High Light:	Well Cementing Plug , Polyurethane Liner Wiper Plug , Polyurethane Cementing Plug

Product Description

4-1/2 Standard Cementing Plug For Well Cementing,Oil Rig Equipment, Drilling Special Tools Cementing Plug

Non-Rotary Cementing/Wiper Plugs (Polyurethane)
This plug is used to separate the cement slurry from other fluids, reduce contamination, and maintain predictable slurry
performance and to clean various waste in the wall of the casing. Two types of cementing plugs are typically used on a cementing operation. The bottom plug is launched ahead of the cement slurry to minimize contamination by fluids inside the casing prior to cementing. A diaphragm in the plug body ruptures under 250~400psi easily to allow the cement slurry to pass through after the plug reaches the landing collar. The top plug has a solid body that provides positive indication of contact with the landing collar and bottom plug through an increase in pump pressure. This plug is tested strictly every batch by pressure chambers at different required pressure and temperature.

Cementing plugs are used to remove the mud during cementing operations.

Top cementing plugs and bottom cementing plugs are used in the cementing process. The top and bottom

cementing plus general have different colors (bottom plugs are red and top plugs are black) in

production for easy usage in operation.

The top cementing plug has a solid body that provides positive indication of contact with

cementing floating collar and bottom plug through an increase in pump pressure.

The bottom cementing plug with a hollow body is installed ahead of the cement slurry to

minimize contamination by fluids inside the casing prior to cementing.

ADVANTAGES AND MAIN FEATURES

Non-rotating cementing plugs are designed to decrease the drill out times. Reinforced locking teeth are

built into the plugs, which lock together between the plug and the float equipment to eliminate rotation

of the plug during drill out. The top cementing plug are latched to the anti-rotational float collar.

Performance features

› Non-rotational.

› Decrease drill out time.

› PDC drillable.

Options

› Available in sizes from 4-1/2" to 20".

› Available in NR, SBR, NBR and HNBR grades.

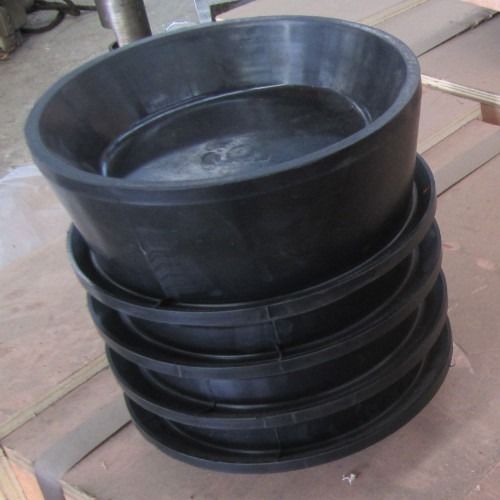

Well Cementing Plug Polyurethane Liner Wiper Plug Oil Rig Equipment 0

Well Cementing Plug Polyurethane Liner Wiper Plug Oil Rig Equipment 1

Casig size inch	Casing weight range		O.D. of rubber cup		Working Temperature	Working pressure mpa	burst pressure mpa	hardness
4-1/2.	14.14-17.26 kg/m	9.5-11.6 lb/ft	110mm	4.331inch	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
5	17.11-35.86 kg/m	11.5-24.1 lb/ft	122mm	2.803inch	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
5-1/2.	20.83-39.88	14-26.8	135	5.315	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
7	25.3-56.55	17-28	170	6.693	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
7-5/8.	35.72-63.69	24-42.8	185	7.283	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
9-5/8.	53.57-79.62	36-53.5	235	9.252	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
10-3/4.	60.27-97.77	40.5-65.7	260	10.236	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
13-3/8.	71.43-107.15	48-72	333	13.110	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
20	139.89-197.93	94-133	498	19.606	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
