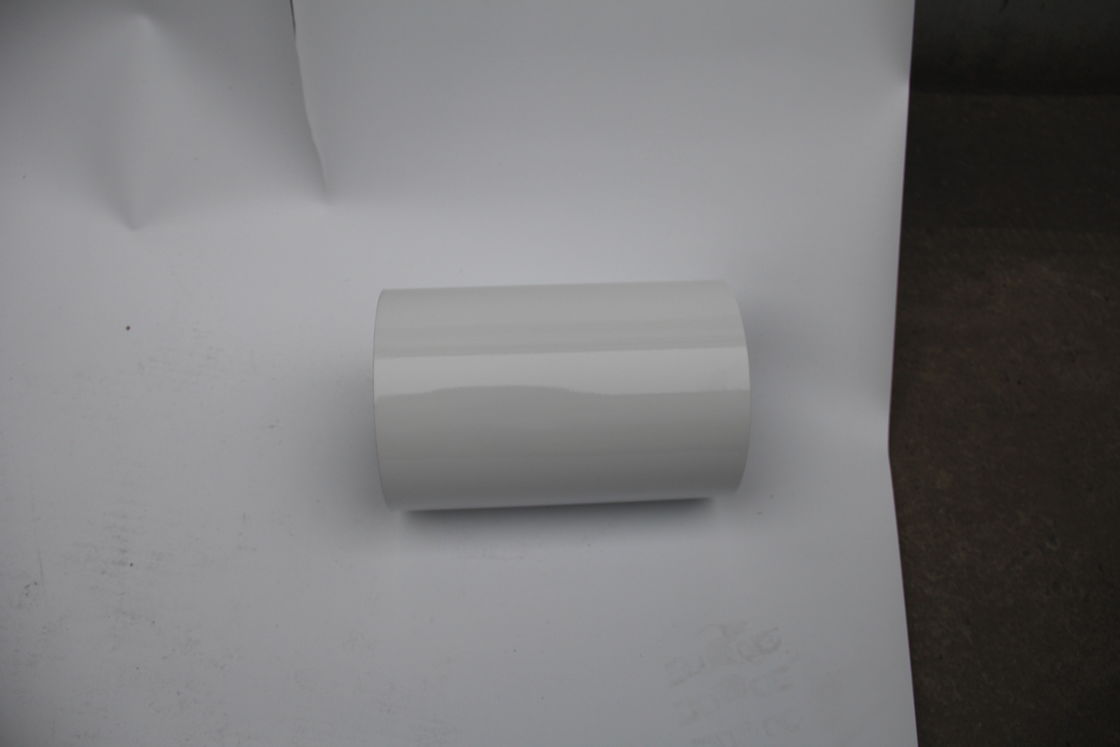

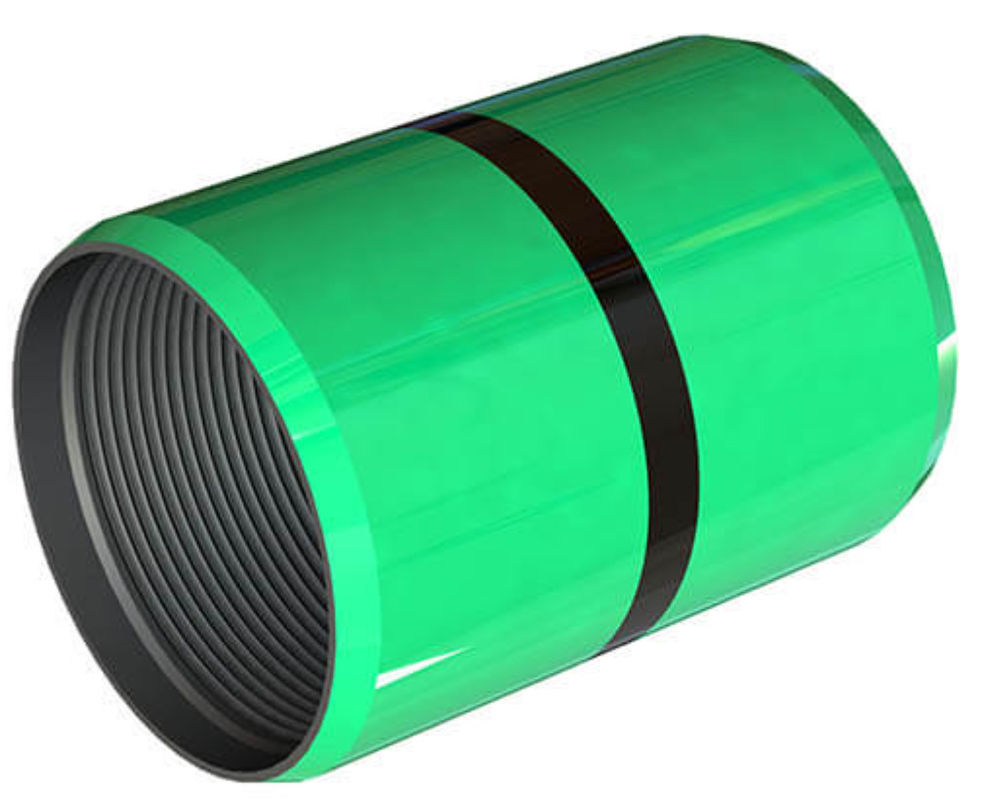

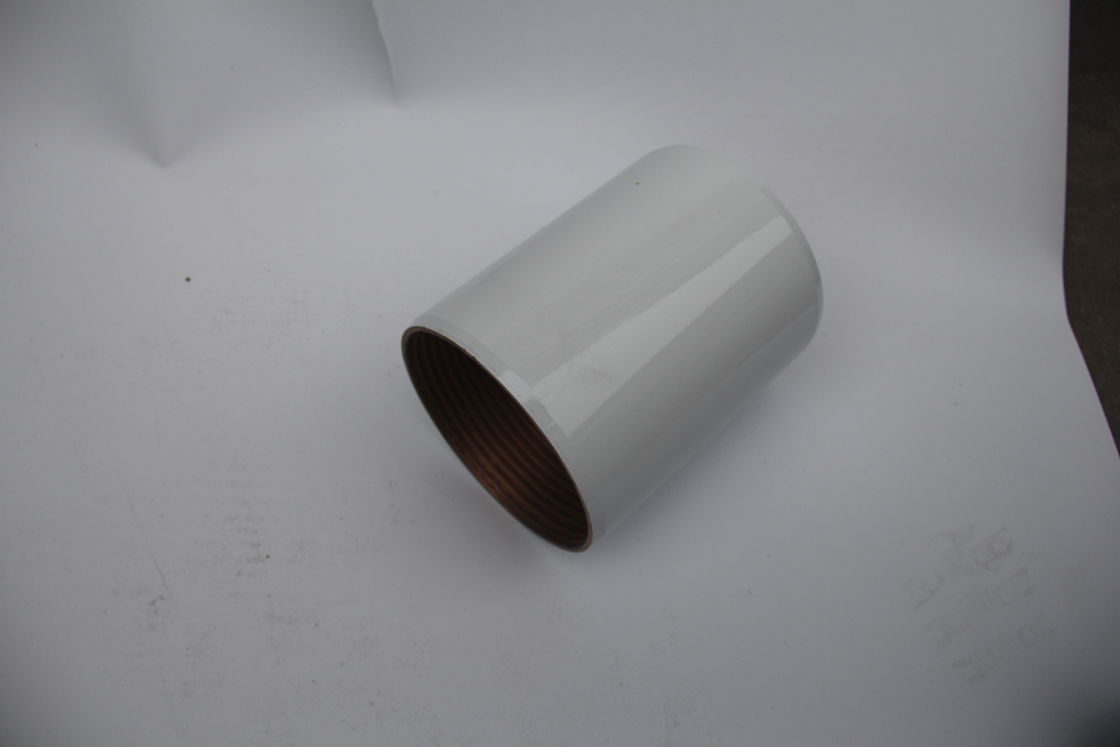

K55 OD 88.9 Oilfield Couplings API 5CT Oil Tubing Coupling Size 3-1/2

K55 OD 88.9 Oilfield Couplings API 5CT Oil Tubing Coupling Size 3-1/2

OD 88.9 Oilfield Couplings

K55 Oilfield Couplings

API 5CT Oil Tubing Coupling

Place of Origin:

CHINA

Brand Name:

SWS

Certification:

CE,CO,ISO

Contact Us

Request A Quote
Product Details
Name:
EUE Coupling
Size:
3-1/2.
Standards:
API 5CT
Grades:
J/K55, N80-1/Q, L80-1, 80SS, L80-3Cr, L80 13Cr, L80-9CR, Super 13Cr, P110, P110-13CR, TP110S
Size Range:
OD-55.88mm-141.3mm (1.9''-4-1/2'')
Thread Buckle Type:
No Thickening (NUE), Thickening (EUE), Special Clearance (SCC)
Manufacturing Type:
Seamless
Inspection:
NDT And Etc As Per Api 5ct And 5b
Product Description

Size 2-3/8. TUBING OD 60.32 API 5CT No Thickening (NUE) J/K55 Process Threads Oilfield CouplingsL:



Size3-1/2.TUBING OD 88.9 API 5CT No Thickening (NUE) J/K55 Process Threads Oilfield Couplings



Product Name: Tubing Coupling, Oil Tubing Coupling ,EUE Coupling ,NUE  Coupling

Standards: API SPEC 5CT, API SEPC 5B, API-7

Material/Steel Grade: J/K55, N80, L80-1, 80SS, L80-3Cr, L80 13Cr, L80-9CR, Super 13Cr, P110, P110-13CR, TP110S, etc.

Specifications: OD-55.88mm-141.3mm (1.9''-4-1/2'')

Thread buckle type: no thickening (NUE), thickening (EUE), special clearance (SCC)



1. Reputed company with a strong customer base and good track record
2. Prompt delivery
3. We accept all types of payment
4. dedicated English-speaking sales team



The external thickening process is a complex composite process of upsetting, diameter expansion and extrusion.



The purpose of thickening is to enhance the strength of the threaded connection of the oil pipe, increase the service life of the threaded connection, avoid breakage at this place, and prolong the life of the oil pipe and prevent accidents!



The types are divided into: common shorts are divided into ordinary shorts, double male shorts, and overall thickened shorts



Ordinary short connection: divided into flat type (NUE) oil pipe short connection and thickened (EUE) oil pipe short connection.

The processing is to directly process threads at both ends, and the thickened short connection is to pass through the thickening of the nozzle, the outer diameter of the nozzle becomes larger, the wall thickness is thickened, and then the thread is processed.

This in turn increases the strength and torque of the threads.



Double male short connection: one end of the standard short connection is a male thread, and the other end is a female buckle (coupling or direct processing), while the duplex short connection is a male thread at both ends, without a coupling or without a female buckle.



After the oil pipe end is heated, it is sent to the thickening equipment for upsetting.



Make the tubing end plastically deformed (the inner diameter of the pipe end does not change, and the wall thickness of the pipe end and the effective length of the thick wall section are increased).



In order to achieve the purpose of thickening the pipe end.




Size TUBING OD COUPLING OD Recommend size for coupling stock
1.9 48.26 55.88 55.9x8
2-3/8. 60.32 73.02 73*11
2-7/8. 73.02 88.9 88.9*12.5
3-1/2. 88.9 107.95 108*15
4 101.6 120.65 120.7*15.5
4-1/2. 114.3 132.08 132*15



K55 OD 88.9 Oilfield Couplings API 5CT Oil Tubing Coupling Size 3-1/2 0

K55 OD 88.9 Oilfield Couplings API 5CT Oil Tubing Coupling Size 3-1/2 1

FAQ
1. who are we?
We are based inJiangsu, China, start from 2011,sell to North America(85.00%),South America(5.00%),Africa(2.00%),South Asia(2.00%),Southeast Asia(2.00%),Mid East(2.00%),Central America(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Oil casing collar,Pup joint,Crossover,Float hoop float shoes,Downhole Oil Tools

4. why should you buy from us not from other suppliers?
LOCATED IN THE BASE OF MANUFACTURE OF OIL-FIELD EQUIPMENT AND MACHINERY, WE CAN SUPPLY ALL KINDS OF DOWN-HOLE TOOLS , EQUIPMENT AND ACCESSARIES OF PIPES IN THE OIL FIELD.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD;
