TUBING COUPLINGS; SMLS; EUE &NUE COUPLINGS; OILFIELD TOOLS;COUPLING STOCK MATERIAL:

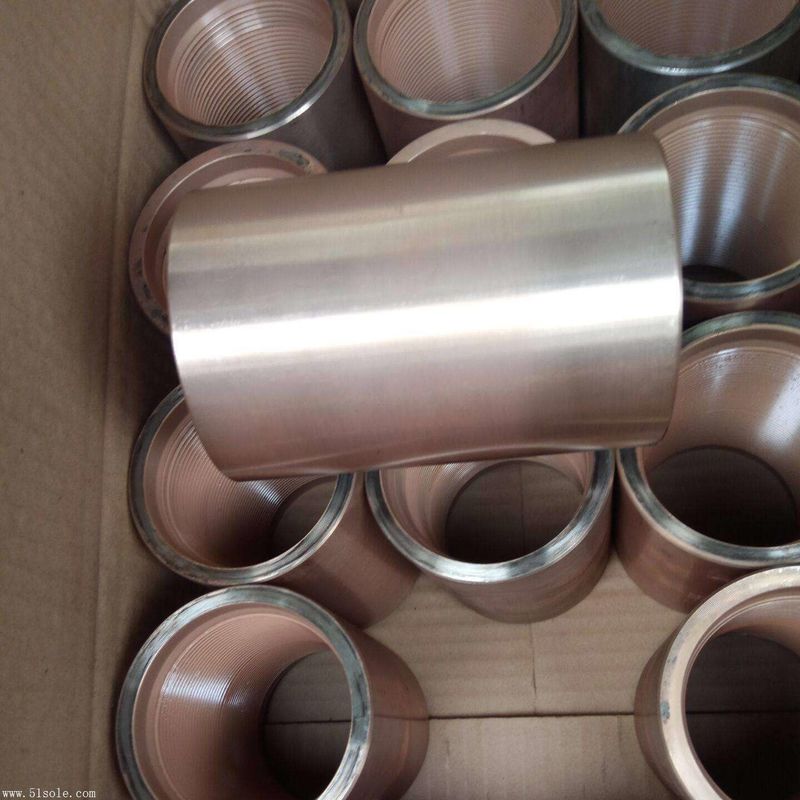

Size 1.9 TUBING OD 48.26 API 5CT No Thickening (NUE) J/K55 Process Threads Oilfield Couplings
The external thickening process is a complex composite process of upsetting, diameter expansion and extrusion.
The purpose of thickening is to enhance the strength of the threaded connection of the oil pipe, increase the service life of the threaded connection, avoid breakage at this place, and prolong the life of the oil pipe and prevent accidents!

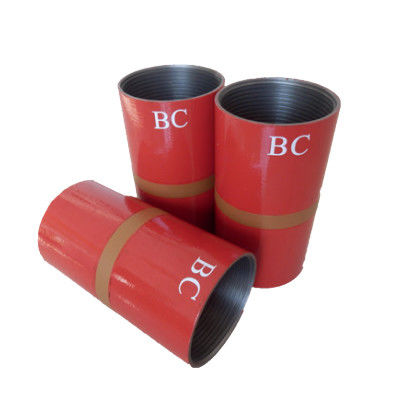

Product Name: Tubing Coupling, Oil Tubing Coupling ,EUE Coupling ,NUE Coupling
Standards: API SPEC 5CT, API SEPC 5B, API-7
Material/Steel Grade: J/K55, N80, L80-1, 80SS, L80-3Cr, L80 13Cr, L80-9CR, Super 13Cr, P110, P110-13CR, TP110S, etc.
Specifications: OD-55.88mm-141.3mm (1.9''-4-1/2'')
Thread buckle type: no thickening (NUE), thickening (EUE), special clearance (SCC)
The types are divided into: common shorts are divided into ordinary shorts, double male shorts, and overall thickened shorts
Ordinary short connection: divided into flat type (NUE) oil pipe short connection and thickened (EUE) oil pipe short connection.
The processing is to directly process threads at both ends, and the thickened short connection is to pass through the thickening of the nozzle, the outer diameter of the nozzle becomes larger, the wall thickness is thickened, and then the thread is processed.
This in turn increases the strength and torque of the threads.
Double male short connection: one end of the standard short connection is a male thread, and the other end is a female buckle (coupling or direct processing), while the duplex short connection is a male thread at both ends, without a coupling or without a female buckle.
After the oil pipe end is heated, it is sent to the thickening equipment for upsetting.
Make the tubing end plastically deformed (the inner diameter of the pipe end does not change, and the wall thickness of the pipe end and the effective length of the thick wall section are increased).
In order to achieve the purpose of thickening the pipe end.
| Size | TUBING OD | COUPLING OD | Recommend size for coupling stock |
| 1.9 | 48.26 | 55.88 | 55.9x8 |
| 2-3/8. | 60.32 | 73.02 | 73*11 |
| 2-7/8. | 73.02 | 88.9 | 88.9*12.5 |
| 3-1/2. | 88.9 | 107.95 | 108*15 |
| 4 | 101.6 | 120.65 | 120.7*15.5 |
| 4-1/2. | 114.3 | 132.08 | 132*15 |
