Non Rotational PDC Top Plug Cementing NBR Cement Manufacturing Plug

NBR Cement Manufacturing Plug

Non Rotational Top Plug Cementing

PDC Top Plug Cementing

Place of Origin:

CHINA

Brand Name:

SWS

Request A Quote

Non Rotational PDC Top Plug Cementing NBR Cement Manufacturing Plug

Product Details

Type:

Top Or Bottom Plug

Advantage:

Anti Rotation

Advantage2:

Floatation Control Value

Function:

PDC Drillable

Structure:

Non-rotational

4 1/2 PDC Drillable Auto-Latch Cement Plug for Oil&Gas Well Safe Cementing with Water Based Drilling Mud

Get Best Price

4 1/2 PDC Drillable Auto Latch Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud

Get Best Price

5 1/2 PDC Drillable Auto-Latch Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud

Get Best Price

5 1/2 PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings

Get Best Price

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact Now

Product Description

CEMENTING PLUGS

NON-ROTATIONAL CEMENTING PLUG, CEMENTING TOOLS, CASING BUOYANCY SYSTEM PART, TOP OR BOTTOM , ANTI ROTATION

Cementing plugs are used to remove the mud during cementing operations.

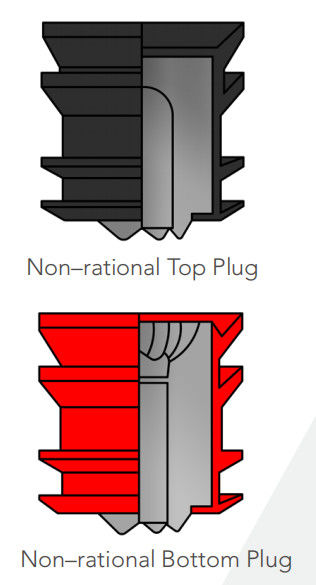

Top cementing plugs and bottom cementing plugs are used in the cementing process. The top and bottom

cementing plus general have different colors (bottom plugs are red and top plugs are black) in

production for easy usage in operation.

The top cementing plug has a solid body that provides positive indication of contact with

cementing floating collar and bottom plug through an increase in pump pressure.

The bottom cementing plug with a hollow body is installed ahead of the cement slurry to

minimize contamination by fluids inside the casing prior to cementing.

ADVANTAGES AND MAIN FEATURES

Non-rotating cementing plugs are designed to decrease the drill out times. Reinforced locking teeth are

built into the plugs, which lock together between the plug and the float equipment to eliminate rotation

of the plug during drill out. The top cementing plug are latched to the anti-rotational float collar.

Performance features

› Non-rotational.

› Decrease drill out time.

› PDC drillable.

Options

› Available in sizes from 4-1/2" to 20".

› Available in NR, SBR, NBR and HNBR grades.

Casig size inch	Casing weight range		O.D. of rubber cup		Working Temperature	Working pressure mpa	burst pressure mpa	hardness
4-1/2.	14.14-17.26 kg/m	9.5-11.6 lb/ft	110mm	4.331inch	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
5	17.11-35.86 kg/m	11.5-24.1 lb/ft	122mm	2.803inch	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
5-1/2.	20.83-39.88	14-26.8	135	5.315	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
7	25.3-56.55	17-28	170	6.693	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
7-5/8.	35.72-63.69	24-42.8	185	7.283	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
9-5/8.	53.57-79.62	36-53.5	235	9.252	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
10-3/4.	60.27-97.77	40.5-65.7	260	10.236	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
13-3/8.	71.43-107.15	48-72	333	13.110	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
20	139.89-197.93	94-133	498	19.606	(-30℃-150℃)	≥15mpa	1-2mpa	75-95
