Aluminum Centralizer Casing Accessories Solid Centralizer Straight Or Spiral Blade
| Structure: | One Piece Structure | Function: | Improve Cemnet Flow |
| Type: | Straight Blade Or Spiral Blade | Material: | Aluminum |
| High Light: | Aluminum Centralizer Casing Accessories,Aluminum Solid Centralizer,Spiral Blade Solid Centralizer |
||
CASING CENTRALIZER, ALUMINUM CENTRALIZER , OILFIELD TOOLS, CASING ACCESSORIES
ADVANTAGES AND MAIN FEATURES
1- The rigid centralizers are generally constructed in one piece to add greater strength and are held in place by high loads top collars or set screws
2- The tools are designed to improve cement flow while promoting max standoff from the boreholes.

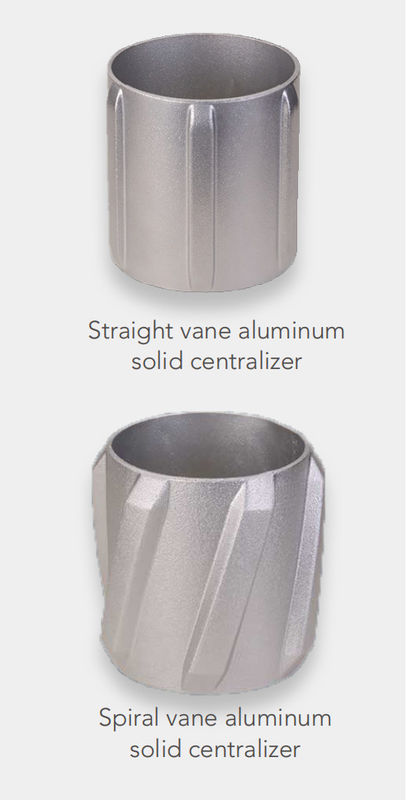

3-Provide either straight blade or spiral blade.
4 - Can provide aluminum alloy material, and cast steel material
| inside diameter mm | height mm | total height mm | max outside diameter mm |
| 128-131 | 110 | 650 | 175 |
| 130-132 | 110 | 650 | 170 |
| 128-131 | 105 | 690 | 330 |
| 128-131 | 105 | 720 | 535 |
| 142-148 | 55 | 650 | 215 |
| 142-148 | 55 | 650 | 225 |
| 142-148 | 110 | 650 | 225 |
| 156-158 | 55 | 650 | 235 |
| 181-186 | 55 | 650 | 235 |
| 181-186 | 110 | 650 | 235 |
| 181-186 | 55 | 650 | 255 |
| 181-186 | 110 | 650 | 255 |
| 196-200 | 110 | 650 | 250 |
| 197-201 | 55 | 650 | 275 |
| 197-201 | 55 | 650 | 275 |
| 223-228 | 55 | 650 | 330 |
| 250-255 | 55 | 650 | 330 |
| 250-255 | 110 | 650 | 330 |
| 274-276 | 55 | 650 | 330 |
| 274-276 | 110 | 650 | 330 |
| 342-347 | 55 | 650 | 450 |
| 342-347 | 110 | 650 | 450 |
| 476 | 55 | 600 | 610 |
| 510 | 55 | 600 | 660 |
