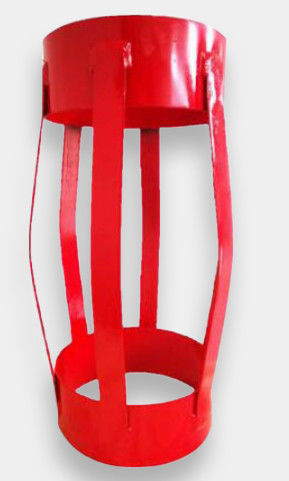

Slip On Welded Bow Spring Centralizer Casing Accessories For Vertical Wellbore
| Ability: | More Restoring Force | Standards: | API 10D Requirements |
| Well conditions: | Suited For Vertical And Deviated Wellbore | Design: | Welded Design |
| High Light: | Slip On Welded Bow Spring Centralizer,Bow Spring Centralizer Casing,Centralizer Casing Accessories |
||
CASING CENTRALIZER, SLIP-ON WELDED BOW SPRING CENTRALIZER ,OILFIELD TOOLS, CASING ACCESSORIES
ADVANTAGES AND MAIN FEATURES
| hopping 1.D. (mm) | hooping thickness(mm) | total length(mm) | max od | amounts of spring(mm) |
| 142-148 | 3-5 | 650±50 | 225±5 | 5 |
| 181-186 | 3-5 | 650±50 | 255±5 | 6 |
| 181-186 | 3-5 | 650±50 | 235±5 | 7 |
| 223-228 | 3-5 | 650±50 | 330±5 | 8 |
| 250-255 | 3-5 | 650±50 | 330±5 | 8 |
| 274-276 | 3-5 | 650±50 | 330±5 | 9 |
| 342-347 | 3-5 | 650±50 | 450±5 | 11 |
| 475-477 | 3-5 | 600±50 | 610±5 | 12 |
| 509-511 | 3-5 | 600±50 | 660±5 | 12 |
