Hinged Welded Bow Spring Centralizer Casing Accessories API 10D Standard

Hinged Welded Bow Spring Centralizer Casing Accessories API 10D Standard

Hinged Welded Bow Spring Centralizer

Bow Spring Centralizer Casing Accessories

API 10D Bow Spring Centralizer

Place of Origin:

CHINA

Brand Name:

SWS

Contact Us

Request A Quote
Product Details
Ability:
More Restoring Force
Standards:
API 10D Requirements
Well Conditions:
Suited For Vertical And Deviated Wellbore
Design:
Welded Design
Product Description

CASING CENTRALIZER, HINED WELDED BOW SPRING CENTRALIZER ,OILFIELD TOOLS, CASING ACCESSORIES





ADVANTAGES AND MAIN FEATURES





 It has more restoring force than non-welded centralizers.
› The bow springs are strongly welded to the end collar under required temperature and condition with
extra low hydrogen coated electrodes.
› Hinged design is easy to transport, store and installation.
› End collars are designed with a reinforcing rib stamped into the end collar to give maximum
structural toughness.
› Bow spring heights can be adjustable.
›Available in sizes 4-1/2" to 20" and special sizes are also available.

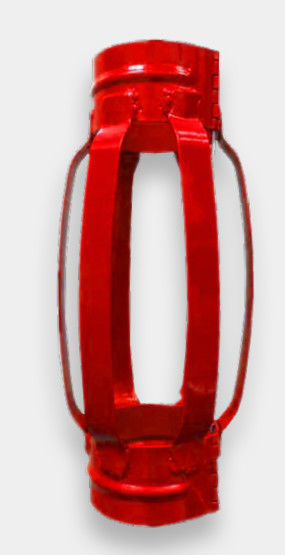

Hinged Welded Bow Spring Centralizer Casing Accessories API 10D Standard 0

Hinged Welded Bow Spring Centralizer Casing Accessories API 10D Standard 1

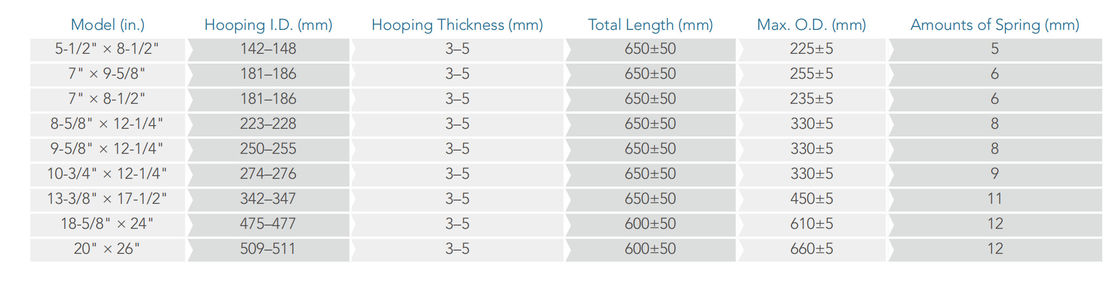

hopping 1.D. (mm) hooping thickness(mm) total length(mm) max od amounts of spring(mm)
142-148 3-5 650±50 225±5 5
181-186 3-5 650±50 255±5 6
181-186 3-5 650±50 235±5 7
223-228 3-5 650±50 330±5 8
250-255 3-5 650±50 330±5 8
274-276 3-5 650±50 330±5 9
342-347 3-5 650±50 450±5 11
475-477 3-5 600±50 610±5 12
509-511 3-5 600±50 660±5 12
