Blue 80S Stage Cementing Collar Multi Stage Cement Injector

Blue 80S Stage Cementing Collar Multi Stage Cement Injector

80S Stage Cementing Collar

Multi Stage Cement Injector

Blue Stage Cementing Collar

Place of Origin:

CHINA

Brand Name:

SWS

Contact Us

Request A Quote
Product Details
Size Range:
4-1/2''~7''
Color:
As Required
Product Description

80S STAGE COLLOAR , STAGE CEMENTING TOOLS, DRILLING TOOLS

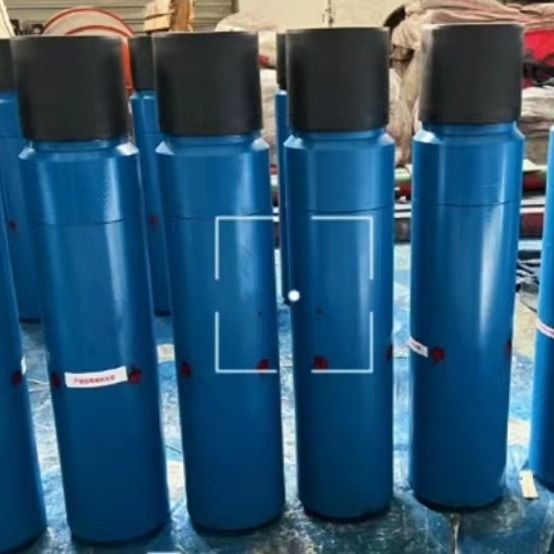

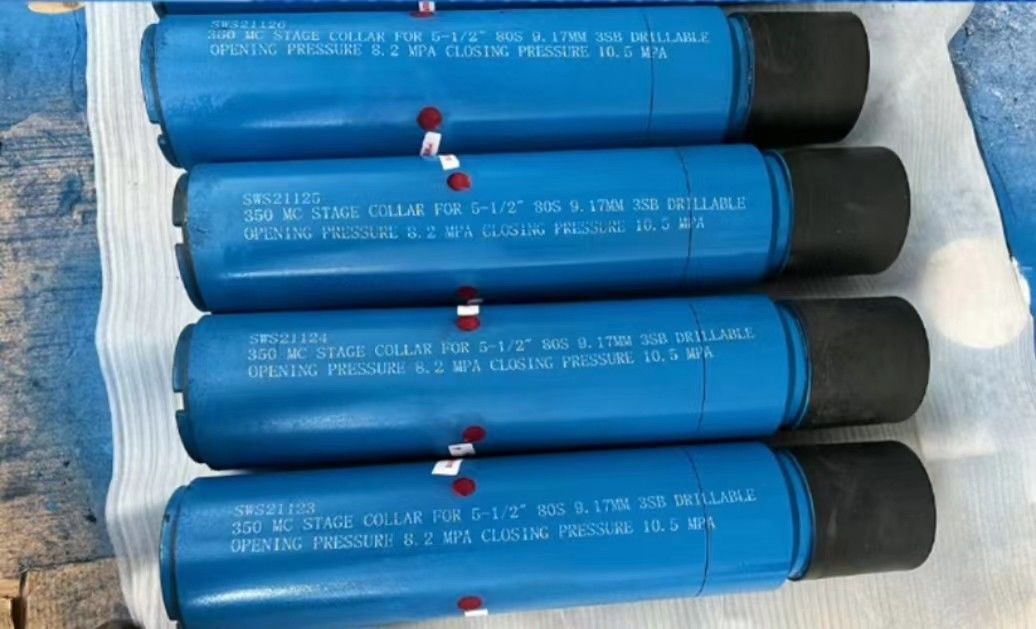

The stage collar, or stage cement injector, is mainly used in multistage cement injection and cementing projects to achieve the cementing effect through stage cement injection and solve the problem of poor one-time cementing effect.





mainly the stage collar can be divided into three types:



1- Mechanical stage collar

2- Hydraulic stage collar

3- Needless drilling stage collar





Blue 80S Stage Cementing Collar Multi Stage Cement Injector 0Blue 80S Stage Cementing Collar Multi Stage Cement Injector 1Blue 80S Stage Cementing Collar Multi Stage Cement Injector 2Blue 80S Stage Cementing Collar Multi Stage Cement Injector 3Blue 80S Stage Cementing Collar Multi Stage Cement Injector 4



size weight range maximum od maximum drill out id overall length
in(mm) lb/ft(wall mm) in(mm) in(mm) in(mm)
4-1/2(114.3) 9.5 to11.6(5.2 to 6.35) /11.6 to 15.1(6.35 to 8.56) 5.562(141.3) 3.975(101.0)/3.890(98.80) 25.0(635)
5-1/2(139.7) 14.0(5.69)/15.5 to 17.0(6.99 to 7.72)/ 17.0 to 23.0(7.72 to 10.54) 6.63(168.4) 4.897(124.4)/4.835(122.8)/4.77(121.3) 25.2(641)
6-5/8(168.3) 17.0(6.22)/24.0 to 32.0 (8.94 to 12.07) 7.88(200) 6.0(152.0)/5.625(142.8)

26(662)



7(177.8) 23.0 to 26.0 (8.05 to 9.19)/26.0 to 32.0(9.19 to 11.51) 8.15(207) 6.251(158.7)/6.161(156.5) 26(662)
7-3/4(196.9) 20.0 to 29.7(6.35 to 9.53)/29.7 to 42.8(9.53 to 14.27) 9.0(228.6) 6.251(158.7)/6.161(156.5) 27.9(709)
7-7/8(200.0) 24.1 to 46.1 (10.92 to 15.11) 9.0(228.6) 6.25(159.1) 27.9(709)
9-5/8(244.5) 32.3 to 40.0(48.1 to 59.5)/40.0 to 47.0(59.5 to 69.9)/43.5 to 53.5(64.7 to 79.6) 11.25(282.6) 8.855(224.9)/8.689(220.7)/8.609(218.7) 28.9(732)
10-3/4(273.1) 32.75 to 40.5(48.1 to 59.5)/40.0 to 47.0(59.5 to 69.9)/43.5 to 53.5(64.7 to 79.6) 12.0(305.0) 8.855(224.9)/8.689(220.7)/8.609(218.7) 30(761)
13-3/8 (340) 61.0to 72.0(90.78 to 107.15) 15(381) 12.25(311.1) 35.13(892.3)
14-3/8(365) 13.88mm wall 15.75(400.5) 13.285(337.4) 35.13(892.3)
