150 SERIES CEMENT BASKET, CEMENTING TOOLS
150 SERIES CEMENT BASKET, CEMENTING TOOLS, OILFIELD TOOLS , CASING ACCESSORIES
ADVANTAGES AND MAIN FEATURES
1-Cement basket is used in stage cementing to prevent cement column from displacing downwards the drilling fluid.
2- Cement basket should be installed on the bottom of the formation where cementation is required.
3-Cement basket is usually installed on the casing over the weak formations to support long columns of cement and prevent the weak
formations from the pressure of cement column.
4 -Petals are arranged in an over-lapping pattern that allows for maximum flexibility and fluid passage from below.

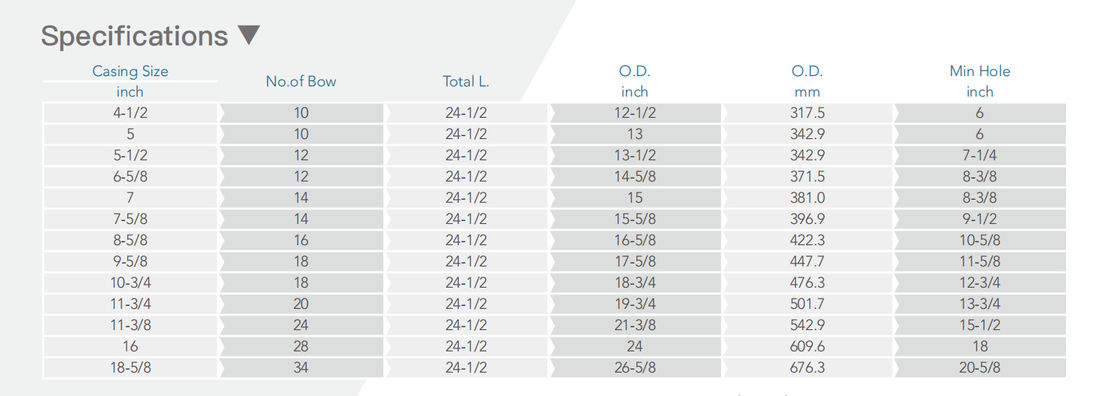

| Casing Size | No.of bow | Total L | O.D. inch |
O.D. mm |
Min Hole | |||
| 4-1/2 | 10 | 24-1/2 | 12-1/2 | 317.5 | 6 | |||
| 5 | 10 | 24-1/2 | 13 | 342.9 | 6 | |||
| 5-1/2 | 12 | 24-1/2 | 13-1/2 | 342.9 | 7-1/4 | |||
| 6-5/8 | 12 | 24-1/2 | 14-5/8 | 371.5 | 8-3/8 | |||
| 7 | 14 | 24-1/2 | 15 | 381.0 | 8-3/8 | |||
| 7-5/8 | 14 | 24-1/2 | 15-5/8 | 396.9 | 9-1/2 | |||
| 8-5/8 | 16 | 24-1/2 | 16-5/8 | 422.3 | 10-5/8 | |||
| 9-5/8 | 18 | 24-1/2 | 17-5/8 | 447.7 | 11-5/8 | |||
| 10-3/4 | 18 | 24-1/2 | 18-3/4 | 476.3 | 12-3/4 | |||
| 11-3/4 | 20 | 24-1/2 | 19-3/4 | 501.7 | 13-3/4 | |||
| 11-3/8 | 24 | 24-1/2 | 21-3/8 | 542.9 | 15-1/2 | |||
| 16 | 28 | 24-1/2 | 24 | 609.6 | 18 | |||
| 18-5/8 | 34 | 24-1/2 | 26-5/8 | 676.3 | 20-5/8 | |||
