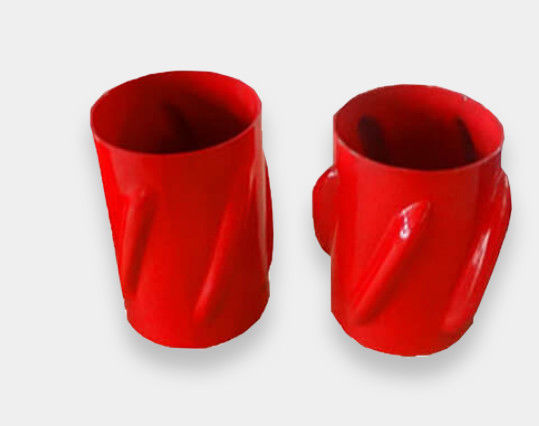

Red Oilfield Composite Centralizer 109 Series Well Casing Centralizers
| Ability: | High Temperature Resistance | Function: | Improve Impact Loading |
| Function2: | Lightweight And Easy Handling | Standards: | API 10D Requirements |
| High Light: | Oilfield Composite Centralizer,109 Series Well Casing Centralizers,Red Oil Composite Centralizer |
||

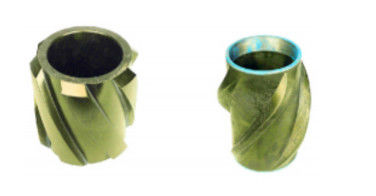

109 SERIES CASING CENTRALIZER, COMPOSITE CENTRALIZER
CASING CENTRALIZER, 109 SERIES CASING CENTRALIZER, COMPOSITE CENTRALIZER , OILFIELD TOOLS,CASING ACCESSORIES
ADVANTAGES AND MAIN FEATURES
1-The one-piece composite construction can withstand high-impact loading and resist wear in high temperatures;
2- The passive blade configuration capitalizes on the sled effect to minimize drag forces while running pipe.
The blades glide smoothly on the low side of the wellbore and freely over obstructions;
3-The hydrodynamic shape of the blades enables optimal displacement during primary cementing, which minimizes pressure drop and increases
local turbulences across the centralizer;
4 -The composite is ultrahard and extremely durable, which enables the centralizer to maintain integrity in extreme wellbore temperatures.
5-The lightweight construction allows for easier and safer handling when making up casing.
| inside diameter mm | height mm | total height mm | max outside diameter mm |
| 128-131 | 110 | 650 | 175 |
| 130-132 | 110 | 650 | 170 |
| 128-131 | 105 | 690 | 330 |
| 128-131 | 105 | 720 | 535 |
| 142-148 | 55 | 650 | 215 |
| 142-148 | 55 | 650 | 225 |
| 142-148 | 110 | 650 | 225 |
| 156-158 | 55 | 650 | 235 |
| 181-186 | 55 | 650 | 235 |
| 181-186 | 110 | 650 | 235 |
| 181-186 | 55 | 650 | 255 |
| 181-186 | 110 | 650 | 255 |
| 196-200 | 110 | 650 | 250 |
| 197-201 | 55 | 650 | 275 |
| 197-201 | 55 | 650 | 275 |
| 223-228 | 55 | 650 | 330 |
| 250-255 | 55 | 650 | 330 |
| 250-255 | 110 | 650 | 330 |
| 274-276 | 55 | 650 | 330 |
| 274-276 | 110 | 650 | 330 |
| 342-347 | 55 | 650 | 450 |
| 342-347 | 110 | 650 | 450 |
| 476 | 55 | 600 | 610 |
| 510 | 55 | 600 | 660 |
