Casing Roller Centralizer API10D Solid Body Centralizers 108 SERIES

Basic Properties
Place of Origin: CHINA
Brand Name: SWS
Model Number: 108 SERIES
Trading Properties
Minimum Order Quantity: MOQ as per type requirements
Price: Details pls contact our staff
Payment Terms: T/T or LC irrevocable In sight
Supply Ability: As requirement
Tags

Aluminum Centralizer Casing Accessories

Turbolizer Centralizer Bow Spring

API 10D Bowspring Centralizer
Specifications
Structure: Roller Available Function: Remove Wellbore Cake
Well condition: High Deviated Wells And Horizontal Wells Standards: API10D
High Light:

Casing Roller Centralizer

,

Roller Centralizer API10D

,

API10D Solid Body Centralizers
Product Description

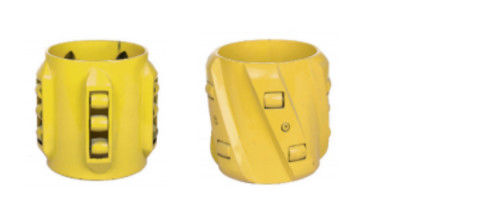

108 SERIES CASING CENTRALIZER, ROLLER  CENTRALIZER



CASING CENTRALIZER, 108 SERIES CASING CENTRALIZER, ROLLER CENTRALIZER , OILFIELD TOOLS,CASING ACCESSORIES

ADVANTAGES AND MAIN FEATURES





1- The roller centralizer consists of rigid body, on which machined spiral blades or straight blades.



2- There are modified alloy steel, fully heat treated rollers fixed on every blade.



3-Roller centralizers are mainly used for big high roller, high deviated wells and horizontal wells, to center casings.



4 -Roller Centralizers can also remove wellbore cake and improve mud replacement efficiency.



5-Low torque and drag allows for rotation and reciprocation, providing improved mud displacement and cement jobs.







Casing Roller Centralizer API10D Solid Body Centralizers 108 SERIES 0



Casing Roller Centralizer API10D Solid Body Centralizers 108 SERIES 1

inside diameter mm height mm total height mm max outside diameter mm
128-131 110 650 175
130-132 110 650 170
128-131 105 690 330
128-131 105 720 535
142-148 55 650 215
142-148 55 650 225
142-148 110 650 225
156-158 55 650 235
181-186 55 650 235
181-186 110 650 235
181-186 55 650 255
181-186 110 650 255
196-200 110 650 250
197-201 55 650 275
197-201 55 650 275
223-228 55 650 330
250-255 55 650 330
250-255 110 650 330
274-276 55 650 330
274-276 110 650 330
342-347 55 650 450
342-347 110 650 450
476 55 600 610
510 55 600 660
