Non Welded Double Bowspring Centralizer Casing Accessories 102 SERIES
| Function: | Convenient For Assemble Ands Storage | Function 2: | Low Costs |
| Standards: | API 10D Requirements | Well condition: | Suited For Vertical And Deviated Wellbore |
| Design: | Non-weld Design | ||
| High Light: | Double Bowspring Centralizer,Non Welded Bowspring Centralizer,Bowspring Centralizer Casing |
||

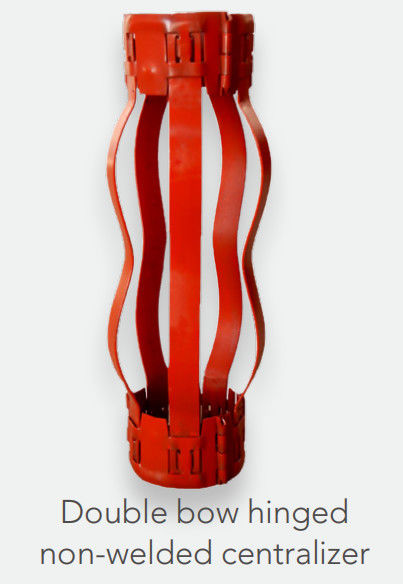

102 SERIES CASING CENTRALIZER, NON-WELDED DOUBLE BOW
102 SERIES CASING CENTRALIZER, NON-WELDED DOUBLE BOW, OILFIELD TOOLS
ADVANTAGES AND MAIN FEATURES
1- Provides superior standoff with reduced running forces when compared to conventional bow-spring centralizers.
2- All centralizer sizes have been tested and validated to meet API 10D requirements, providing reliablitity and durability during operations.
3- Suited for vertical and deviated wellbores. Primarily suited for horizontal and directional wellbores.
| hopping 1.D. (mm) | hooping thickness(mm) | total length(mm) | max od | amounts of spring(mm) |
| 142-148 | 3-5 | 650±50 | 225±5 | 5 |
| 181-186 | 3-5 | 650±50 | 255±5 | 6 |
| 181-186 | 3-5 | 650±50 | 235±5 | 7 |
| 223-228 | 3-5 | 650±50 | 330±5 | 8 |
| 250-255 | 3-5 | 650±50 | 330±5 | 8 |
| 274-276 | 3-5 | 650±50 | 330±5 | 9 |
| 342-347 | 3-5 | 650±50 | 450±5 | 11 |
| 475-477 | 3-5 | 600±50 | 610±5 | 12 |
| 509-511 | 3-5 | 600±50 | 660±5 | 12 |
