343 SERIES REAMER FLOAT SHOE
(INDEPEDENT) 343 SERIES REAMER FLOAT SHOE , CEMENTING TOOLS,FLOAT EQUIPMENT, WELL BORE TOOLS
ADVANTAGES AND MAIN FEATURES
1- The series 343 float shoes can be provided with many options to tailor the product for use in moderate to adverse well bore conditons

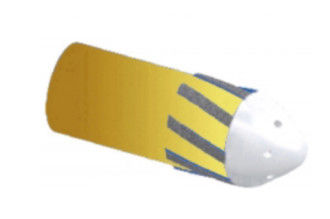

2- Helical Carbide Coated Blades that extend down the contour of the nose to the drill out diameter of the shoe.

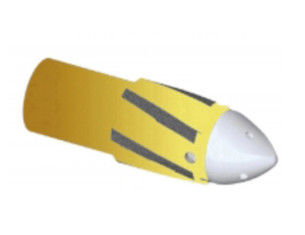

3- Bullet Nose with multiple down jets.
4-single and double valve shoes are available.
5- Eccentric nose with multiple down jets.
6-Helical or straight reaming pads with or without carbide coating.
7-Orifice fill float valves available
8-Auto fill values available
9-ball deflectors available
| Guide shoe, Float shoe& Float collar Dimensions |
|
|
|
|
|
|
Casing weight range |
|
|
|
| Size(casing O.D.) |
|
Type |
O.D. |
|
Drillout I.D. |
|
Float&Guide shoes |
|
Float collars |
|
| in |
mm |
|
in |
mm |
in |
mm |
lb/ft |
kg/m |
lb/ft |
kg/m |
| 4-1/2. |
114.3 |
Std |
5 |
127 |
4 |
101.6 |
9.5-13.5 |
14.15-20.11 |
9.5-13.5 |
14.15-20.11 |
| P.G. |
5 |
127 |
3.895 |
98.93 |
11.6-15.1 |
17.28-22.49 |
11.6-15.1 |
14.15-20.11 |
| 5 |
127 |
Std |
5.56 |
141.22 |
4.408 |
111.96 |
13-18 |
19.36-26.81 |
13-18 |
19.36-26.81 |
| P.G. |
5.56 |
141.22 |
4.389 |
111.48 |
13-18 |
19.36-26.81 |
13-18 |
19.36-26.81 |
| 5-1/2. |
139.7 |
Std |
6.05 |
153.67 |
4.907 |
124.64 |
14-23 |
20.85-34.26 |
14-23 |
20.85-34.26 |
| P.G. |
6.05 |
153.67 |
4.787 |
121.59 |
17-23 |
25.32-34.26 |
17-23 |
25.32-34.26 |
| 6-5/8. |
168.28 |
Std |
7.39 |
187.1 |
5.944 |
150.98 |
20-32 |
29.79-47.66 |
20-32 |
29.79-47.66 |
| P.G. |
7.39 |
187.1 |
5.944 |
150.98 |
20-32 |
27.79-47.66 |
20-32 |
27.79-47.66 |
| 7 |
177.8 |
Std |
7.66 |
194.56 |
6.351 |
161.32 |
20-35 |
29.79-52.13 |
20-32 |
29.79-47.66 |
| P.G. |
7.66 |
194.56 |
6.27 |
159.26 |
23-38 |
34.26-56.6 |
23-38 |
34.26-56.6 |
| 7-5/8. |
193.7 |
Std |
8.5 |
215.9 |
6.864 |
174.35 |
26.4-47.1 |
39.32-70.16 |
26.4-39 |
39.32-58.09 |
| P.G. |
8.5 |
215.9 |
6.864 |
174.35 |
26.4-47.1 |
39.32-70.16 |
26.4-39 |
39.32-58.09 |
| 8-5/8. |
219.1 |
Std |
9.63 |
244.6 |
7.992 |
203 |
24-49 |
35.75-72.99 |
24-49 |
35.75-72.99 |
| P.G. |
9.63 |
244.6 |
7.845 |
199.26 |
32-49 |
47.66-72.99 |
32-49 |
47.66-72.99 |
| 9-5/8. |
244.5 |
Std |
10.63 |
270 |
8.865 |
225.17 |
32.3-53.5 |
48.11-79.69 |
32.3-53.5 |
48.11-79.69 |
| P.G. |
10.63 |
270 |
8.699 |
220.96 |
40-71.8 |
59.58-106.85 |
40-58.4 |
59.58-86.99 |
| 10-3/4. |
273.1 |
Std |
11.75 |
298.45 |
10.056 |
255.42 |
32.75-65.7 |
48.78-97.86 |
32.75-55.5 |
48.78-82.67 |
| P.G. |
11.75 |
298.45 |
9.77 |
248.16 |
51-71.1 |
75.96-105.9 |
51-71 |
75.96-105.9 |
| 11-3/4. |
298.5 |
Std |
12.75 |
323.85 |
11.02 |
279.91 |
42-71 |
62.56-105.75 |
42-60 |
62.56-89.37 |
| P.G. |
12.75 |
323.85 |
10.77 |
273.56 |
54-71 |
80.43-105.75 |
54-71.1 |
80.43-105.81 |
| 13-3/8. |
339.7 |
Std |
14.38 |
365.25 |
12.579 |
319.51 |
48-72 |
71.5-107.24 |
48-72 |
71.5-107.24 |
| P.G. |
14.38 |
365.25 |
12.579 |
319.51 |
48-86 |
71.5-128.1 |
48-72 |
71.5-107.24 |
| 16 |
406.4 |
Std |
17 |
431.8 |
15.124 |
384.15 |
65-109 |
96.82-162.36 |
65-97 |
96.82-144.36 |
| 18-5/8. |
473.1 |
Std |
20 |
508 |
17.755 |
450.98 |
87.5-139 |
130.33-206.85 |
87.5-106 |
130.33-157.75 |
| 20 |
508 |
Std |
21 |
533.4 |
19.125 |
485.78 |
94-133 |
140.01-198.1 |
94-106.5 |
140.01-158.63 |
|
NOTES:
1. Std. grade equipment is made of K-55 material and is H2S resistant. Std. shoe equipment is suitable for use with all casing grades.
Std. collar equipment is suitable for use with API grades L-80/N-80 & lesser, including any similar proprietary grade of steel. P.G.
(Premium Grade) shoes and collars are made of high strength steel meeting or exceeding P-110 specifications.
When it is necessary that a shoe or collar meet exact chemical and physical properties of a special grade of steel, such as L-80 or
C-90, then it is necessary to special order.
2. Std. and P.G. equipment is available with API 8-round or buttress connections.
* Size 4-1/2" through 9-5/8" Std. equipment is furnished with LT&C box and ST&C pin.
* Size 4-1/2" through 9-5/8" P.G. equipment is furnished with LT&C box and pin.
* Size 10-3/4" through 20" equipment is furnished with ST&C box and pin.
3. These dimensions and weight ranges apply to Std. and P.G. 8-round and buttress float equipment only. Other equipment may vary
from the above specifications. Verify dimensions and weight ranges on labels furnished with equipment.
