303 Series 2 Valve Wellbore Float Collar Down Jets Float Shoe Drilling

303 Series 2 Valve Wellbore Float Collar Down Jets Float Shoe Drilling

303 Series 2 Valve Float Collar

Wellbore Float Collar

Down Jets Float Shoe Drilling

Place of Origin:

CHINA

Brand Name:

SWS

Model Number:

303 double valve down jets

Contact Us

Request A Quote
Product Details
Type:
Double Valve
Series:
303
Type 2:
With Spade Nose And Down Jet
Well Condition:
Deviated Or Vertical Well Condition
Product Description

303 SERIES DOUBLE VALVE WITH DOWN JETS FLOAT SHOE​

(STANDARD ) 303 SERIES DOUBLE VALVE WITH DOWN JETS FLOAT SHOE , CEMENTING TOOLS,FLOAT EQUIPMENT, WELL BORE TOOLS



ADVANTAGES AND MAIN FEATURES





1- The series 303 float shoes can be provided with many options to tailor the product for use in moderate to adverse well bore conditons



2- Helical Carbide Coated Blades that extend down the contour of the nose to the drill out diameter of the shoe.



3- Bullet Nose with multiple down jets.



4-single and double valve shoes are available.



5- Eccentric nose with multiple down jets.



6-Helical or straight reaming pads with  or without  carbide coating.



7-Orifice fill float valves.



8-Auto fill values

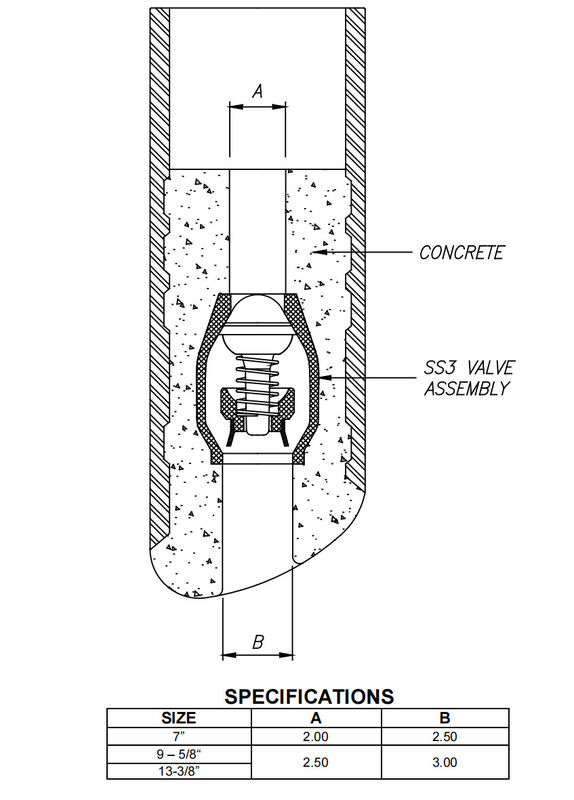

303 Series 2 Valve Wellbore Float Collar Down Jets Float Shoe Drilling 0

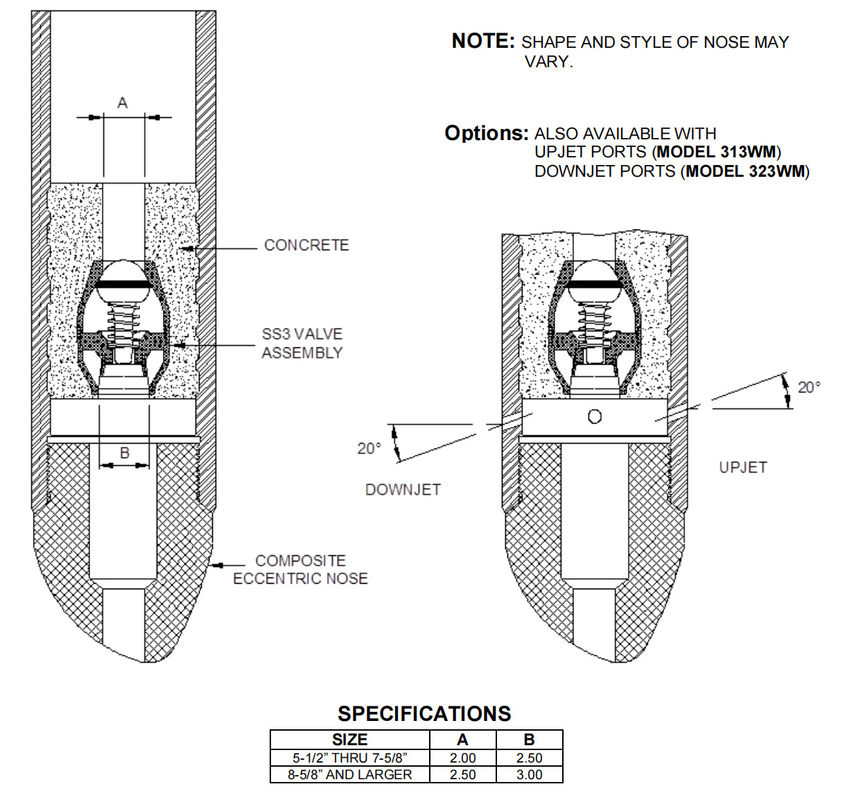

303 Series 2 Valve Wellbore Float Collar Down Jets Float Shoe Drilling 1

Guide shoe, Float shoe& Float collar Dimensions             Casing weight range
Size(casing O.D.)   Type O.D.   Drillout I.D.   Float&Guide shoes   Float collars
in mm   in mm in mm lb/ft kg/m lb/ft kg/m
4-1/2. 114.3 Std 5 127 4 101.6 9.5-13.5 14.15-20.11 9.5-13.5 14.15-20.11
P.G. 5 127 3.895 98.93 11.6-15.1 17.28-22.49 11.6-15.1 14.15-20.11
5 127 Std 5.56 141.22 4.408 111.96 13-18 19.36-26.81 13-18 19.36-26.81
P.G. 5.56 141.22 4.389 111.48 13-18 19.36-26.81 13-18 19.36-26.81
5-1/2. 139.7 Std 6.05 153.67 4.907 124.64 14-23 20.85-34.26 14-23 20.85-34.26
P.G. 6.05 153.67 4.787 121.59 17-23 25.32-34.26 17-23 25.32-34.26
6-5/8. 168.28 Std 7.39 187.1 5.944 150.98 20-32 29.79-47.66 20-32 29.79-47.66
P.G. 7.39 187.1 5.944 150.98 20-32 27.79-47.66 20-32 27.79-47.66
7 177.8 Std 7.66 194.56 6.351 161.32 20-35 29.79-52.13 20-32 29.79-47.66
P.G. 7.66 194.56 6.27 159.26 23-38 34.26-56.6 23-38 34.26-56.6
7-5/8. 193.7 Std 8.5 215.9 6.864 174.35 26.4-47.1 39.32-70.16 26.4-39 39.32-58.09
P.G. 8.5 215.9 6.864 174.35 26.4-47.1 39.32-70.16 26.4-39 39.32-58.09
8-5/8. 219.1 Std 9.63 244.6 7.992 203 24-49 35.75-72.99 24-49 35.75-72.99
P.G. 9.63 244.6 7.845 199.26 32-49 47.66-72.99 32-49 47.66-72.99
9-5/8. 244.5 Std 10.63 270 8.865 225.17 32.3-53.5 48.11-79.69 32.3-53.5 48.11-79.69
P.G. 10.63 270 8.699 220.96 40-71.8 59.58-106.85 40-58.4 59.58-86.99
10-3/4. 273.1 Std 11.75 298.45 10.056 255.42 32.75-65.7 48.78-97.86 32.75-55.5 48.78-82.67
P.G. 11.75 298.45 9.77 248.16 51-71.1 75.96-105.9 51-71 75.96-105.9
11-3/4. 298.5 Std 12.75 323.85 11.02 279.91 42-71 62.56-105.75 42-60 62.56-89.37
P.G. 12.75 323.85 10.77 273.56 54-71 80.43-105.75 54-71.1 80.43-105.81
13-3/8. 339.7 Std 14.38 365.25 12.579 319.51 48-72 71.5-107.24 48-72 71.5-107.24
P.G. 14.38 365.25 12.579 319.51 48-86 71.5-128.1 48-72 71.5-107.24
16 406.4 Std 17 431.8 15.124 384.15 65-109 96.82-162.36 65-97 96.82-144.36
18-5/8. 473.1 Std 20 508 17.755 450.98 87.5-139 130.33-206.85 87.5-106 130.33-157.75
20 508 Std 21 533.4 19.125 485.78 94-133 140.01-198.1 94-106.5 140.01-158.63

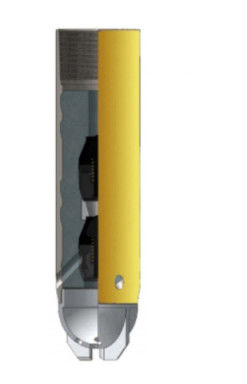

303 Series 2 Valve Wellbore Float Collar Down Jets Float Shoe Drilling 2303 Series 2 Valve Wellbore Float Collar Down Jets Float Shoe Drilling 3
