Mechanical Stage Cementing Collar 352 Series Multistage Cementing

Name: Mechanical Stage Cementing Collar 352 Series Multistage Cementing
Brand: Jiangsu Service Petroleum Technology Co., Ltd
SKU: hydraulic
Price: 11,271.07 USD
Availability: InStock

Basic Properties

Place of Origin: CHINA

Brand Name: SWS

Model Number: hydraulic

Trading Properties

Minimum Order Quantity: MOQ as per type requirements

Price: Details pls contact our staff

Payment Terms: T/T or LC irrevocable In sight

Supply Ability: As requirement

Multi Stage Cementing Collar

API Two Stage Cementing

API Multi Stage Cementing

Specifications

Type:	Hydraulic	Ability:	Domestic China Only
Size range:	4-1/2''~7''	Color:	As Required
Series:	352 Series
High Light:	Mechanical Stage Cementing Collar , 352 Series Multistage Cementing , Multi Stage Cementing Collar

Product Description

API Standard Cementing Tools Hydraulic/Mechanical Stage Cementing Collar, Multi Stage Cementing Collar

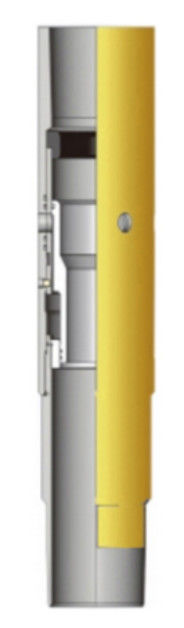

This page is going to clarify one of them : Hydraulic stage collar

Hydraulic collar advantage and features

1-It can only manufactured by SWS in domestic china as one unique tech.

2- It can be used in horizontal and highly deviated well bores and applications where opening of the stage collar after displacement of the first

stage cementing is required.

3-The opening pressure can be changed to allow opening of the tool through a wide range of pressures.

4-The opening free fall trip device is optionally available for use if the stage collar is opened mechanically

5- When premium thread are using DRK , we recommend to use a landing collar to receive the 1st stage latch down wiper plug.

size	weight range	maximum od	maximum drill out id	overall length
in(mm)	lb/ft(wall mm)	in(mm)	in(mm)	in(mm)
4-1/2(114.3)	9.5 to11.6(5.2 to 6.35) /11.6 to 15.1(6.35 to 8.56)	5.562(141.3)	3.975(101.0)/3.890(98.80)	25.0(635)
5-1/2(139.7)	14.0(5.69)/15.5 to 17.0(6.99 to 7.72)/ 17.0 to 23.0(7.72 to 10.54)	6.63(168.4)	4.897(124.4)/4.835(122.8)/4.77(121.3)	25.2(641)
6-5/8(168.3)	17.0(6.22)/24.0 to 32.0 (8.94 to 12.07)	7.88(200)	6.0(152.0)/5.625(142.8)	26(662)
7(177.8)	23.0 to 26.0 (8.05 to 9.19)/26.0 to 32.0(9.19 to 11.51)	8.15(207)	6.251(158.7)/6.161(156.5)	26(662)
-	-	-	-	-
9-5/8(244.5)	32.3 to 40.0(48.1 to 59.5)/40.0 to 47.0(59.5 to 69.9)/43.5 to 53.5(64.7 to 79.6)	11.25(282.6)	8.855(224.9)/8.689(220.7)/8.609(218.7)	28.9(732)
10-3/4(273.1)	32.75 to 40.5(48.1 to 59.5)/40.0 to 47.0(59.5 to 69.9)/43.5 to 53.5(64.7 to 79.6)	12.0(305.0)	8.855(224.9)/8.689(220.7)/8.609(218.7)	30(761)
13-3/8 (340)	61.0to 72.0(90.78 to 107.15)	15(381)	12.25(311.1)	35.13(892.3)
