Place of Origin:
CHINA
Brand Name:
SWS
Contact Us

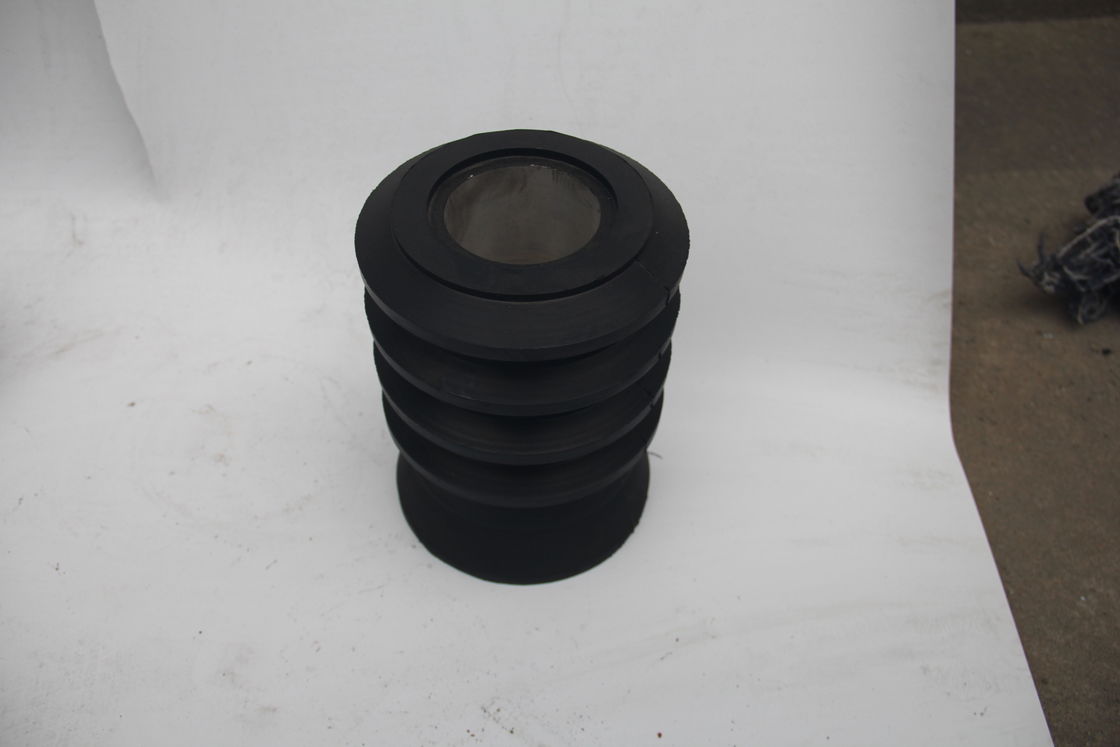

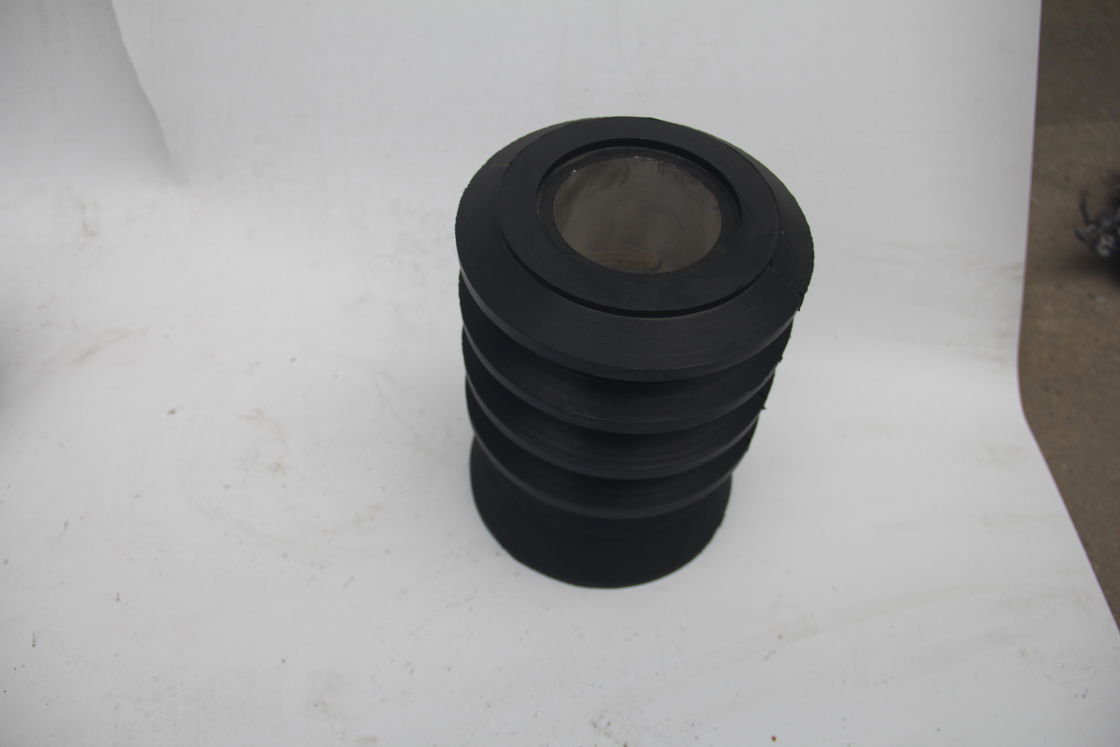

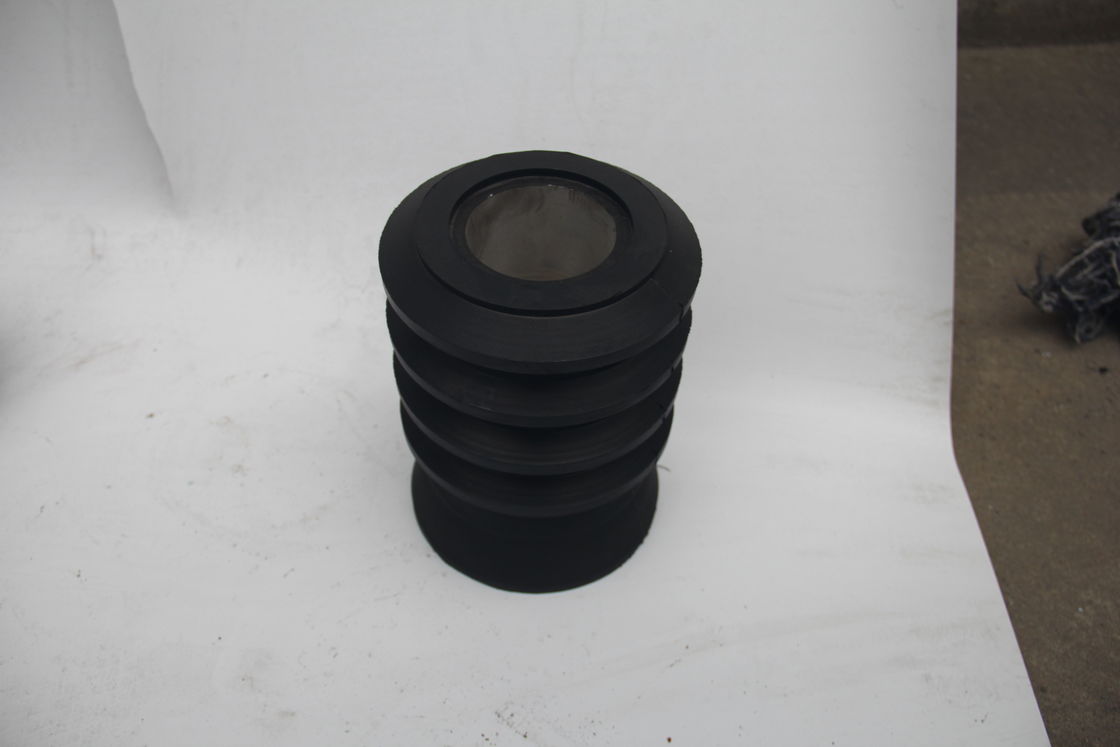

CEMENTING PLUGS
CEMENTING PLUG, CEMENTING TOOLS, CASING BUOYANCY SYSTEM PART, TOP OR BOTTOM , ANTI ROTATION
ADVANTAGES AND MAIN FEATURES
1- Cementing plugs are PDC drillable and are available in sizes from 114.3 to 339.7mm.
2- In conjunction with the non rotating plugs , a non rotating receiver plate must be ordered for the landing the plug in the top of the shoe or collar.
3- The rubber elastomer on the plugs are for use with water based drilling mud or oil based dulling mud.
4-special plugs for tapered casing strings and large diameter plugs for casing sizes over than 339mm are available.
362 SERIES PLASTIC CORED TOP PLUG
364 SERIES PLASTIC CORED NON ROTATING TOP PLUG
362 SERIES PLASTIC CORED TOP PLUG
366 SERIES SPECIAL BOTTOM PLUG
365 SERIES PLASTIC CORED NON ROTATING BOTTOM PLUG
363 SERIES PLASTIC CORED BOTTOM PLUG
| 适用套管规格 suit casing size | 最大外径 Max OD /mm | 胶塞长度 L /mm |
| 3-1/2" | 80 | 106 |
| 4-1/2" | 109 | 230 |
| 5" | 120 | 230 |
| 5-1/2" | 133.5 | 230 |
| 6-5/8" | 162 | 230 |
| 7" | 170 | 230 |
| 7-5/8" | 184 | 230 |
| 9-5/8" | 238 | 280 |
| 10-3/4" | 265 | 260 |
| 12-3/8" | 314 | 320 |
| 13-3/8" | 332 | 320 |
| 14-3/8" | 355 | 320 |
