5 1/2 PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings

5 1/2 PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings

Gas Well Safe Cement Plug

Tapered Casing Strings Cement Plug

Oil Based Drilling Mud Cement Plug

Place of Origin:

Jiangsu China

Brand Name:

SWS

Certification:

API 5CT

Contact Us

Request A Quote
Product Details
Standard:
API
Product Use:
Well Cementing
Specification:
5 1/2''
Style:
Bottom Plug
Length Range:
114.3-339.7mm
O.D(mm):
139.7
W.T(mm):
6.2
Material:
Rubber
Applicable Slurries:
Water-based Or Oil-based Drilling Mud
Product Description

COMPANY PROFILE

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 0

Jiangsu Service Petroleum Technology Co., Ltd. is committed to researching and supplying high-level petroleum downhole tools and drilling equipments, and has obtained the certificates of API Q1, API 5CT, ISO9001 quality system certification, 14001 environmental system certification, and 18001 occupational health system certification.

With over 15 years of manufacturing experience and successful collaborations with renowned oil extraction companies such as China National Petroleum Corporation, Sinopec, Shell, Mobil, and Husky Energy, we have established a reputation for delivering oil casing accessories that surpass industry standards, meeting the demanding requirements of challenging oilfield operations.

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 1

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 2

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 35 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 45 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 55 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 65 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 75 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 8

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 9













Products Description

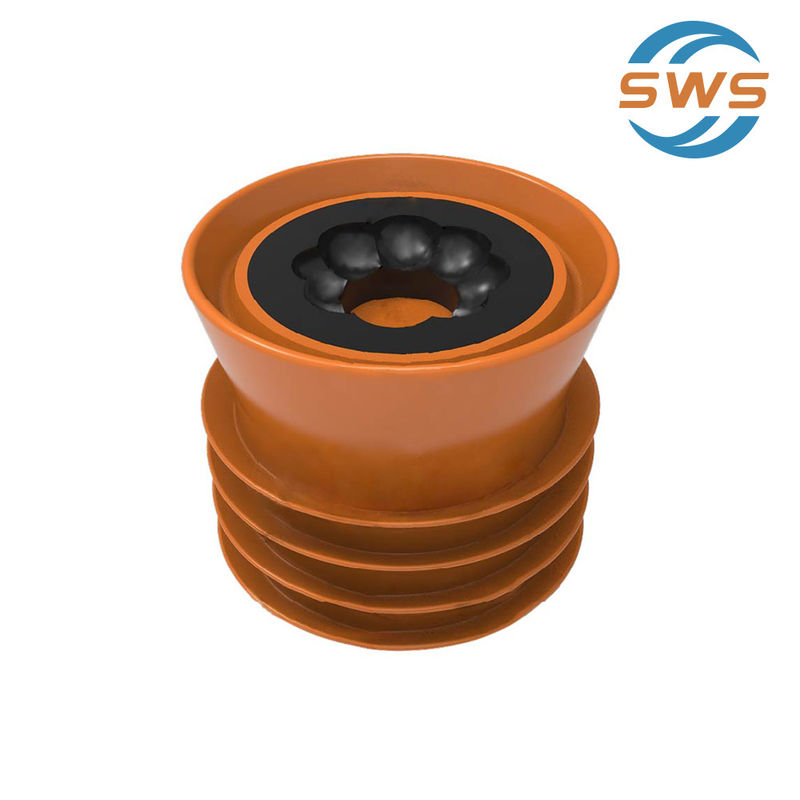

Cementing Plugs are used during primary cementing operations to wipe out dispersed fluid including drilling fluid and cement from the inner diameter of casing, therefore minimizes the contamination of cement slurry.

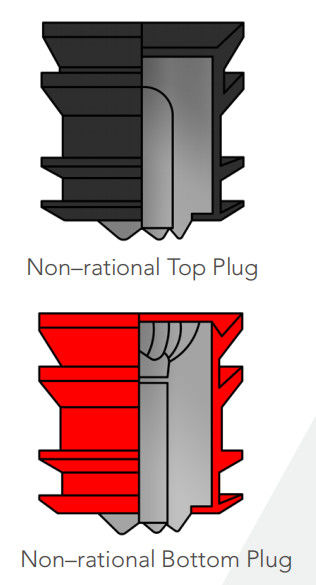

Service Can Provide PDC drillable plugs, In conjunction with the non rotating plugs, a non rotating receiver plate must be ordered for the landing the plug in the shoe or collar
The rubber elastomer on the plugs are for use with water or oil based drilling mud.
Sepcial plugs for tapered casing strings and large diameter plugs for casing siezs larger than 339mm are available.



Casing size(in) Casing weight range Wiper Fin O.D
mm in mm in
4 1/2" 14.14-17.26 9.50-11.60 110 4.331
5" 17.11-35.86 11.50-24.10 122 4.803
5 1/2" 20.83-39.88 14.00-26.80 135 5.315
7" 25.30-56.55 17.00-38.00 170 6.693
7 5/8" 35.72-63.69 24.00-42.00 185 7.283
9 5/8" 53.57-79.62 36.00-53.50 235 9.252
10 3/4" 60.27-97.77 40.50-65.70 260 10.236
13 3/8" 71.43-107.15 48.00-72.00 333 13.11
20" 139.89-197.93 94.00-133.00 498 19.606



5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 105 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 11

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 12

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 13

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 14

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 15

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 16

5 1/2  PDC Drillable Cement Plug for Oil&Gas Well Safe Cementing with Oil Based Drilling Mud for Tapered Casing Strings 17

FAQ


Q1,When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get theprice, please tell us in your email so that we will regard you inquiry priority.

Q2,Could I have prices of your products?
A:Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

Q3,Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger quantity orders.

Q4,Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5,What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
